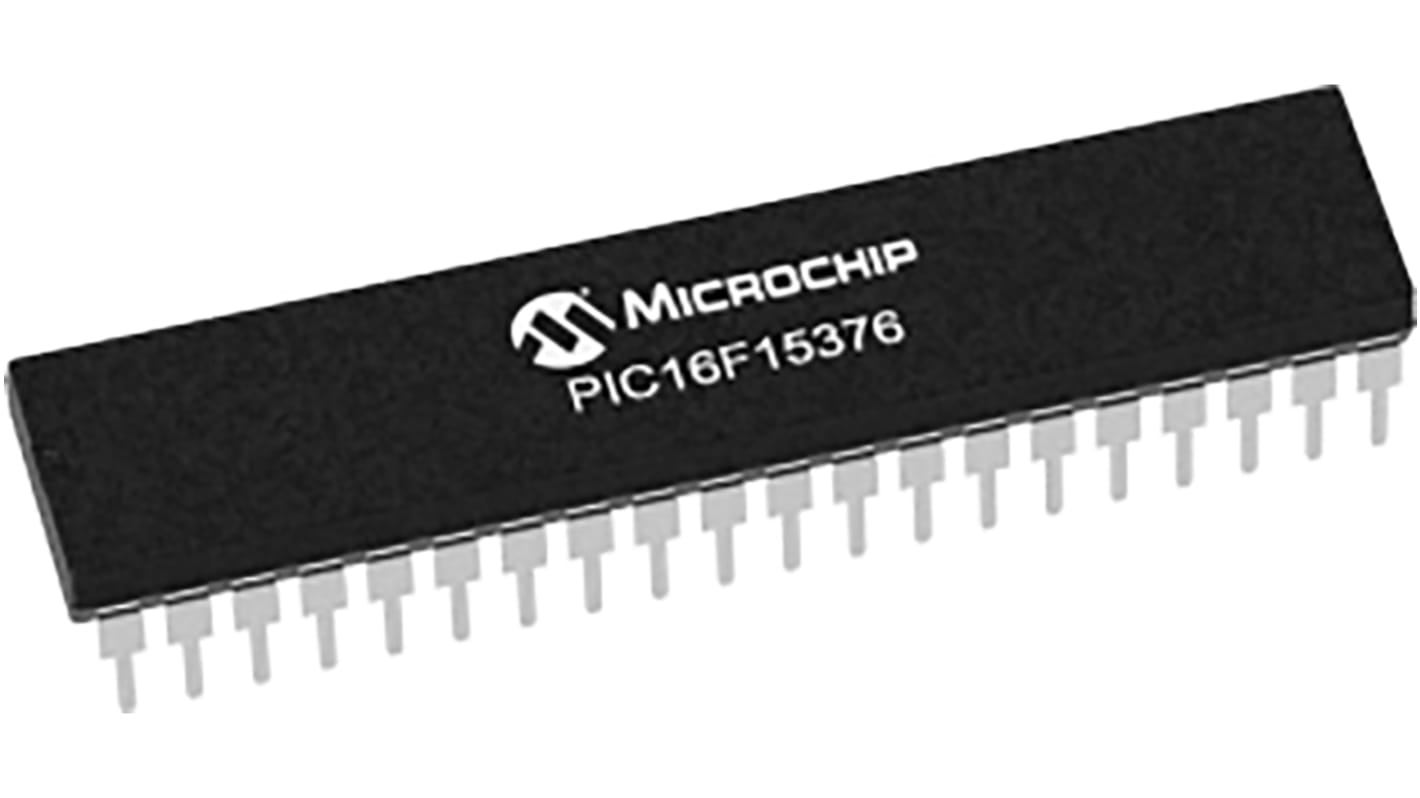

Microchip Technology PIC16F15376-I/P, 8bit 8 bit CPU Microcontroller, 32MHz, 28 kB Flash, 40-Pin PDIP
- RS Stock No. 177-2045
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC16F15376-I/P
- ผู้ผลิต / Manufacturer Microchip
PIC16(L)F153XX 8-bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals (CIPs) and communication combined with eXtreme Low-Power (XLP) for a wide range of low-power applications.
Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
eXtreme Low Power (XLP)
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
4x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
4x Configurable Logic Controller (CLC)
24 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
1x 8-bit Timers (TMR0/TMR2)
2x 16-bit Timer (TMR1)
Window Watchdog Timer (WWDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF15355 (1.8V – 3.6V)
PIC16F15355 (2.3V – 5.5V)
| คุณสมบัติ | Value |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 28 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 1 |
| ADC Channels | 35 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Number of I2C Channels | 2 |
| Number of Timers | 2 |
| Length | 53.09mm |
| Number of UART Channels | 2 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (4 x 10 bit) |
| PWM Resolution | 10bit |
| ADCs | 1 (35 x 10 bit) |
| Width | 14.73mm |
| ADC Resolution | 10bit |
| Height | 4.83mm |
| Timer Resolution | 8 bit, 16 bit |
| PWM Channels | 4 |
| Timers | 1 (1 x 8 bit), 1 (2 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.09 x 0.58 x 0.19in |
| Number of USART Channels | 2 |
