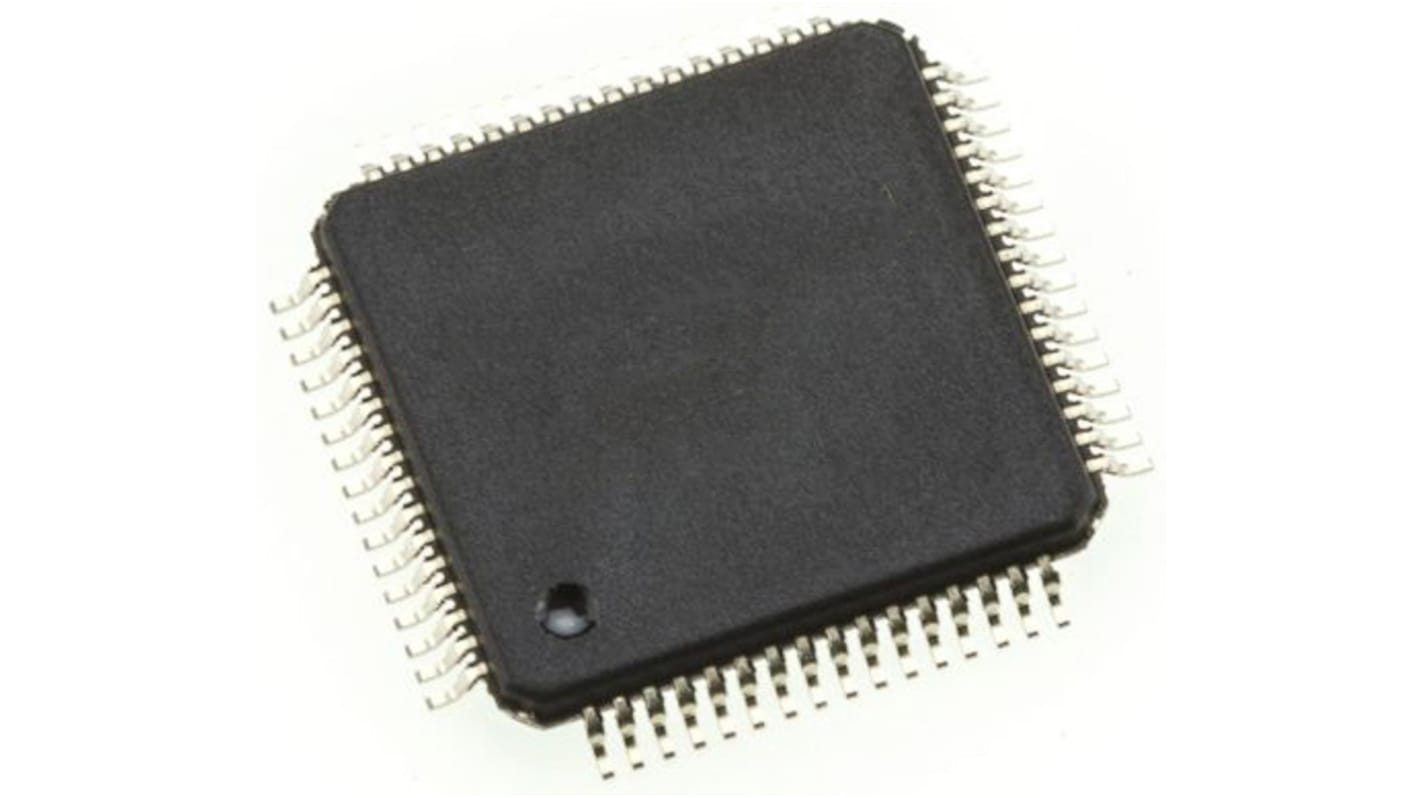

Cypress Semiconductor CY8C4247AZI-M485, 32bit ARM Cortex M0 Microcontroller, 48MHz, 128 kB Flash, 64-Pin TQFP
- RS Stock No. 177-1182
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CY8C4247AZI-M485
- ผู้ผลิต / Manufacturer Cypress Semiconductor
Cypress Semiconductor Microcontroller
The Cypress Semiconductor is a 4200 family type, TQFP package, surface mount, 64-pin ARM Cortex M0 32-bit microcontroller. Its maximum voltage rating of 5.5V. It combines programmable and reconfigurable analogue and digital blocks with flexible automatic routing. The microcontroller supports cap sense sigma-delta (CSD) providing best-in-class signal-to-noise ratio (SNR) and water tolerance, cypress-supplied software component makes capacitive sensing design easy and automatic hardware tuning.
Features and Benefits
• 1xcomparators
• 4x Configurable Logic Controller (CLC)
• 5 Channel 10-bit ADC with voltage reference
• 5-bit Digital to analogue Converter (DAC)
• Complementary Waveform Generator (CWG)
• Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
• Enhanced power-ON/OFF-reset
• EXtreme Low Power (XLP)
• Flash Program Memory with self-read/write capability
• IDLE and DOZE low power modes
• In Circuit Serial Programming (ICSP)
• Low-Power Brown-Out Reset (LPBOR)
• Numerically Controlled Oscillator (NCO)
• Operating temperature ranges between -40°C and 105°C
• Peripheral Module Disable (PMD)
• Peripheral Pin Select (PPS)
• Programmable Brown-Out Reset (BOR)
• Window Watchdog Timer (WWDT)
Applications
• Home automation
• Industries
| คุณสมบัติ | Value |
|---|---|
| Family Name | CY8C4200 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 1 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of UART Channels | 4 |
| Length | 10mm |
| ADCs | 1 (1 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.4mm |
| Number of LIN Channels | 1 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | Thumb-2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Dimensions | 10 x 10 x 1.4mm |
| Timers | 1 (8 x 16 bit) |
| Number of I2C Channels | 4 |
| Width | 10mm |
| PWM Channels | 8 |
| Number of CAN Channels | 2 |
| Number of Timers | 8 |
