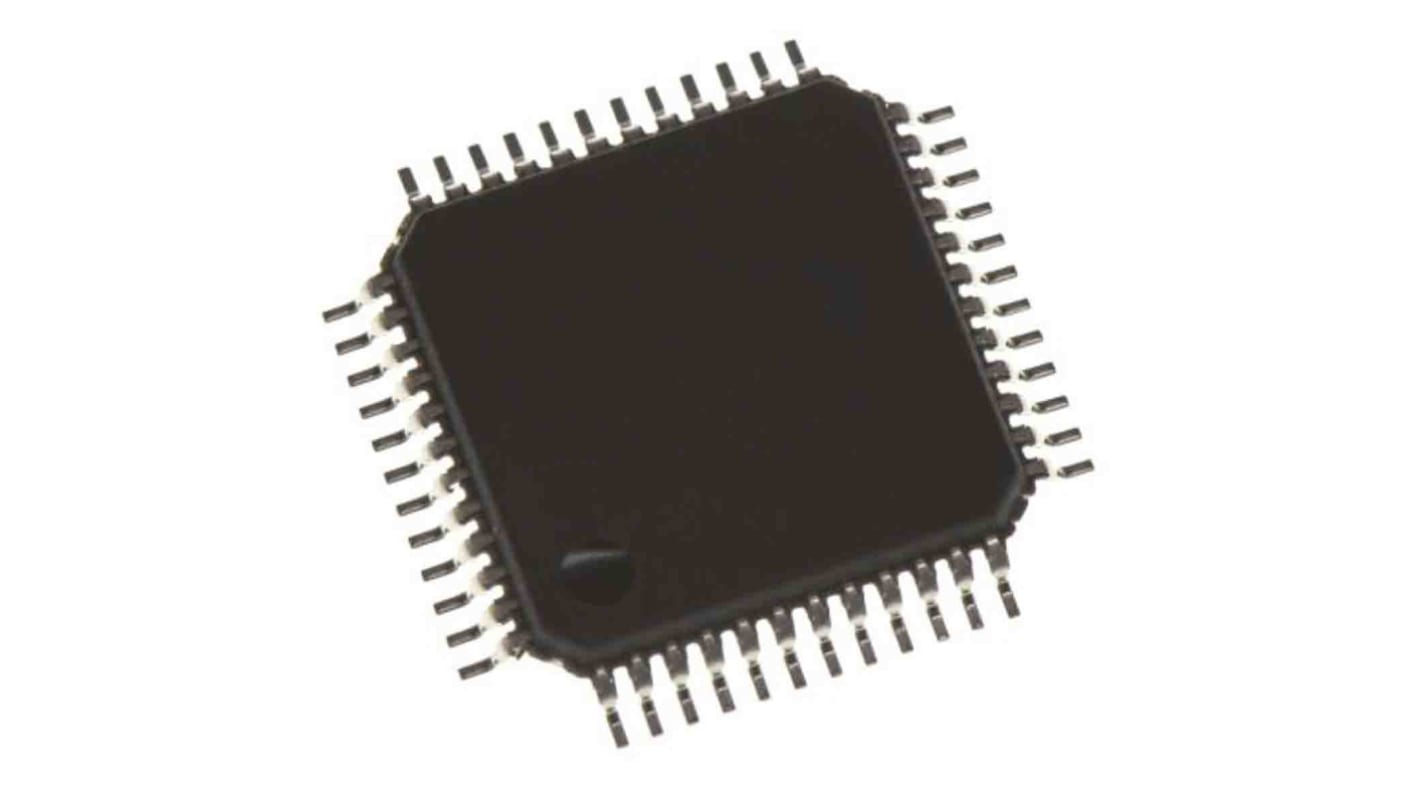

Cypress Semiconductor CY8C4045AZI-S413, 32bit ARM Cortex M0 Microcontroller, 48MHz, 32 kB Flash, 48-Pin TQFP

  • RS Stock No. 177-1122
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CY8C4045AZI-S413
  • ผู้ผลิต / Manufacturer Cypress Semiconductor
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

PSoC® 4 is a scalable and reconfigurable platform architecture for a family of mixed-signal programmable embedded system controllers with an ARM® Cortex™-M0 CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoC 4100 product family, based on this platform, is a combination of a microcontroller with digital programmable logic, high-performance analog-to-digital conversion, opamps with Comparator mode, and standard communication and timing peripherals.

32-bit MCU Sub-system:
24-MHz ARM Cortex-M0 CPU with single-cycle multiply
Up to 32 kB of flash with Read Accelerator
Up to 4 kB of SRAM

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name CY8C4000
Package Type TQFP
Mounting Type Surface Mount
Pin Count 48
Device Core ARM Cortex M0
Data Bus Width 32bit
Program Memory Size 32 kB
Maximum Frequency 48
RAM Size 4 kB
USB Channels 1
Number of PWM Units 1
ADC Channels 1
Number of SPI Channels 2
Typical Operating Supply Voltage 1.8 → 5.5 V
Number of LIN Channels 1
Number of ADC Units 1
Width 7mm
ADCs 1 (1 x 10 bit)
Number of Timers 5
Pulse Width Modulation 1 (5 x 16 bit)
Number of UART Channels 2
ADC Resolution 10bit
Timer Resolution 16bit
Minimum Operating Temperature -40 °C
Number of I2C Channels 2
PWM Channels 5
Height 1.4mm
Instruction Set Architecture Thumb-2
PWM Resolution 16bit
Dimensions 7 x 7 x 1.4mm
Length 7mm
Program Memory Type Flash
Maximum Operating Temperature +85 °C
250 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tray of 250)
THB 98.51
(exc. VAT)
THB 105.41
(inc. VAT)
Units
Per unit
Per Tray*
250 +
THB98.51
THB24,627.50
*ตัวบ่งบอกราคา / price indicative
