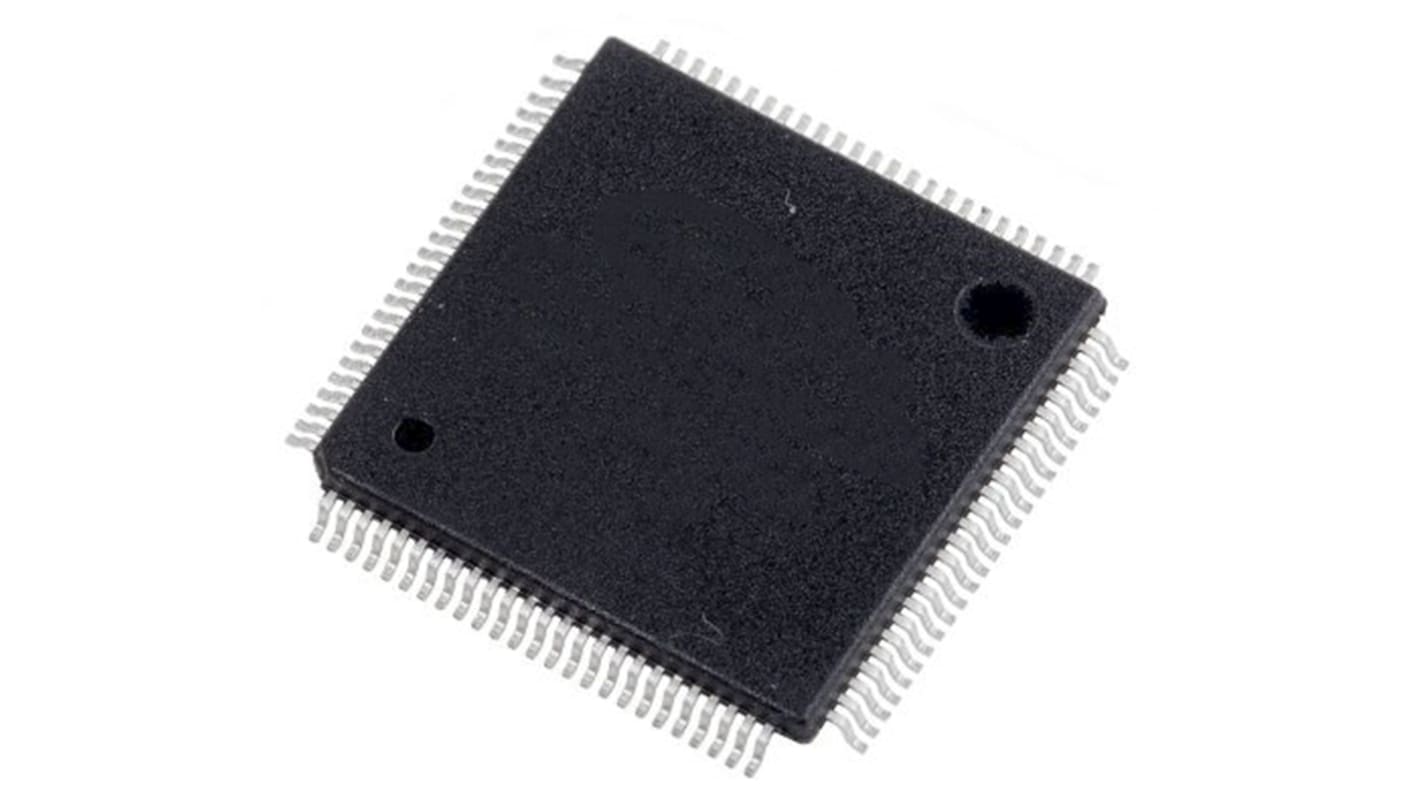

STMicroelectronics STM32L4R5VIT6, 32bit ARM Cortex M4 Microcontroller, STM32L4+, 120MHz, 2 MB Flash, 100-Pin LQFP
- RS Stock No.:
- 175-0755
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32L4R5VIT6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 28/04/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB656.61
(exc. VAT)
THB702.57
(inc. VAT)
| Units | Per unit |
| 1 - 22 | THB656.61 |
| 23 - 44 | THB640.19 |
| 45 + | THB630.33 |
- RS Stock No.:
- 175-0755
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32L4R5VIT6
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
รายละเอียดสินค้า / Product Details
The STM32L4R5xx, STM32L4R7xx and STM32L4R9xx devices are an ultra-low-power microcontrollers family (STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz.
The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.
The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | STM32L4+ |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 640 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 x 16 bit |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of CAN Channels | 1 |
| Number of UART Channels | 6 |
| Number of I2C Channels | 4 |
| Number of USART Channels | 3 |
| Length | 14.2mm |
| ADCs | 16 x 12 bit |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 14.2 x 14.2 x 1.45mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 2 (6 x 16 bit) |
| Height | 1.45mm |
| Width | 14.2mm |
| Instruction Set Architecture | DSP, RISC |
