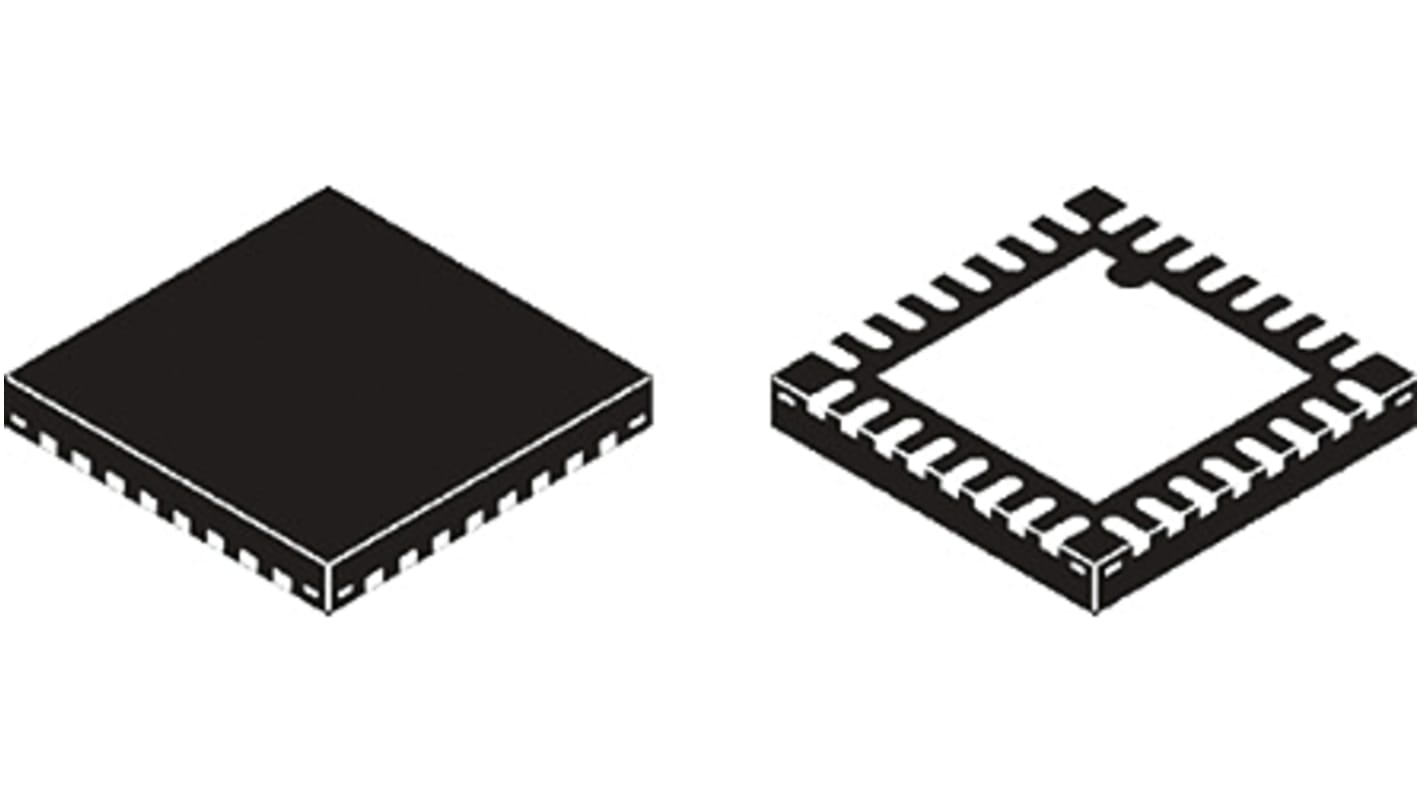

NXP MKL26Z128VFM4, 32bit ARM Cortex M0+ Microcontroller, 48MHz, 128 kB Flash, 32-Pin QFN

  • RS Stock No. 169-7316
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MKL26Z128VFM4
  • ผู้ผลิต / Manufacturer NXP
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
รายละเอียดสินค้า / Product Details

Kinetis L Series Microcontrollers

Kinetis L series microcontrollers combine the exceptional energy-efficiency and ease-of-use of the ARM Cortex-M0+ processor core with the performance, peripheral sets and scalability of the Kinetis 32-bit range. Kinetis L series microcontrollers are also hardware and software compatible with the Cortex-M4-based Kinetis K series, providing a scalable migration path to more performance, memory and feature integration.

The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name Kinetis L
Package Type QFN
Mounting Type Surface Mount
Pin Count 32
Device Core ARM Cortex M0+
Data Bus Width 32bit
Program Memory Size 128 kB
Maximum Frequency 48MHz
RAM Size 16 kB
USB Channels 1
Number of PWM Units 2
Number of SPI Channels 2
Typical Operating Supply Voltage 1.71 → 3.6 V
Pulse Width Modulation 2 (10 Channel)
Number of UART Channels 3
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +105 °C
Height 1mm
PWM Channels 10
Instruction Set Architecture RISC
Timers 6 x 16 bit
Width 5mm
ADCs 1 x 16 bit
Timer Resolution 16bit
Number of ADC Units 1
ADC Resolution 16bit
Number of Timers 6
Length 5mm
Dimensions 5 x 5 x 1mm
Program Memory Type Flash
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 30/01/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tray of 490)
THB 107.854
(exc. VAT)
THB 115.404
(inc. VAT)
Units
Per unit
Per Tray*
490 +
THB107.854
THB52,848.46
*ตัวบ่งบอกราคา / price indicative
