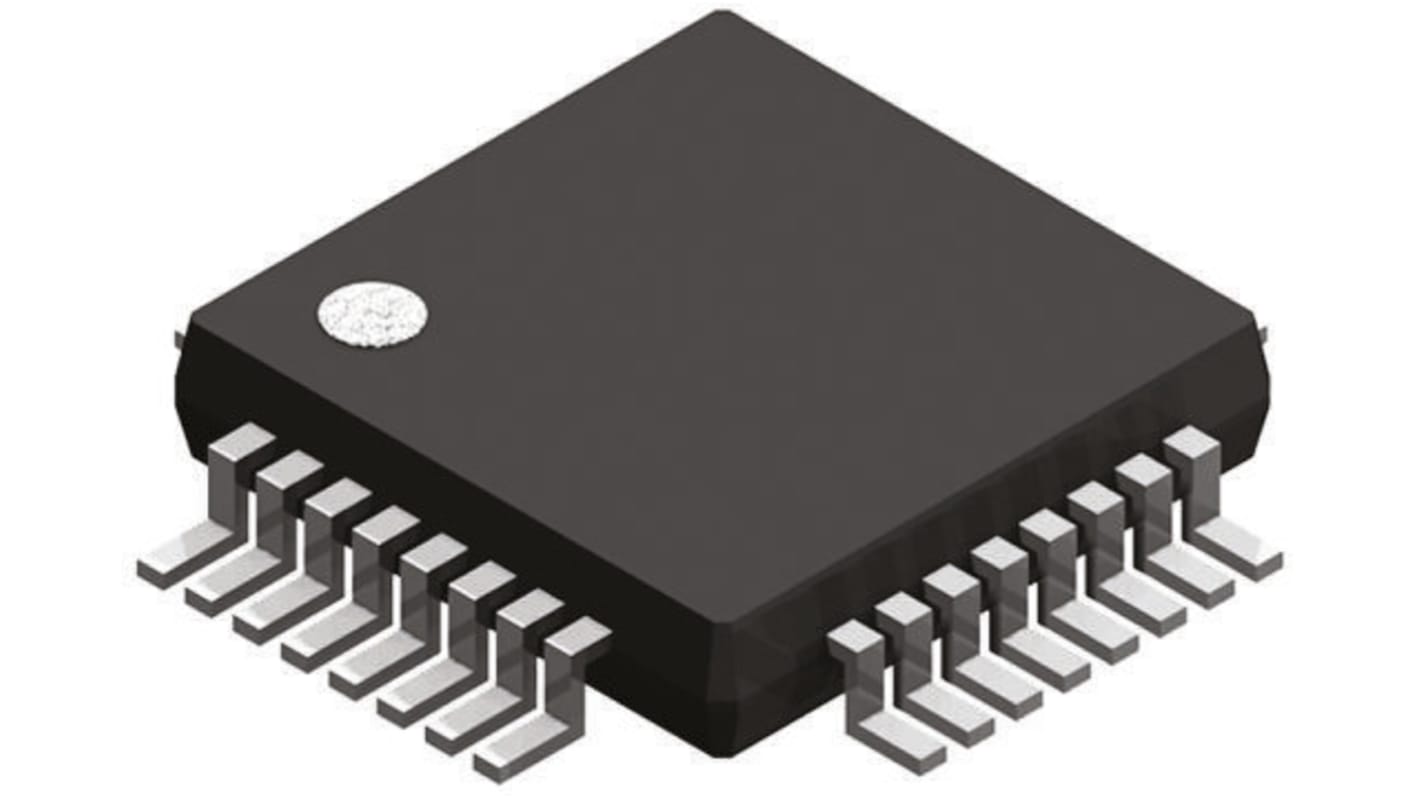

Silicon Labs C8051F582-IQ, 8bit 8051 Microcontroller, C8051F, 24MHz, 128 kB Flash, 32-Pin QFP
- RS Stock No.:
- 168-9915
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- C8051F582-IQ
- ผู้ผลิต / Manufacturer:
- Silicon Labs
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 15/10/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 250)
THB412.774
(exc. VAT)
THB441.668
(inc. VAT)
| Units | Per unit | Per Tray* |
| 250 - 250 | THB412.774 | THB103,193.50 |
| 500 - 750 | THB403.693 | THB100,923.25 |
| 1000 + | THB395.025 | THB98,756.25 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 168-9915
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- C8051F582-IQ
- ผู้ผลิต / Manufacturer:
- Silicon Labs
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
รายละเอียดสินค้า / Product Details
C8051F58x/59x Microcontrollers, Silicon Labs
The Silicon Labs C8051F58x/59x automotive and industrial microcontroller (MCU) devices are ideal for applications needing significant performance (50 MIPS) and integration (12-bit ADC) into a constrained space. Available in small form factor packages; 32-pin QFN/QFP (5 x 5 mm), 40-pin QFN (6 x 6 mm) and 48-pin QFN/QFP (7 x 7 mm).
Pin-for-pin compatibility exists between the C8051F58x/59x and C8051F55x/56x/57x series and between the C8051F50x/1x and C8051F54x series.
On-chip Voltage Regulator, Power-On Reset, VDD monitor, Watchdog Timer and clock oscillator combine to make these microcontrollers standalone System-on-a-Chip solutions.
Flash memory can be reprogrammed even when in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. Using the software you have full control over all peripherals which you can shut down to save power.
They are specified for 2.7 V to 3.6 V operation over the automotive and industrial temperature range (-40°C to +125°C).
Pin-for-pin compatibility exists between the C8051F58x/59x and C8051F55x/56x/57x series and between the C8051F50x/1x and C8051F54x series.
On-chip Voltage Regulator, Power-On Reset, VDD monitor, Watchdog Timer and clock oscillator combine to make these microcontrollers standalone System-on-a-Chip solutions.
Flash memory can be reprogrammed even when in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. Using the software you have full control over all peripherals which you can shut down to save power.
They are specified for 2.7 V to 3.6 V operation over the automotive and industrial temperature range (-40°C to +125°C).
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | C8051F |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 8.448 kB |
| USB Channels | 0 |
| Number of PWM Units | 4 x 16 bit |
| Number of SPI Channels | 1 |
| Number of UART Channels | 2 |
| Number of I2C Channels | 1 |
| Number of CAN Channels | 1 |
| Number of USART Channels | 0 |
| Typical Operating Supply Voltage | 1.8 → 5.25 V |
| Width | 7mm |
| Number of LIN Channels | 1 |
| Height | 1.45mm |
| Program Memory Type | Flash |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| ADCs | 32 x 12 bit |
| Length | 7mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Harvard |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Pulse Width Modulation | 2 (16 bit), 2 (8 to 11 bit) |
| Dimensions | 7 x 7 x 1.45mm |
