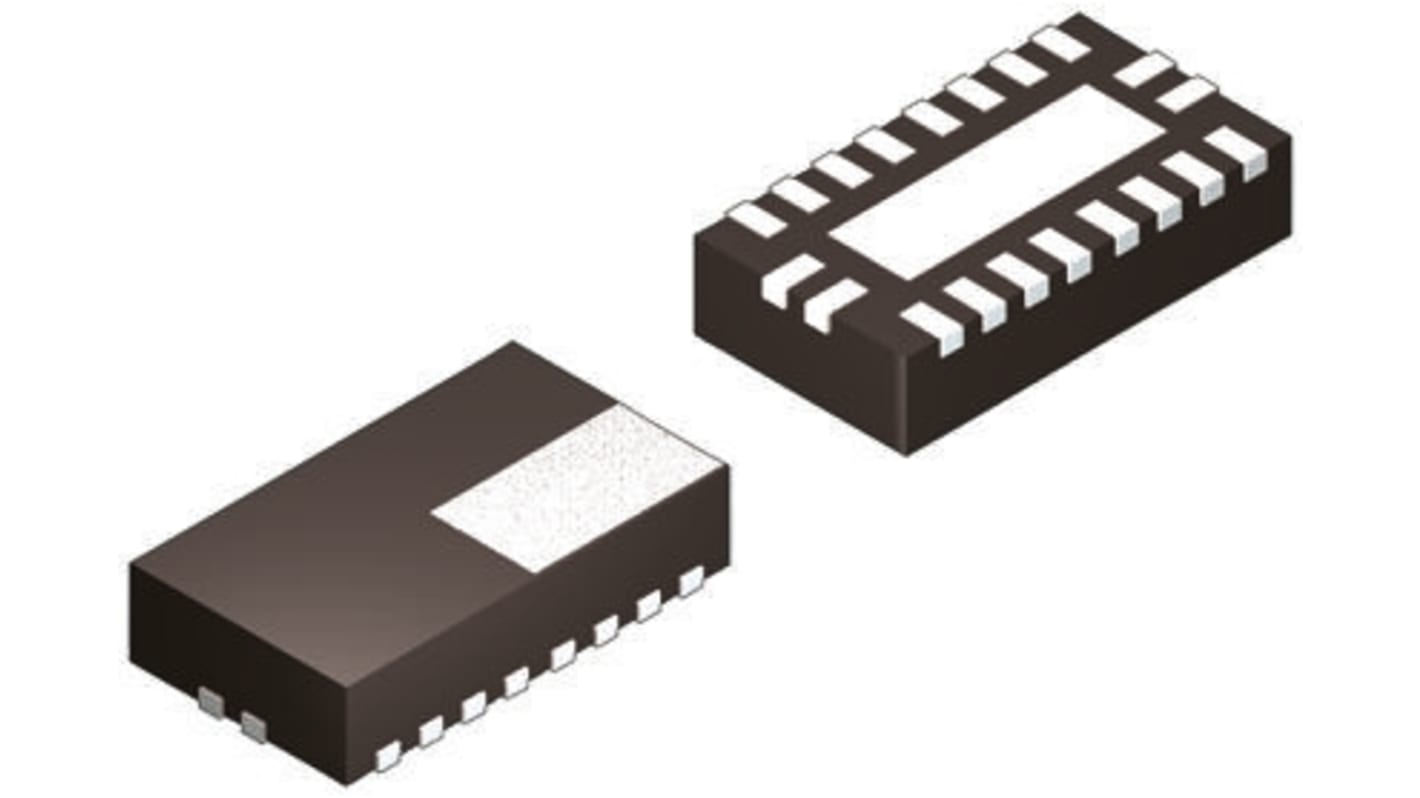

STMicroelectronics STM8L101F2U6ATR, 8bit STM8 Microcontroller, STM8L, 16MHz, 4 kB Flash, 20-Pin UFQFPN
- RS Stock No.:
- 168-7281
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8L101F2U6ATR
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สามารถสั่งจองล่วงหน้าได้
เพิ่ม / Added
ราคา / Price Each (On a Reel of 3000)
THB32.381
(exc. VAT)
THB34.648
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | THB32.381 | THB97,143.00 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 168-7281
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8L101F2U6ATR
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- PH
รายละเอียดสินค้า / Product Details
STM8L Series Ultra-Low Power 8-Bit Microcontrollers, STMicroelectronics
The STM8L is based on the 8-bit STM8 core
Ultra-low power consumption with the lowest power mode of 0.35μA
STM8L101: Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz
STM8L151/152: Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz
Ultra-low power consumption with the lowest power mode of 0.35μA
STM8L101: Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz
STM8L151/152: Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz
STM8 8-Bit Microcontrollers, STMicroelectronics
The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Family Name | STM8L |
| Package Type | UFQFPN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 4 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1.5 kB |
| USB Channels | 0 |
| Number of PWM Units | 1(2 x 16 bit) |
| Number of SPI Channels | 1 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of UART Channels | 0 |
| Number of USART Channels | 1 |
| Number of Ethernet Channels | 0 |
| Dimensions | 3.1 x 3.1 x 0.55mm |
| Length | 3.1mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 1(2 x 16 bit) |
| Program Memory Type | Flash |
| Number of LIN Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Number of PCI Channels | 0 |
| Height | 0.55mm |
| Width | 3.1mm |
| Instruction Set Architecture | CISC |
