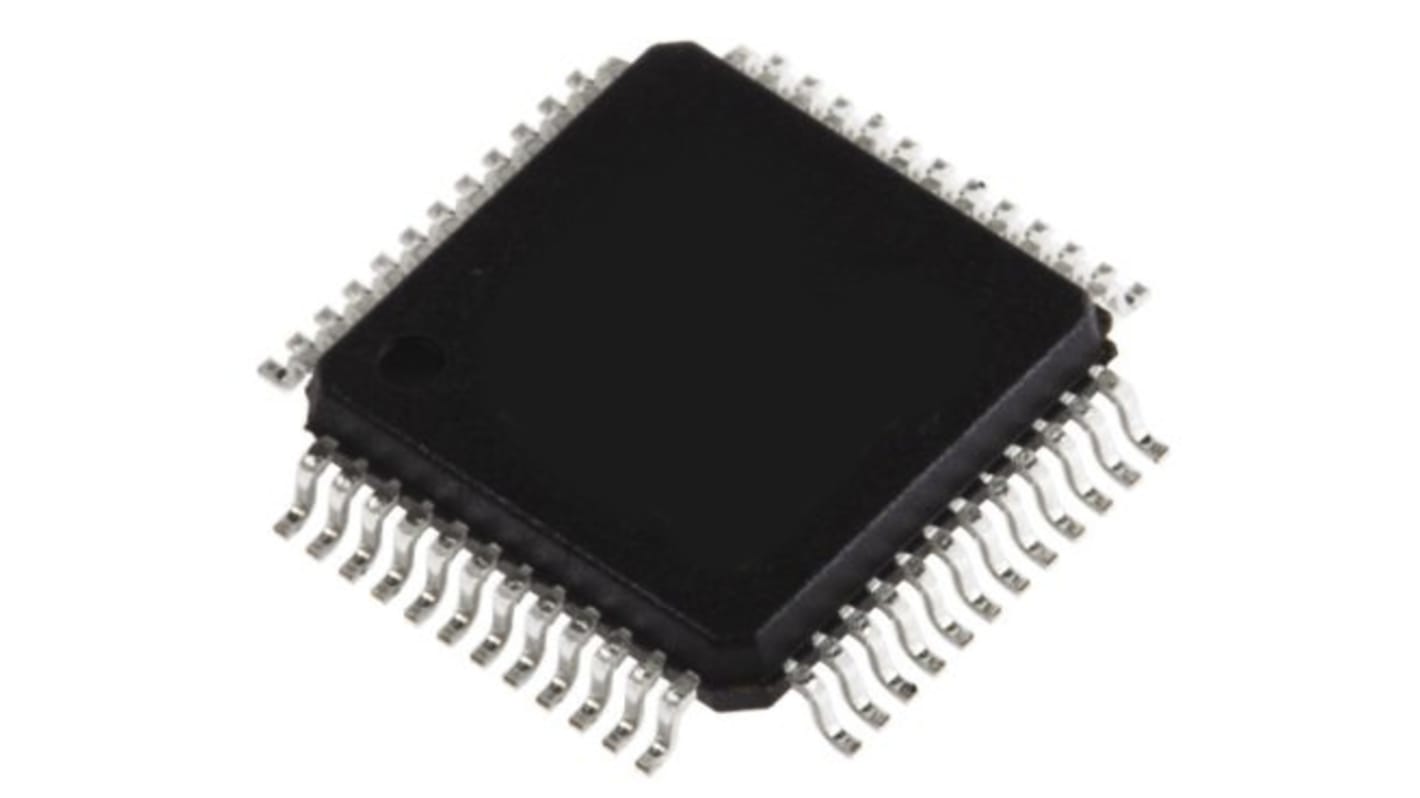

STMicroelectronics STM32F103C8T6, 32bit ARM Cortex M3 Microcontroller, 72MHz, 64 kB Flash, 48-Pin LQFP

  • RS Stock No. 102-3545
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. STM32F103C8T6
  • ผู้ผลิต / Manufacturer STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

STM32F103 Series Microcontrollers, STMicroelectronics

STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.

32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C

STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.

Benefits
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name STM32F
Package Type LQFP
Mounting Type Surface Mount
Pin Count 48
Device Core ARM Cortex M3
Data Bus Width 32bit
Program Memory Size 64 kB
Maximum Frequency 72MHz
RAM Size 20 kB
USB Channels 1 x Device
Number of PWM Units 1
ADC Channels 10
Number of SPI Channels 2
Typical Operating Supply Voltage 2 → 3.6 V
Number of Timers 3
Number of CAN Channels 1
ADC Resolution 12bit
Timer Resolution 16bit
Timers 3 x 16 bit
Minimum Operating Temperature -40 °C
Program Memory Type Flash
Width 7.2mm
ADCs 2 (10 x 12 bit)
Number of USART Channels 3
Number of ADC Units 2
PWM Resolution 16bit
Instruction Set Architecture RISC
Number of I2C Channels 2
Height 1.45mm
Dimensions 7.2 x 7.2 x 1.45mm
Length 7.2mm
Pulse Width Modulation 1 (16 bit)
Maximum Operating Temperature +85 °C
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 10/03/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tray of 250)
THB 134.51
(exc. VAT)
THB 143.93
(inc. VAT)
Units
Per unit
Per Tray*
250 - 250
THB134.51
THB33,627.50
500 - 750
THB127.908
THB31,977.00
1000 - 2250
THB116.82
THB29,205.00
2500 - 4750
THB115.964
THB28,991.00
5000 +
THB114.816
THB28,704.00
*ตัวบ่งบอกราคา / price indicative
