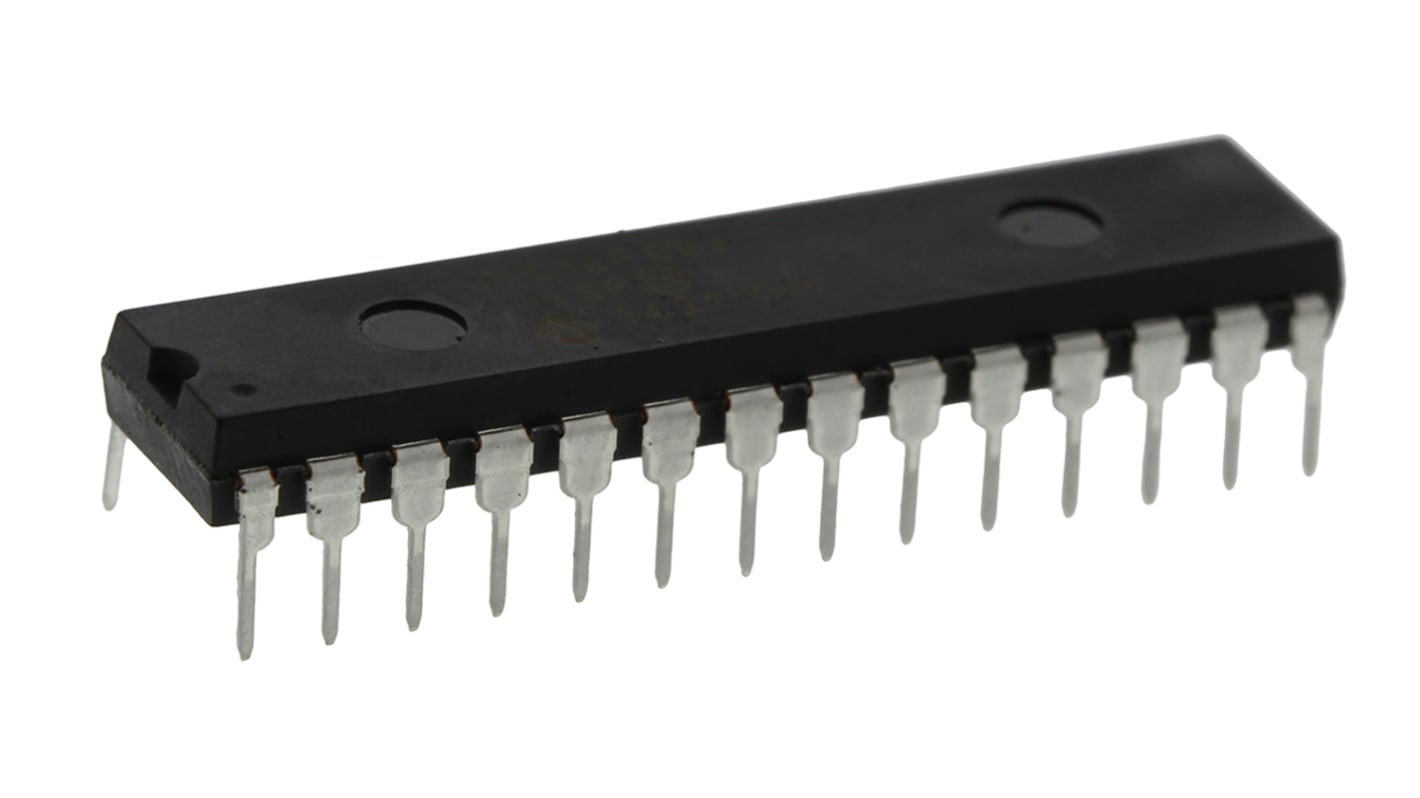

Microchip PIC16F886-I/SP, 8bit PIC Microcontroller, 20MHz, 8192 B Flash, 28-Pin SPDIP

  • RS Stock No. 399-432
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC16F886-I/SP
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

PIC16F882/883/884/886/887 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.

Microcontroller Features

20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz
24 I/O Pins – PIC16F882/883/886
35 I/O Pins – PIC16F884/887
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripherals

10-bit Analogue-to-Digital Converter (ADC) - PIC16F882/883/886 11 Channels, PIC16F884/887 14 Channels
Two Capture, Compare, PWM (CCP) Modules
Enhanced Capture, Compare, PWM (ECCP) Module
Two Comparators
Two 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name PIC16F
Package Type SPDIP
Mounting Type Through Hole
Pin Count 28
Device Core PIC
Data Bus Width 8bit
Program Memory Size 8192 B
Maximum Frequency 20MHz
RAM Size 368 B
USB Channels 1
Number of PWM Units 1
ADC Channels 11
Number of SPI Channels 1
Typical Operating Supply Voltage 2 → 5.5 V
ADC Resolution 10bit
Timer Resolution 8 bit, 16 bit
Timers 1 x 16 bit, 2 x 8 bit
Dimensions 35.56 x 7.49 x 3.81mm
Length 35.56mm
Pulse Width Modulation 1 (4 x 10 bit)
Instruction Set Architecture RISC
Number of Timers 1, 2
Number of LIN Channels 1
PWM Resolution 10bit
Number of ADC Units 1
Number of USART Channels 1
ADCs 1(11 x 10 bit)
Program Memory Type Flash
Width 7.49mm
Minimum Operating Temperature -40 °C
Height 3.81mm
PWM Channels 4
Maximum Operating Temperature +85 °C
Data Rate 10Mbps
Number of I2C Channels 1
335 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 5)
THB 65.05
(exc. VAT)
THB 69.60
(inc. VAT)
Units
Per unit
Per Pack*
5 - 5
THB65.05
THB325.25
10 - 95
THB59.792
THB298.96
100 +
THB58.894
THB294.47
*ตัวบ่งบอกราคา / price indicative
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
