- RS Stock No.:
- 191-4225
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX32620FTHR#
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ดูหมวดหมู่นี้
1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB1,151.29
(exc. VAT)
THB1,231.88
(inc. VAT)
Units | Per unit |
1 + | THB1,151.29 |
- RS Stock No.:
- 191-4225
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX32620FTHR#
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance

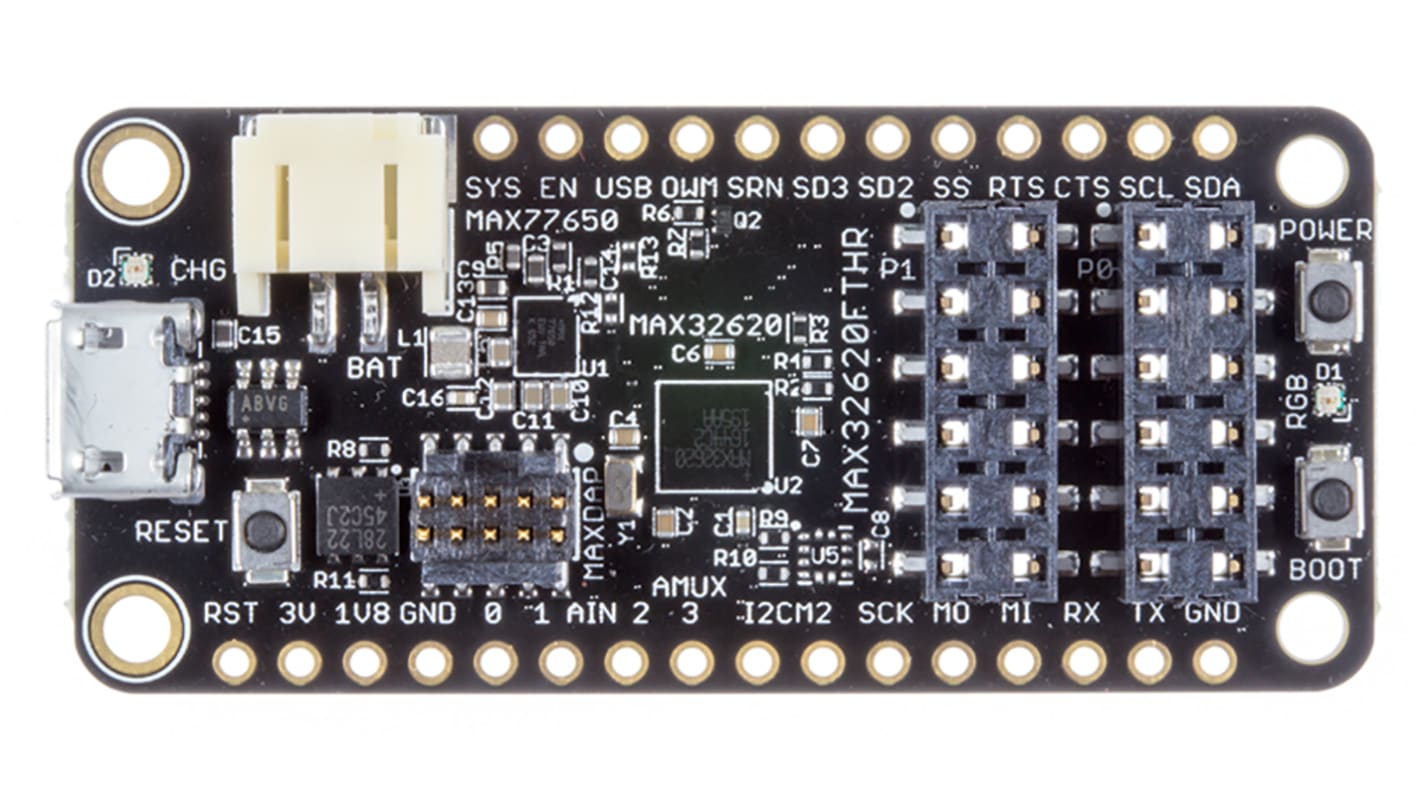

รายละเอียดสินค้า / Product Details
Convenient Development Platform
0.9in x 2.0in DIP Form Factor
Breadboard Compatible
Feather Wing Compatible
Pmod-Compatible Sockets
Supports SPI, UART, I2C, and GPIO
Accessible from Both Sides of Board
Integrated Battery Management
Single-Cell Li+ Charger
Fuel Gauge
User Interface Peripherals
Two RGB LEDs
Two Pushbuttons
MAX32620 Microcontroller Features
96MHz Arm Cortex-M4 Microcontroller with FPU
2048KB Flash
256KB SRAM
Full-Speed USB
SPI, I2C, UART, and 1-Wire
4-Channel 10-Bit ADC
49 Dual Voltage GPIO
3.9mm x 4.1mm, 81-Bump WLP
MAX77650 Ultra-Low Power PMIC Features
Smart Power Selector Charger
Supports Li+/Li-Poly Batteries
7.5mA to 300mA Charge Current
Single Inductor Multiple Output (SIMO) Buck-Boost Regulator
3 Outputs from a Single Inductor
150mA LDO Regulator
I2C Configurable
2.75mm x 2.15mm, 30-Bump WLP
MAX17055 Fuel Gauge Features
ModelGauge m5 EZ
Eliminates Battery Characterization
Eliminates Coulomb Counter Drift
7μA Operating Current
1.4mm x 1.5mm, 9-Bump WLP
Applications
Fitness Monitors
Portable Medical Devices
Sensor Hub
Sport Watches
Wearable Medical Patches
0.9in x 2.0in DIP Form Factor
Breadboard Compatible
Feather Wing Compatible
Pmod-Compatible Sockets
Supports SPI, UART, I2C, and GPIO
Accessible from Both Sides of Board
Integrated Battery Management
Single-Cell Li+ Charger
Fuel Gauge
User Interface Peripherals
Two RGB LEDs
Two Pushbuttons
MAX32620 Microcontroller Features
96MHz Arm Cortex-M4 Microcontroller with FPU
2048KB Flash
256KB SRAM
Full-Speed USB
SPI, I2C, UART, and 1-Wire
4-Channel 10-Bit ADC
49 Dual Voltage GPIO
3.9mm x 4.1mm, 81-Bump WLP
MAX77650 Ultra-Low Power PMIC Features
Smart Power Selector Charger
Supports Li+/Li-Poly Batteries
7.5mA to 300mA Charge Current
Single Inductor Multiple Output (SIMO) Buck-Boost Regulator
3 Outputs from a Single Inductor
150mA LDO Regulator
I2C Configurable
2.75mm x 2.15mm, 30-Bump WLP
MAX17055 Fuel Gauge Features
ModelGauge m5 EZ
Eliminates Battery Characterization
Eliminates Coulomb Counter Drift
7μA Operating Current
1.4mm x 1.5mm, 9-Bump WLP
Applications
Fitness Monitors
Portable Medical Devices
Sensor Hub
Sport Watches
Wearable Medical Patches
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
Kit Name | MAX32620FTHR Rapid Development Platform |
Device Core | ARM Cortex M4 |
Processor Family Name | ARM |
Processor Part Number | MAX32620 |
Processor Type | Microcontroller |
