- RS Stock No.:
- 171-1712
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DT022BTFT
- ผู้ผลิต / Manufacturer:
- Displaytech
600 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Box of 150)
THB577.435
(exc. VAT)
THB617.855
(inc. VAT)
Units | Per unit | Per Box* |
150 - 150 | THB577.435 | THB86,615.25 |
300 - 450 | THB564.731 | THB84,709.65 |
600 + | THB552.605 | THB82,890.75 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 171-1712
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DT022BTFT
- ผู้ผลิต / Manufacturer:
- Displaytech
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details

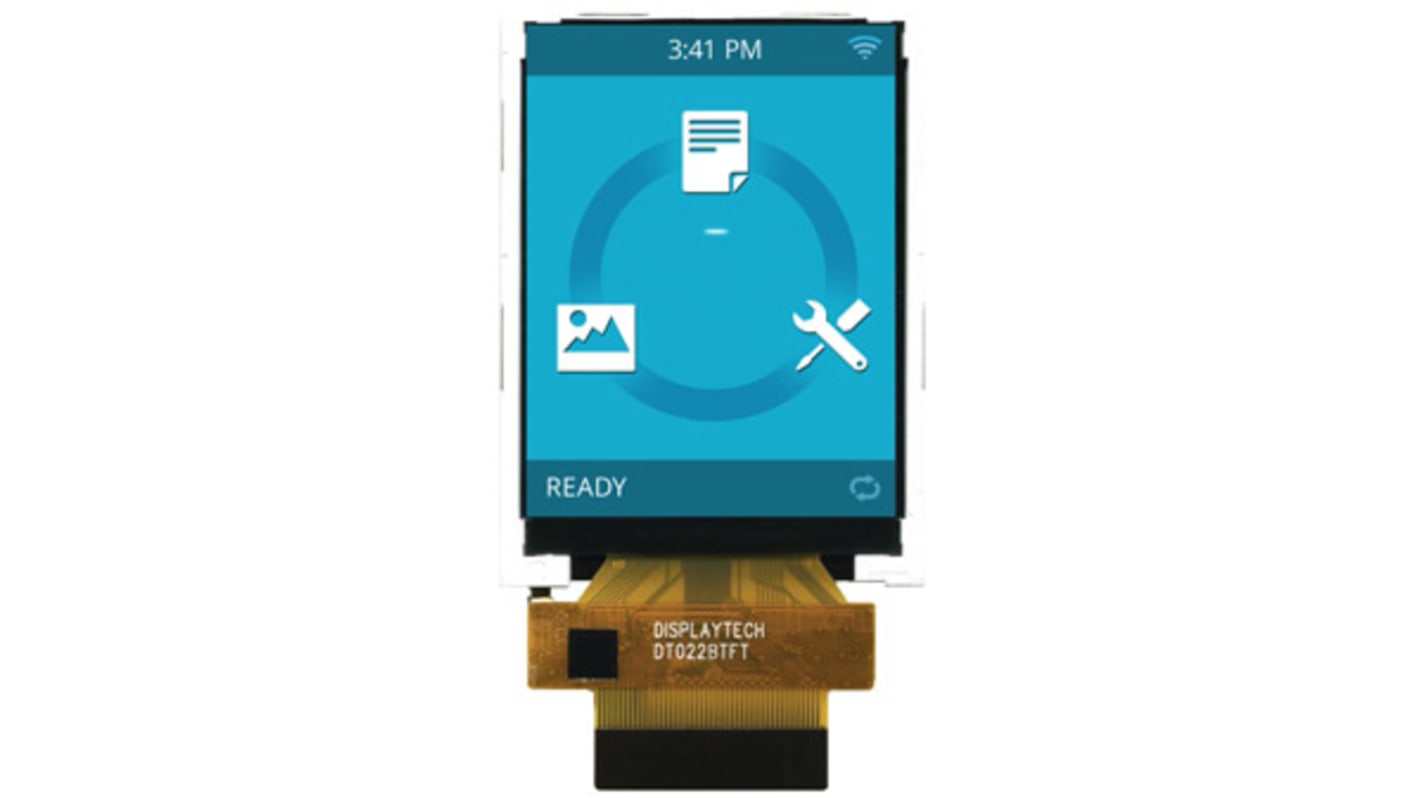

Displaytech TFT LCD Display Modules
Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
• Touch screen versions come fitted with a 4 wire resistive touch screen
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
• Touch screen versions come fitted with a 4 wire resistive touch screen
Note
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Displaytech Colour LCD Graphic Dispalys
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Diagonal Display Size | 2.2in |
Interface Type | Parallel, RGB |
Resolution | 240 x 320pixels |
Touch Screen | No |
Viewing Area Dimensions | 45 x 34mm |
Supply Voltage | -0.3 → +4.6 V dc |
Touch Screen Type | None |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | dc |
Dimensions | 56.16 x 41.7 x 3.2mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Graphics Array Type | QVGA |
Brightness | 200cd/m² |
Viewing Area Width | 33.84mm |
Viewing Area Height | 45.12mm |
Contrast Ratio | 350:1 |
Aspect Ratio | 4:3 |
Response Time | 20ms |
Depth | 3.2mm |
Number of Colours | 262,144 |
Width | 41.7mm |
Height | 56.16mm |
Operating Temperature Range | -20 → +70°C |
