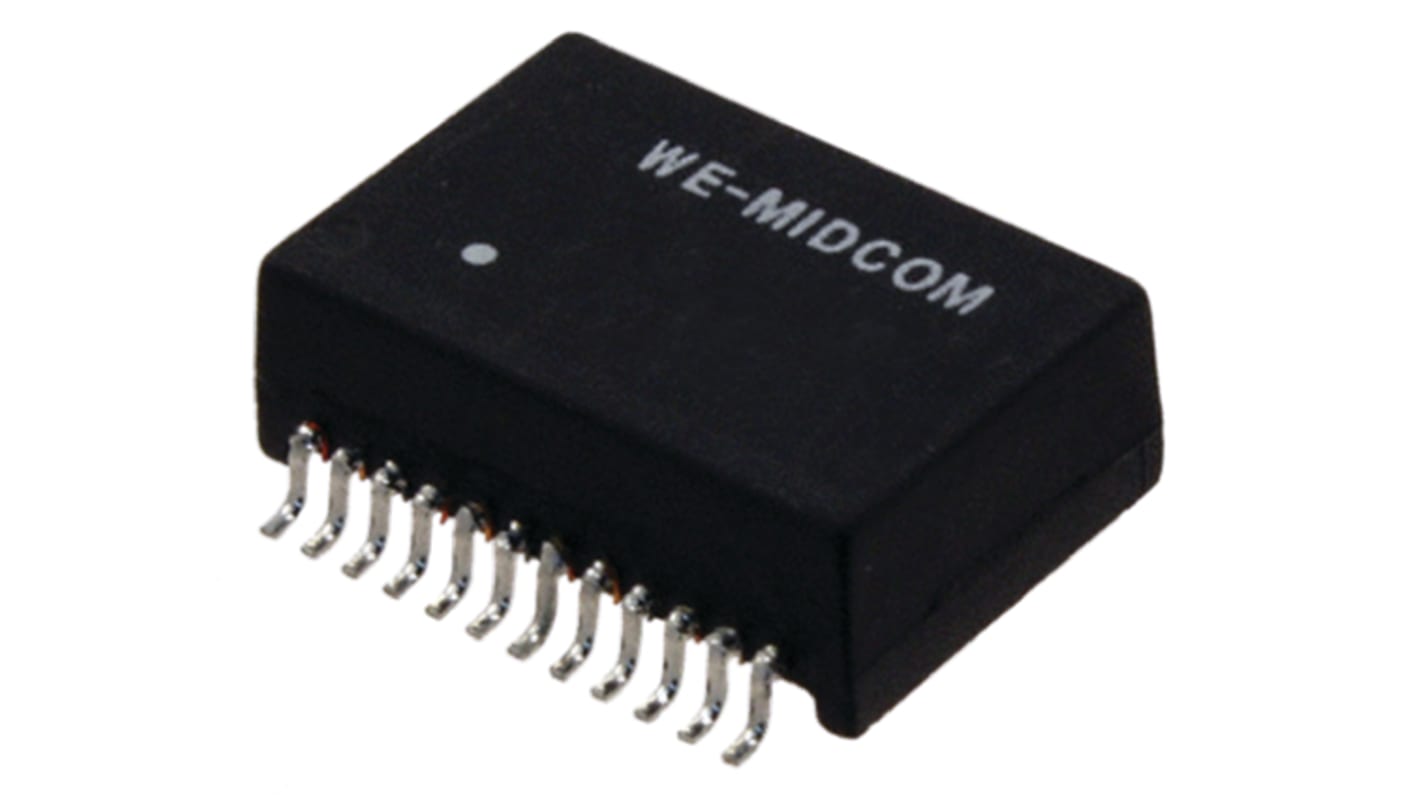

Surface Mount Lan Ethernet Transformer, 18.3 x 12.2 x 6.35mm, 0 → +70 °C

  • RS Stock No. 756-7572
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 749023015
  • ผู้ผลิต / Manufacturer Wurth Elektronik
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

WE-LAN Ethernet Transformers

The WE-LAN series of LAN transformers from Wurth Elektronik provide a surface mount solution and are compliant with IEEE 802.3, IEEE 802.3af and IEEE 802.3at standards. This series of Ethernet transformers feature a turns ratio of 1:1.

Product Application Information

Applications include Ethernet, 1 Gbps Ethernet and Power over Ethernet. These LAN transformers are suitable for Ethernet applications such as Intel, Realtek, Globespan and AMD as they are compliant with most ICs. Other suitable applications include switches, routers and hubs.

//media.rs-online.com/t_line/L522589-01.gif
คุณสมบัติ / Specifications
คุณสมบัติ Value
Number of Output Ports 1
Insertion Loss -1.2dB
Mounting Type Surface Mount
Dimensions 18.3 x 12.2 x 6.35mm
Depth 6.35mm
Length 18.3mm
Width 12.2mm
Minimum Temperature 0°C
Maximum Temperature +70°C
Turns Ratio 1:1
271 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 608.50
(exc. VAT)
THB 651.10
(inc. VAT)
Units
Per unit
1 - 9
THB608.50
10 - 19
THB587.32
20 - 49
THB565.00
50 - 99
THB528.36
100 +
THB504.32
