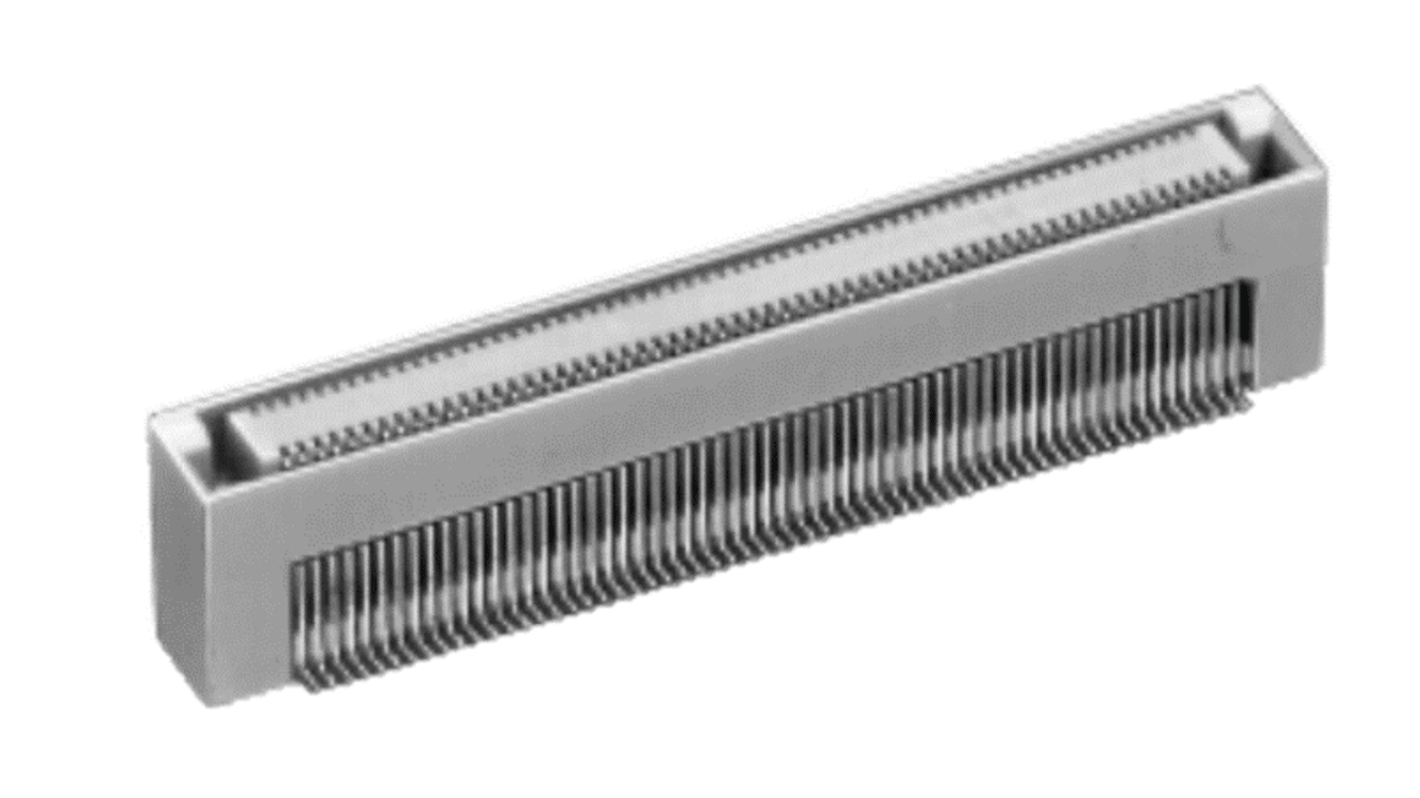

Hirose 100-Contact Female Interface Module, Surface Mount, 400mA
- RS Stock No.:
- 184-9997
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FX8C-100S-SV5(71)
- ผู้ผลิต / Manufacturer:
- Hirose
สามารถสั่งจองล่วงหน้าได้
เพิ่ม / Added
ราคา / Price Each (In a Tray of 108)
THB164.105
(exc. VAT)
THB175.592
(inc. VAT)
| Units | Per unit | Per Tray* |
| 108 - 108 | THB164.105 | THB17,723.34 |
| 216 - 324 | THB160.495 | THB17,333.46 |
| 432 + | THB157.049 | THB16,961.292 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 184-9997
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- FX8C-100S-SV5(71)
- ผู้ผลิต / Manufacturer:
- Hirose
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
รายละเอียดสินค้า / Product Details
0.6mm Pitch Stacking Height 5mm to 16mm Connectors
Wide variations: PCB distance (5 mm to 16 mm) x No. of pos. (40 to 280)
3.125 Gbps high speed transmission support
Highly reliable contact with optimized spring deflection design
Self alignment range: +/- 0.6 mm
Joint bars to locate accurate mounting position, contributing to improve the mating reliability for 2-piece usage.
3.125 Gbps high speed transmission support
Highly reliable contact with optimized spring deflection design
Self alignment range: +/- 0.6 mm
Joint bars to locate accurate mounting position, contributing to improve the mating reliability for 2-piece usage.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Gender | Female |
| Number of Contacts | 100 |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Test Proof Voltage | 300 (1 min)V ac |
| Voltage Rating | 100 V ac, 300 V |
| Current Rating | 400mA |
| Dimensions | 36.6 x 7 x 8.95mm |
| Depth | 8.95mm |
| Length | 36.6mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
| Width | 7mm |
