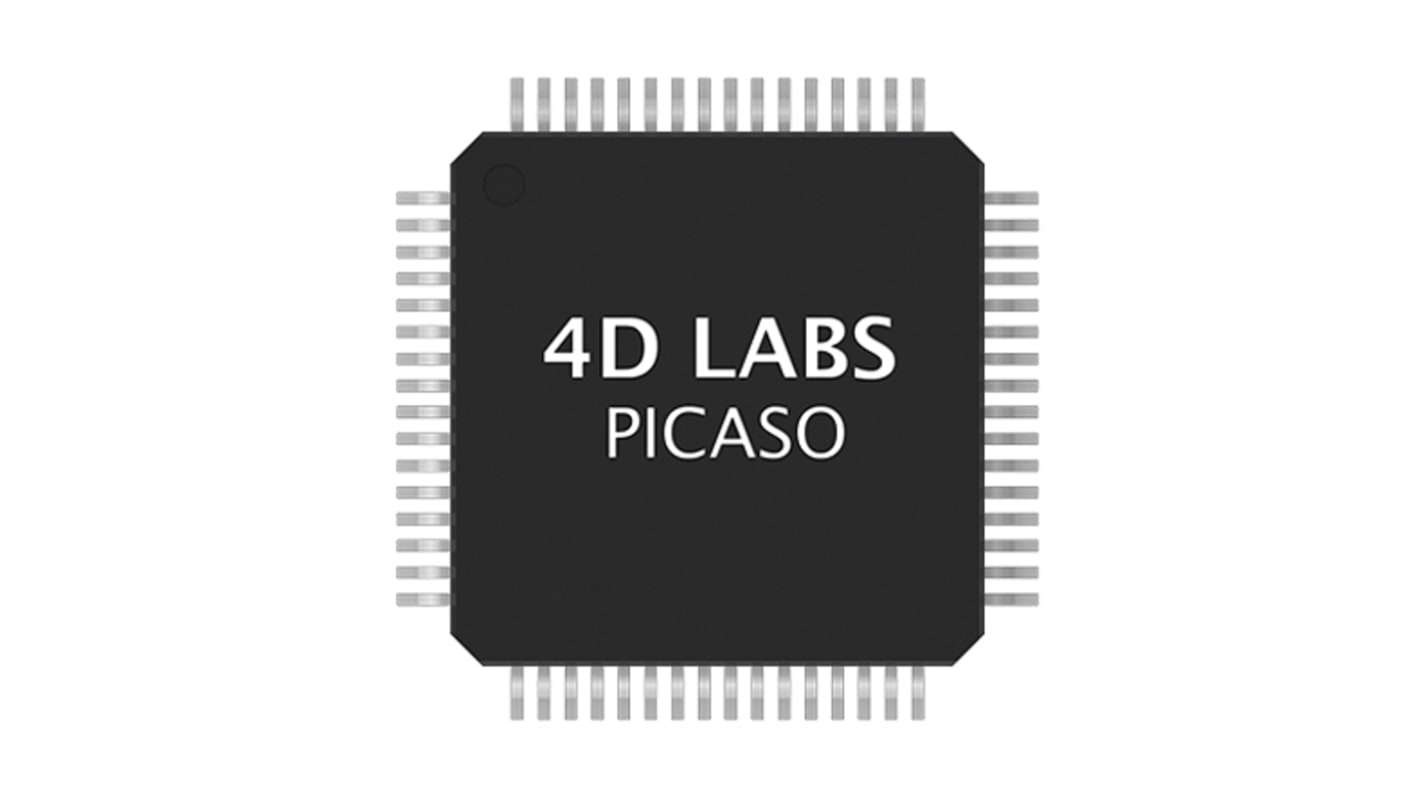

PICASO, Graphics Controller 64-Pin TQFP

  • RS Stock No. 901-4281
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PICASO
  • ผู้ผลิต / Manufacturer 4D Systems
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
รายละเอียดสินค้า / Product Details

PICASO Graphics Controller for LCD and OLED displays, 4D Systems

The PICASO embedded graphics controller from 4D Systems, can be used with a wide range of LCD and OLED displays. The controller uses the 4DGL graphics language supported by Extensive Virtual Engine (EVE) — a virtual processor with a comprehensive byte-code instruction set. Workshop 4 IDE is also available to support you with the development of your display applications — not exclusive to the PICASO, but for all 4D processors and modules. The software has four development environments — Designer, Serial, ViSi and ViSi Genie.

Recommended applications for the PICASO include home appliances, electronic gauges & meters, test & mesurement, general purpose instrumentation, GPS navigation systems, automotive system displays, medical instruments, security systems, gaming, aviation and HMI touch panels.

Features & Benefits of the PICASO Graphics Controller
•15 KB of flash memory
•14 KB of SRAM
•13 I/O pins
•FAT16 file services
•I²C & SPI serial communications interface
•PWM output that supports audio WAV files
•2 asynchronous hardware serial ports with auto-baud feature
•4-Wire resistive touch panel interface
•8 x 16-bit timers
•Can operate as a standalone graphics controller
•Can connect to any LCD or OLED that supports an 80-series, 16-bit wide CPU interface

4D Systems Graphics Controllers

คุณสมบัติ / Specifications
คุณสมบัติ Value
Mounting Type Surface Mount
Package Type TQFP
Pin Count 64
Dimensions 10 x 10 x 1.05mm
Height 1.05mm
Length 10mm
Width 10mm
Maximum Operating Temperature +80 °C
Minimum Operating Temperature -40 °C
173 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 542.48
(exc. VAT)
THB 580.45
(inc. VAT)
Units
Per unit
1 - 9
THB542.48
10 - 49
THB531.67
50 - 99
THB520.85
100 +
THB510.47
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
