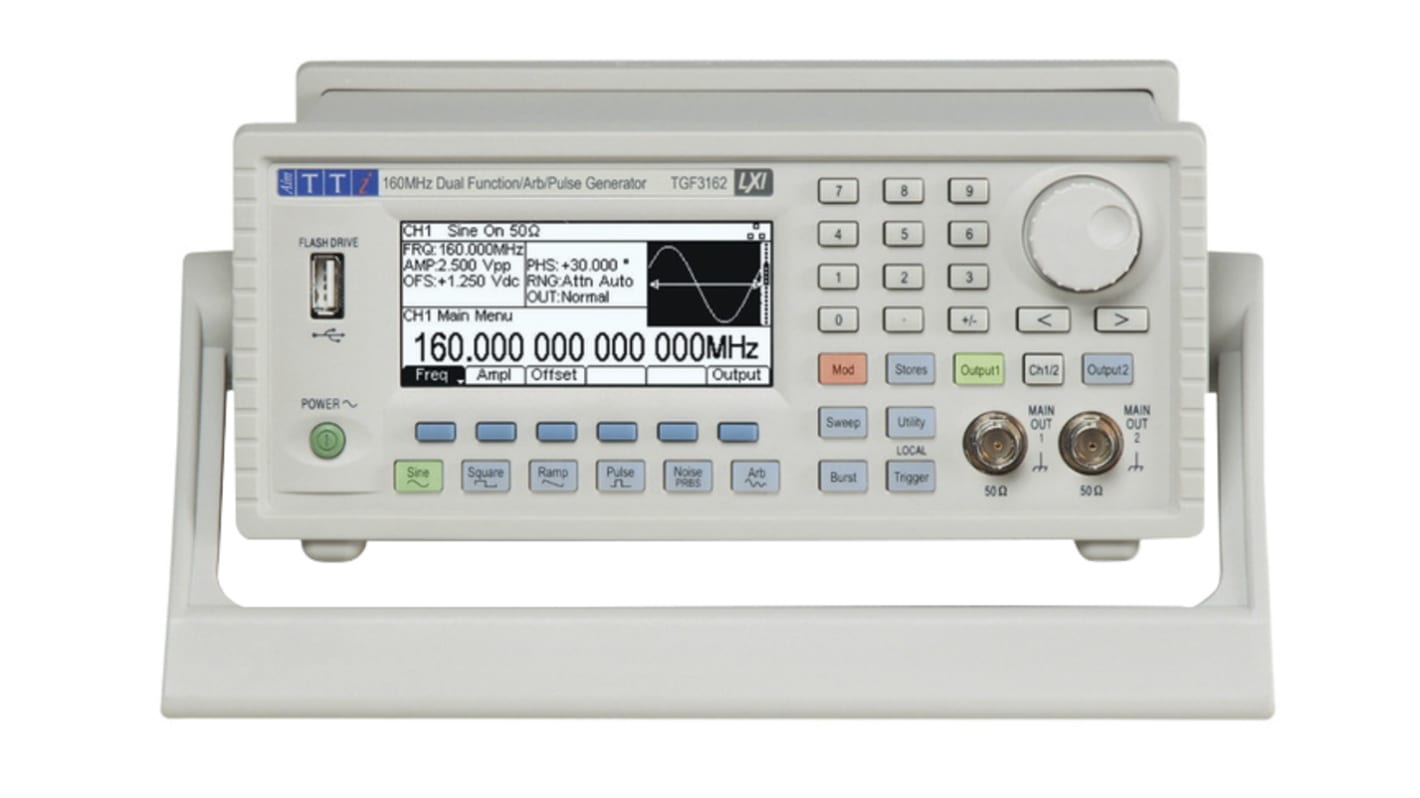

Aim-TTi TGF3162 Function Generator, 1μHz Min, 160MHz Max, FM Modulation, Variable Sweep
- RS Stock No.:
- 162-5668
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 59120-6140
- ผู้ผลิต:
- Aim-TTi
- RS Stock No.:
- 162-5668
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 59120-6140
- ผู้ผลิต:
- Aim-TTi
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Aim-TTi | |
| Maximum Frequency Range Sinewave | 160MHz | |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 20 MHz, 50 MHz, 80 MHz | |
| Output Impedance | 50Ω | |
| Minimum Frequency Range Sinewave | 1µHz | |
| Variable Sweep | Yes | |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 1μHz, 1 mHz, 1 μHz | |
| FM Modulation | Yes | |
| Time Base Accuracy | ±1ppm | |
| Digital Frequency | Yes | |
| Maximum Frequency Range Triangle/Saw | 5MHz | |
| Minimum Frequency Range Triangle/Saw | 1µHz | |
| Model Number | TGF3162 | |
| Input Impedance | 10 kΩ | |
| Minimum Operating Temperature | +5°C | |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 50 MHz (Square), 1 μHz → 80 MHz (Arbitrary), 1 mHz → 20 MHz (Pulse) | |
| Output Amplitude | 20V Pk-Pk | |
| Maximum Operating Temperature | +40°C | |
| CMOS Output Level | 3V | |
| Dimensions | 269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top) mm | |
| Length | 269 mm, 295 mm | |
| Internal Linear and Log Sweep | Yes | |
| Attenuation | 42dB | |
| Height | 86.5 mm, 97 mm | |
| Internal and External Amplitude Modulation | Yes | |
| Interface Type | GPIB, LAN, USB | |
| Width | 213.5 mm, 250 mm | |
| Digital Amplitude and Offset | Yes | |
| Weight | 3.2kg | |
