Aim-TTi PFM3000 Frequency Counter 3GHz

  • RS Stock No. 457-730
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PFM3000
  • ผู้ผลิต / Manufacturer Aim-TTi
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

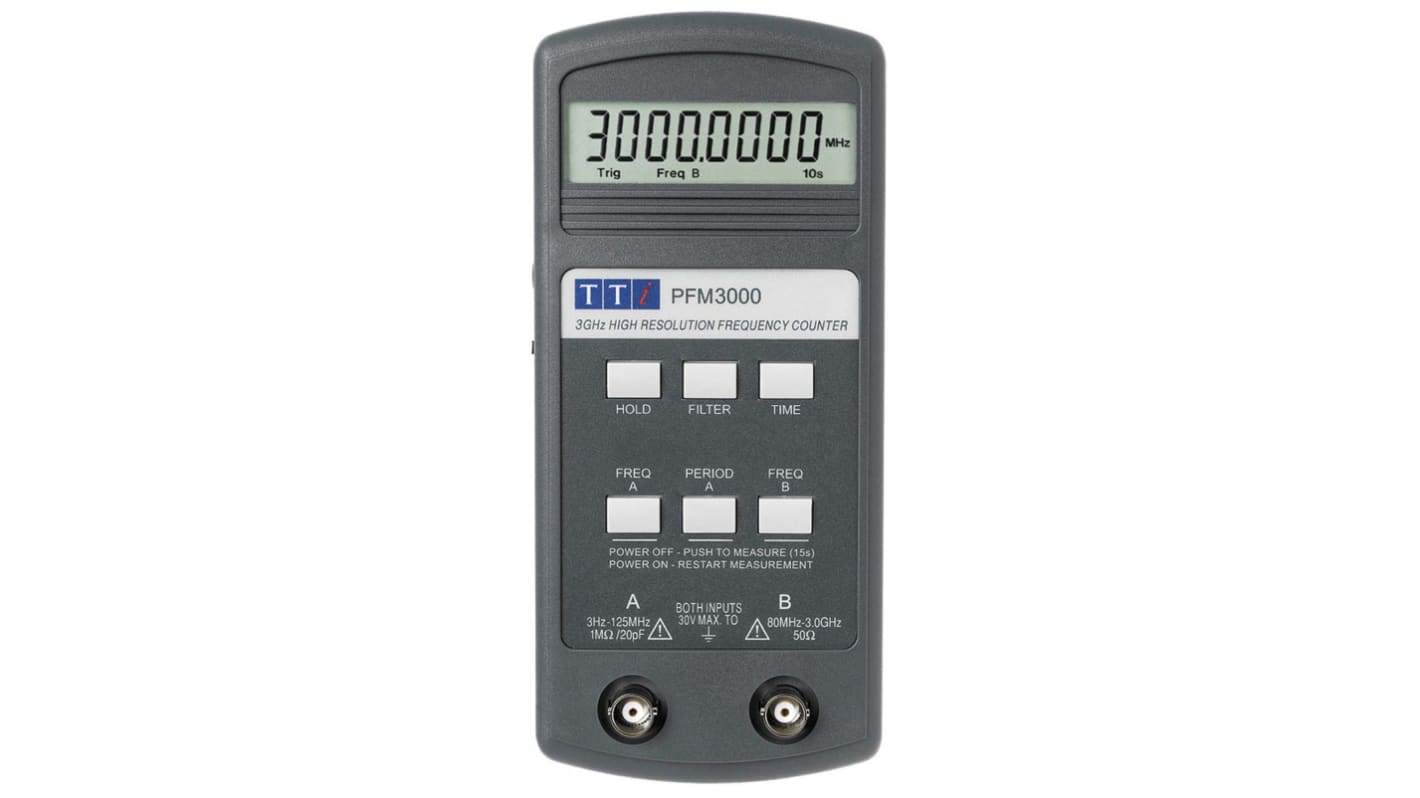

Aim-TTi Frequency Counter PFM3000 3.0GHz Handheld Reciprocal Counting

A sophisticated counter with a large LCD display that uses a reciprocal counting measurement technique to achieve fast response and high resolution at all frequencies.

Wide frequency range of <3Hz to >3000MHz
High sensitivity across the frequency band
High impedance measurement up to 125MHz
Period measurement from 8ns to 330ms
8 digits of resolution at 1 sec. measurement
Low pass filter for noise suppression
Data hold function to freeze display reading
Long battery life and push-to-measure function
Powered by PP3 Alkaline battery; Stock no. 394-9059 (not supplied)

Supplied with

user manual

Aim-TTi Frequency Counter

The Aim-TTi frequency counter PFM3000 offers high sensitivity frequency measurement from 3Hz to more than 3GHz. It also performs period measurement from 8ns to 330ms. This frequency counter uses a continuous reciprocal measurement technique to provide high resolution at all the frequencies with a rapid update. It offers high sensitivity across the whole frequency range. A low pass filter reduces high-frequency signal noise at lower frequencies.

Features and Benefits


3Hz to 3000MHz in two overlapping ranges
• High input sensitivity over the full frequency range
• High impedance measurement up to 125MHz
• Period measurement from 3Hz to 125MHz
• Selectable measurement time and display hold function
• Large 8.5-digit display with full range of annunciators
• Battery operation handheld format with tilt-stand
• Push-to-measure function with auto power-down

Applications


Data communication
• Embedded systems
• RF and microwaves
• Laboratories

Certifications


EN61010-1
• EN61326

คุณสมบัติ / Specifications
คุณสมบัติ Value
Maximum Frequency 3GHz
Minimum Frequency 3 Hz
Resolution 6 Digit
Maximum Internal Counter 188888888
Maximum Input Voltage 30V ac/dc
Input Impedance 1 MΩ, 50 Ω
Measurement Time 10s
Dimensions 178 x 81 x 30mm
Maximum Operating Temperature +40°C
Minimum Operating Temperature +5°C
Model Number p PFM3000
Length 178mm
Width 81mm
Weight 190g
Height 30mm
20 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 6,559.00
(exc. VAT)
THB 7,018.13
(inc. VAT)
Units
Per unit
1 +
THB6,559.00
