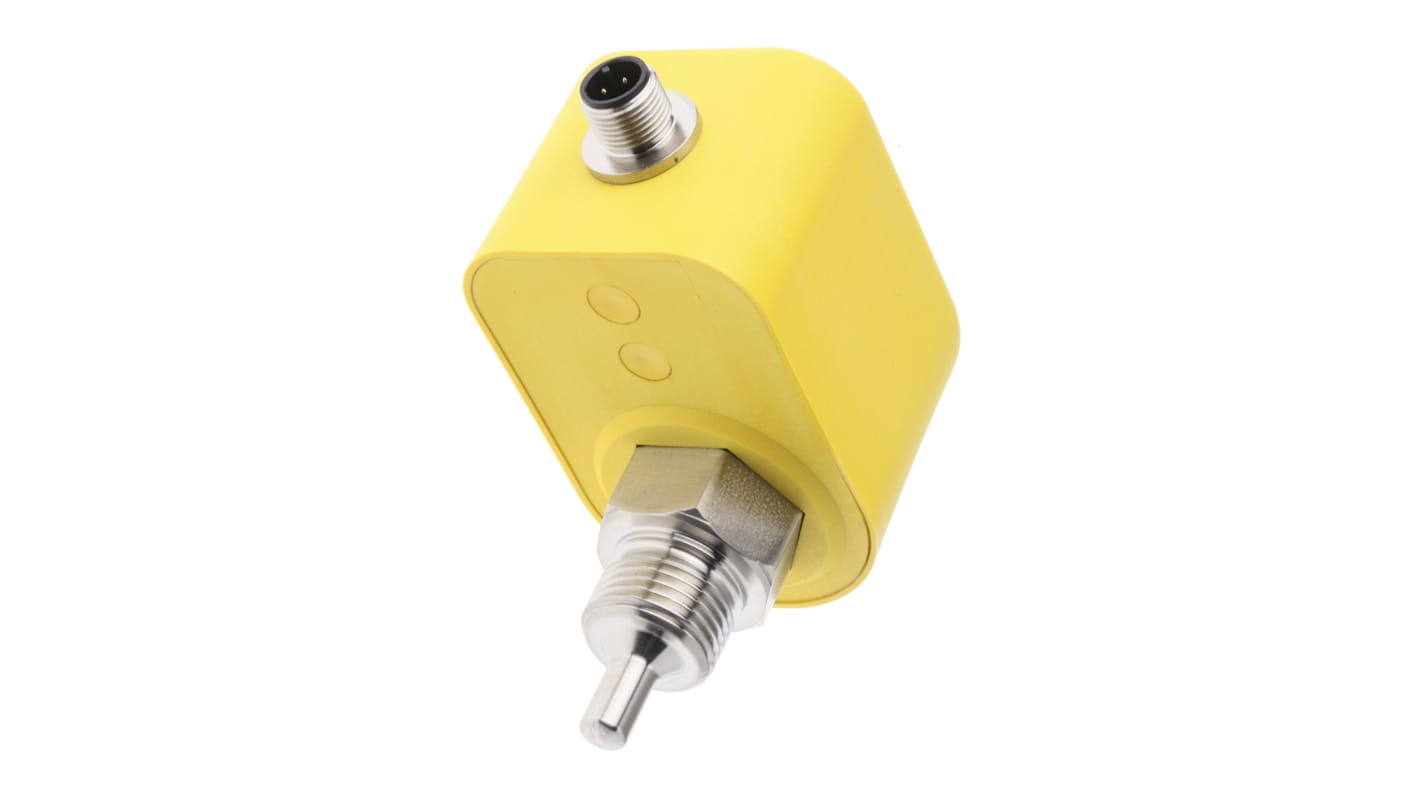

Turck, 3 → 300 (Oil) cm³/s, 5 → 150 (Water) cm³/s Flow Controller, M12 Connector, Analogue

  • RS Stock No. 313-2453
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. FCS-G1/2A4P-LIX-H1141
  • ผู้ผลิต / Manufacturer Turck
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
COO (Country of Origin): DE
รายละเอียดสินค้า / Product Details

Analogue Flow Control Sensor

Sensor and signal processor in one stainless steel compact housing
On-delay time: 8s (typical)
Ingress protection to IP67
Simple adjustment via LED bar graph and potentiometer
Output Load 500Ω max.
Switch on time: 1.5s
Fluid temperature range: –25 to +75°C
Ingress protection to IP67
Simple adjustment via LED bar graph and potentiometer

//media.rs-online.com/t_line/L313245-01.gif
//media.rs-online.com/t_line/LD313245-01.gif
//media.rs-online.com/t_line/LI313245-01.gif
คุณสมบัติ / Specifications
คุณสมบัติ Value
Maximum Flow Rate 3 → 300 (Oil) cm³/s, 5 → 150 (Water) cm³/s
Electrical Connection M12 Connector
Control Output Analogue
Mounting Style Compact
Supply Voltage 21 → 26 V dc
Display Screen LED
Pipe Diameter Range 1/2 in
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 13,460.63
(exc. VAT)
THB 14,402.87
(inc. VAT)
Units
Per unit
1 +
THB13,460.63
