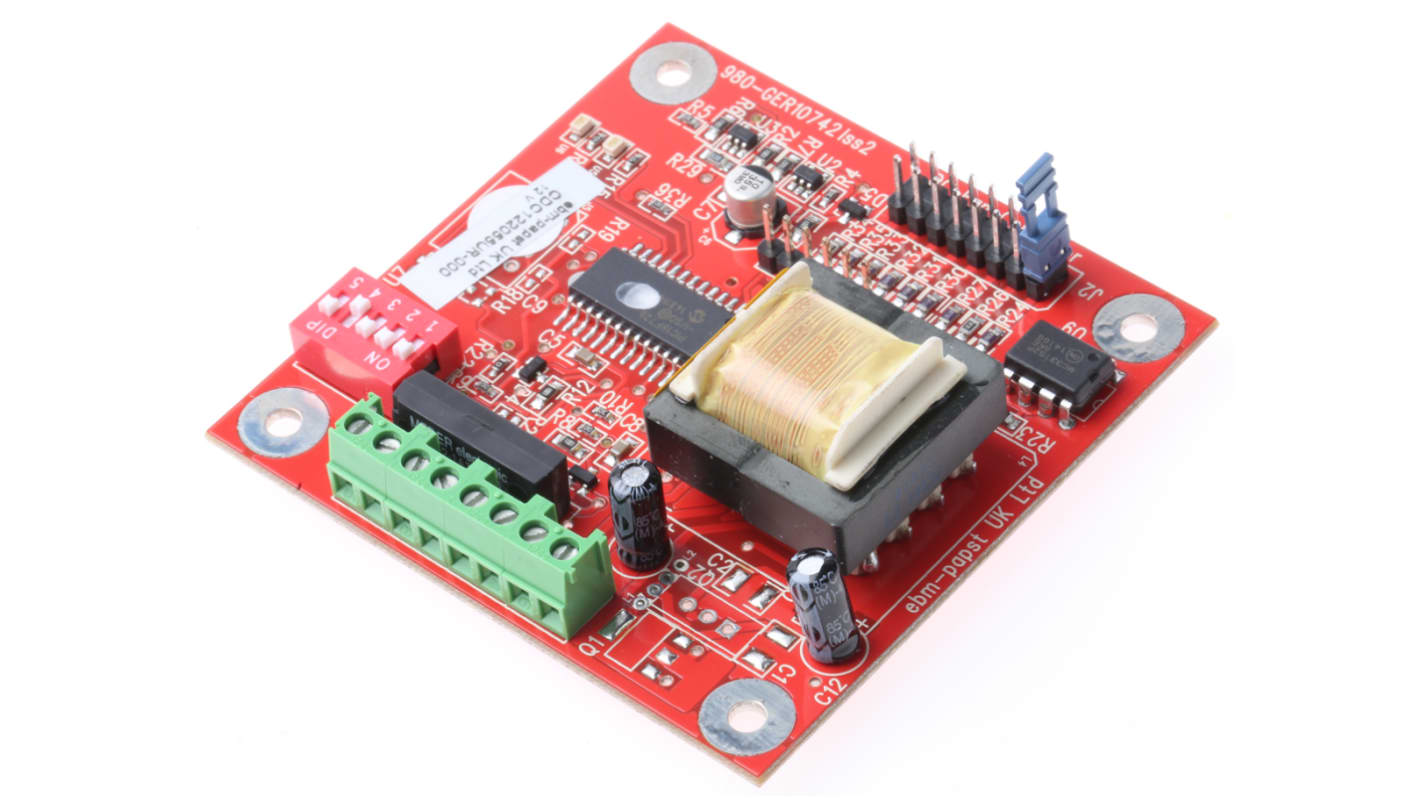

Fan Speed Controller, Variable, 12 V dc, 36mA

  • RS Stock No. 667-0406
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. CDC122055UR-R
  • ผู้ผลิต / Manufacturer ebm-papst
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

DC Fan Controllers

DC fans in the ebm-papst compact range can have their speed reduced by up to 80% using innovative drive technology which, unlike voltage control, has no adverse impact on motor life.

Speed control for two or three wire ebm-papst DC compact fans
71.1 x 72.4 x 19.6 (max height) mm, with 4 holes each 3.5mm diameter
Selectable control temperature range +20 → +40 / +35 → +55°C
Alarm output

Supplied with

temperature sensor on 2m lead

Fan Controllers

คุณสมบัติ / Specifications
คุณสมบัติ Value
For Use With Ebm-papst 2-wire and 3-wire DC fans
Speed Settings Variable
Maximum Current 36mA
Supply Voltage 12 V dc
14 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 3,737.92
(exc. VAT)
THB 3,999.57
(inc. VAT)
Units
Per unit
1 - 4
THB3,737.92
5 - 14
THB3,531.28
15 - 24
THB3,478.14
25 - 59
THB3,423.20
60 +
THB3,338.97
