เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Toshiba
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Pin Count	16
	Dimensions	5 x 4.4 x 1mm
	Maximum Operating Supply Voltage	3.6 V
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	1.65 V
	Automotive Standard	AEC-Q100
	Minimum Operating Temperature	-40 °C

	เลือกทั้งหมด
	Brand Toshiba
	Mounting Type Surface Mount
	Package Type TSSOP
	Pin Count 16
	Dimensions 5 x 4.4 x 1mm
	Maximum Operating Supply Voltage 3.6 V
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 1.65 V
	Automotive Standard AEC-Q100
	Minimum Operating Temperature -40 °C

The 74LCX138FT is a high-performance CMOS 3 to 8 decoder. Designed for use in 3.3 V systems, it achieves high-speed operation while maintaining the CMOS low-power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5 V supply environment for inputs. When the device is enabled, 3 binary select inputs (A, B and C) determine which one of the outputs (Y0-Y7) will go low. When enable input G1 is held low or either G2A or G2B is held high, decoding function is inhibited and all outputs go high.G1,G2A, and G2B inputs are provided to ease cascade connection and for use as an address decoder for memory systems. All inputs are equipped with protection circuits against static discharge.

Wide operating temperature range: Topr = -40 to 125 
Low-voltage operation: VCC = 1.65 to 3.6 V
High-speed operation: tpd = 7.0 ns (max) (VCC = 3.3 ± 0.3 V)
Output current: |IOH|/IOL = 24 mA (min) (VCC = 3.0 V)
Power-down protection provided on all inputs and outputs
Pin and function compatible with the 74 series
(74LVC/ALVC/ etc.) 138 type

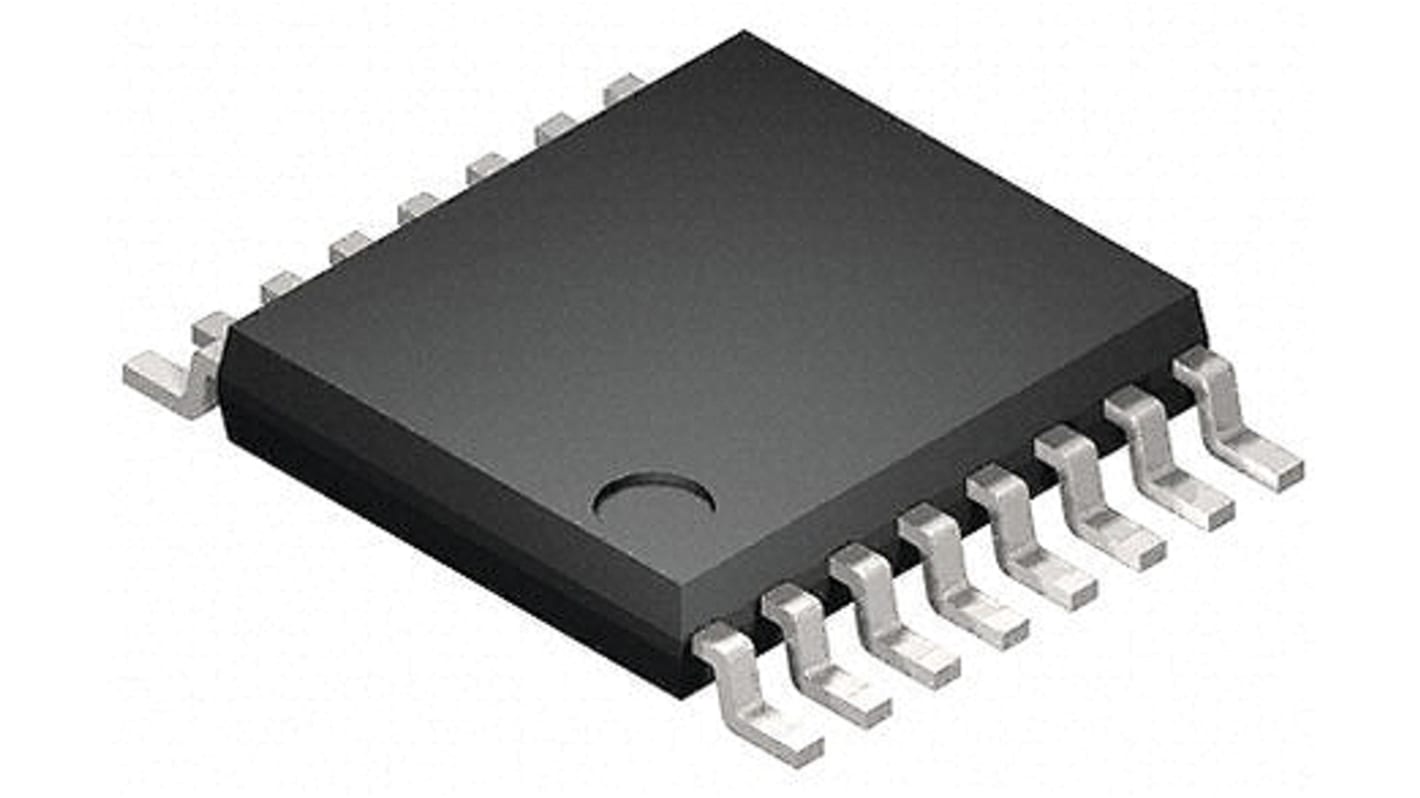

Toshiba 74LCX138FT, Decoder, 16-Pin TSSOP
