RS PRO Pressure Mat Surface Mount 250mA, 25V dc
- RS Stock No.:
- 918-4756
- ผู้ผลิต / Manufacturer:
- RS PRO
12 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB332.96
(exc. VAT)
THB356.27
(inc. VAT)
| Units | Per unit |
| 1 - 4 | THB332.96 |
| 5 + | THB274.04 |
- RS Stock No.:
- 918-4756
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

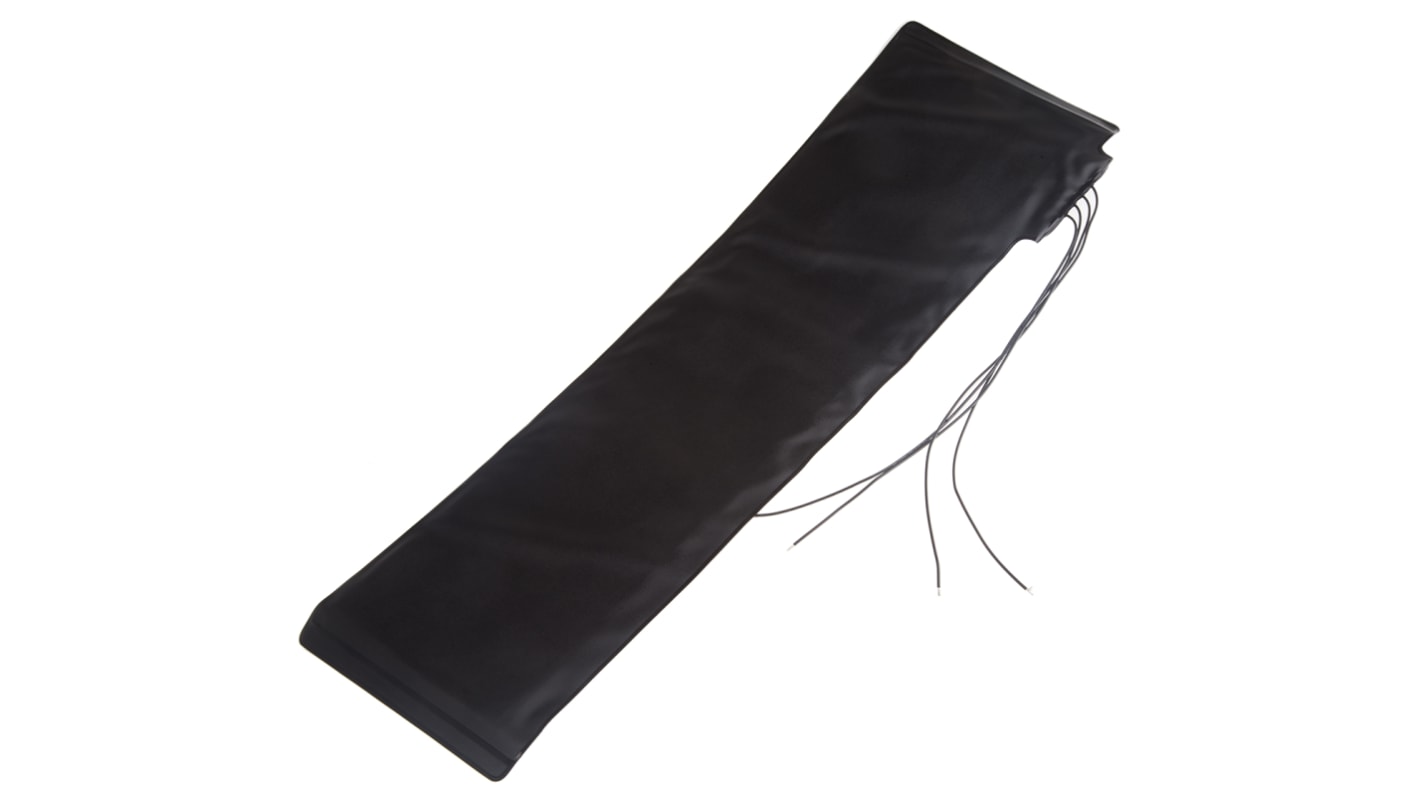

RS PRO Pressure Mat – Surface Mount
Use this RS PRO pressure mat as a discreet way to monitor the presence of people in your workspace, this RS PRO pressure mat is an ideal solution. It's a flat pad that can be placed easily under a carpet, vinyl flooring or furniture upholstery. The sensor is triggered when a load of more than 25 kg is applied over a 50 mm² area. The mat is made of seam-welded PVC (polyvinyl chloride), so it can withstand repeated use and has a long lifespan. You can use this mat for security at the entrance to a building, to detect when furniture is occupied, and as part of an interactive multimedia installation.
Features and Benefits
- Surface mounting
- Pressure pad switch activation
- Normally Open (NO) switch configuration
- Contact Form / Style: Normally open
- Flat pad
- Sensor
Specifications
- Actuation pressure: 25Kg over 50mm2
- Maximum switching voltage: 25 V/DC
- Maximum switching current: 0.25 Amps DC (Resistive)
- Carry current Max: 0.25 Amps DC (Resistive)
- Maximum power: 10 W/VA
- Contact resistance: 1 Ohm (typical)
- Operating temperature: -10° to +70° C
- Mat Material: Seem welded PVC
- Cable: 0.22mm2 black PVC insulated
- Ingress protection: IP64 (Not waterproof)
- RoHS Compliant
Dimensions
- 595 mm x 170 mm
Applications
- Alarm systems
- Automatic door operation
- Patient bed monitoring
- Seat occupancy detection
Note
Not to be used in machine control safety applications.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Activation Type | Pressure Pad Switch |
| Mounting Type | Surface Mount |
| Switch Configuration | Normally Open |
| Switching Current | 250mA |
| Switching Voltage | 25V dc |
| Colour | Black |
| Height | 595 mm |
| Width | 170mm |
