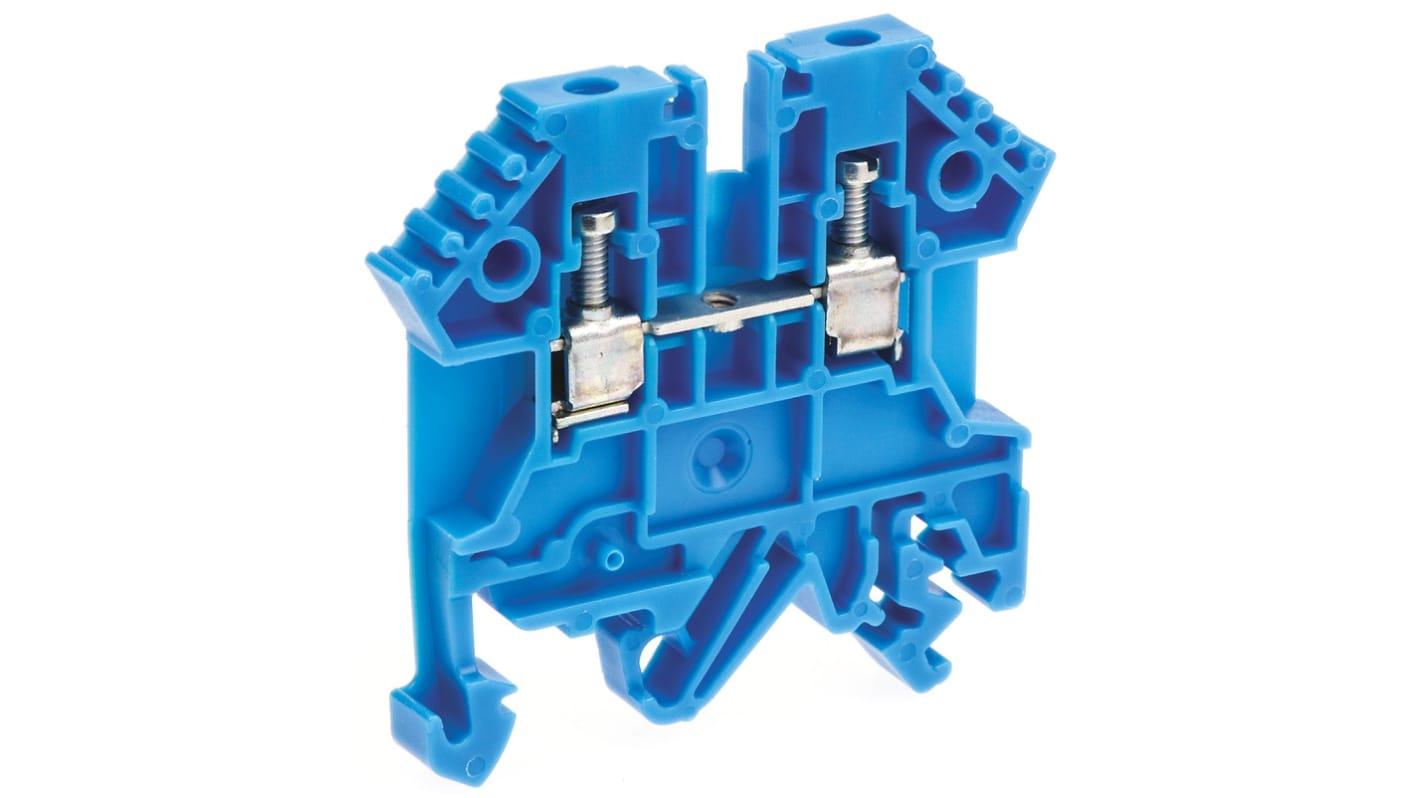

RS PRO Blue, 0.2 → 2.5mm², Screw Termination

Need a reliable way to protect your complex electrical equipment? Use this DIN rail mount terminal block from RS PRO. It helps prevent short circuits and overcurrent to keep your components safe. It's colour-coded in blue to allow for easier organisation and quick visual identification of the wiring.
The terminal block has universal mounting foot clips in both a 'G' profile (asymmetric to BS5825:1990 rails) and ’top hat’ profile (symmetric to BS5584:1978 rails), making it suitable for use on a wide range of DIN rails. The screw termination method creates a mechanically and electrically secure connection for a long product life.
For added versatility, the block can accommodate a broad range of wire sizes between 22 and 12 AWG (American Wire Gauge). It's suitable for use in high-voltage applications of up to 800 V.

• Cable cross-sectional area (CSA) of 0.2 to 2.5 mm²
• Blue colour
• Current rating of 24 A
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Screw termination method
• Voltage rating of 800 V
• Wire size of 22 to 12 AWG (American Wire Gauge)

UL Listed; CSA Certified; NEMKO
