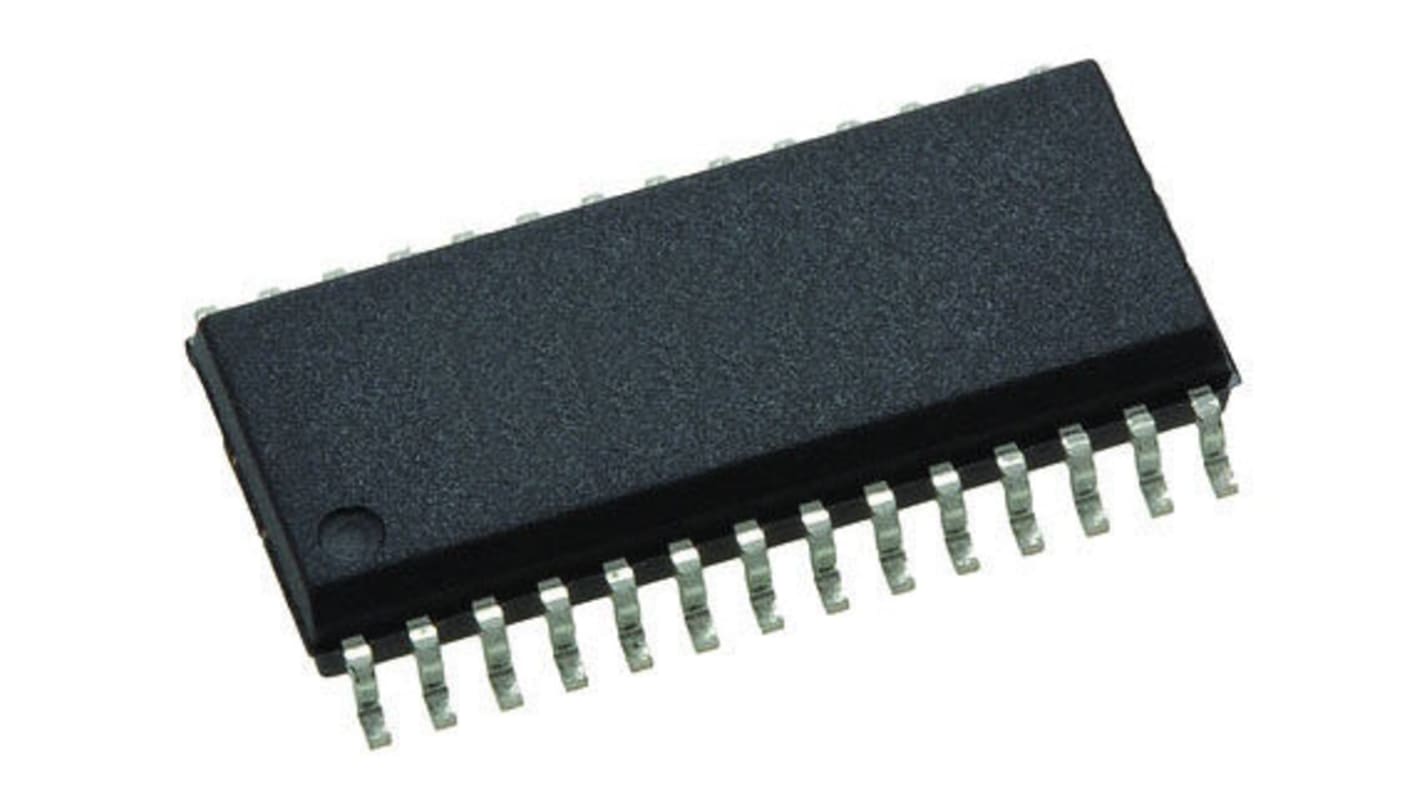

dsPIC33EP128GS702-I/SO Microchip dsPIC33EP, 16bit Digital Signal Processor 60MHz 128 kB Flash 28-Pin SOIC
- RS Stock No.:
- 134-5618P
- หมายเลขชิ้นส่วนของผู้ผลิต:
- dsPIC33EP128GS702-I/SO
- ผู้ผลิต:
- Microchip
- RS Stock No.:
- 134-5618P
- หมายเลขชิ้นส่วนของผู้ผลิต:
- dsPIC33EP128GS702-I/SO
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Maximum Frequency | 60MHz | |
| Series | dsPIC33EP | |
| Device Million Instructions per Second | 70MIPS | |
| Data Bus Width | 16bit | |
| RAM Size | 8 kB | |
| Instruction Set Architecture | DSP | |
| Program Memory Size | 128 kB | |
| Program Memory Type | Flash | |
| Numeric and Arithmetic Format | MAC | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 28 | |
| Typical Operating Supply Voltage | 3 to 3.6 V | |
| Number of UART Channels | 2 | |
| Minimum Operating Temperature | -40 °C | |
| ADC Resolution | 12bit | |
| Width | 7.5mm | |
| PWM Channels | 8 | |
| Number of LIN Channels | 0 | |
| Height | 2.35mm | |
| Timer Resolution | 16 bit, 32bit | |
| ADCs | 1(11 x 12 bit (Analogue)), 1(5 x 12 bit (S & H Circuit)) | |
| Length | 17.9mm | |
| Automotive Standard | AEC-Q100 | |
| Number of PWM Units | 1 | |
| USB Channels | 0 | |
| Number of SPI Channels | 3 | |
| Pulse Width Modulation | 1(8 x 16 bit) | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 2 | |
| ADC Channels | 11(Analogue), 5 (S & H Circuit) | |
| Dimensions | 17.9 x 7.5 x 2.35mm | |
| Timers | 1(2 x 32 bit), 1(5 x 16 bit) | |
| Number of USART Channels | 0 | |
| Number of PCI Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of Timers | 2 | |
| Number of Ethernet Channels | 0 | |
| PWM Resolution | 16bit | |
| Number of CAN Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Maximum Frequency 60MHz | ||
Series dsPIC33EP | ||
Device Million Instructions per Second 70MIPS | ||
Data Bus Width 16bit | ||
RAM Size 8 kB | ||
Instruction Set Architecture DSP | ||
Program Memory Size 128 kB | ||
Program Memory Type Flash | ||
Numeric and Arithmetic Format MAC | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 28 | ||
Typical Operating Supply Voltage 3 to 3.6 V | ||
Number of UART Channels 2 | ||
Minimum Operating Temperature -40 °C | ||
ADC Resolution 12bit | ||
Width 7.5mm | ||
PWM Channels 8 | ||
Number of LIN Channels 0 | ||
Height 2.35mm | ||
Timer Resolution 16 bit, 32bit | ||
ADCs 1(11 x 12 bit (Analogue)), 1(5 x 12 bit (S & H Circuit)) | ||
Length 17.9mm | ||
Automotive Standard AEC-Q100 | ||
Number of PWM Units 1 | ||
USB Channels 0 | ||
Number of SPI Channels 3 | ||
Pulse Width Modulation 1(8 x 16 bit) | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 2 | ||
ADC Channels 11(Analogue), 5 (S & H Circuit) | ||
Dimensions 17.9 x 7.5 x 2.35mm | ||
Timers 1(2 x 32 bit), 1(5 x 16 bit) | ||
Number of USART Channels 0 | ||
Number of PCI Channels 0 | ||
Number of I2C Channels 2 | ||
Number of Timers 2 | ||
Number of Ethernet Channels 0 | ||
PWM Resolution 16bit | ||
Number of CAN Channels 0 | ||
- dsPIC33EPXXXGS70X/80X Family, 16-Bit Digital Signal Controllers for Digital Power Applications with Interconnected High-Speed PWM, ADC, PGA and Comparators
- dsPIC33EPXXXGS70X/80X Family, 16-Bit Digital Signal Controllers for Digital Power Applications with Interconnected High-Speed PWM, ADC, PGA and Comparators
dsPIC33EPxxxGS70x/80x, 16-Bit Digital Signal Controllers
Executes 8 operations in 1 Instruction
Fixed-Point math manages overflow and rounding
Zero cycle looping
40-bit Accumulators for high-precision results
Up to 70 MIPS performance
CAN, Dual CAN and USB peripherals
Operational Amplifiers and fast Comparators
ADCs with multiple sample and holds
Peripheral Trigger Generator (PTG) for scheduling complex, high-speed peripheral operations
Sophisticated PWMs with application-specific modes
Support for both 3 V and 5 V power supply operation
