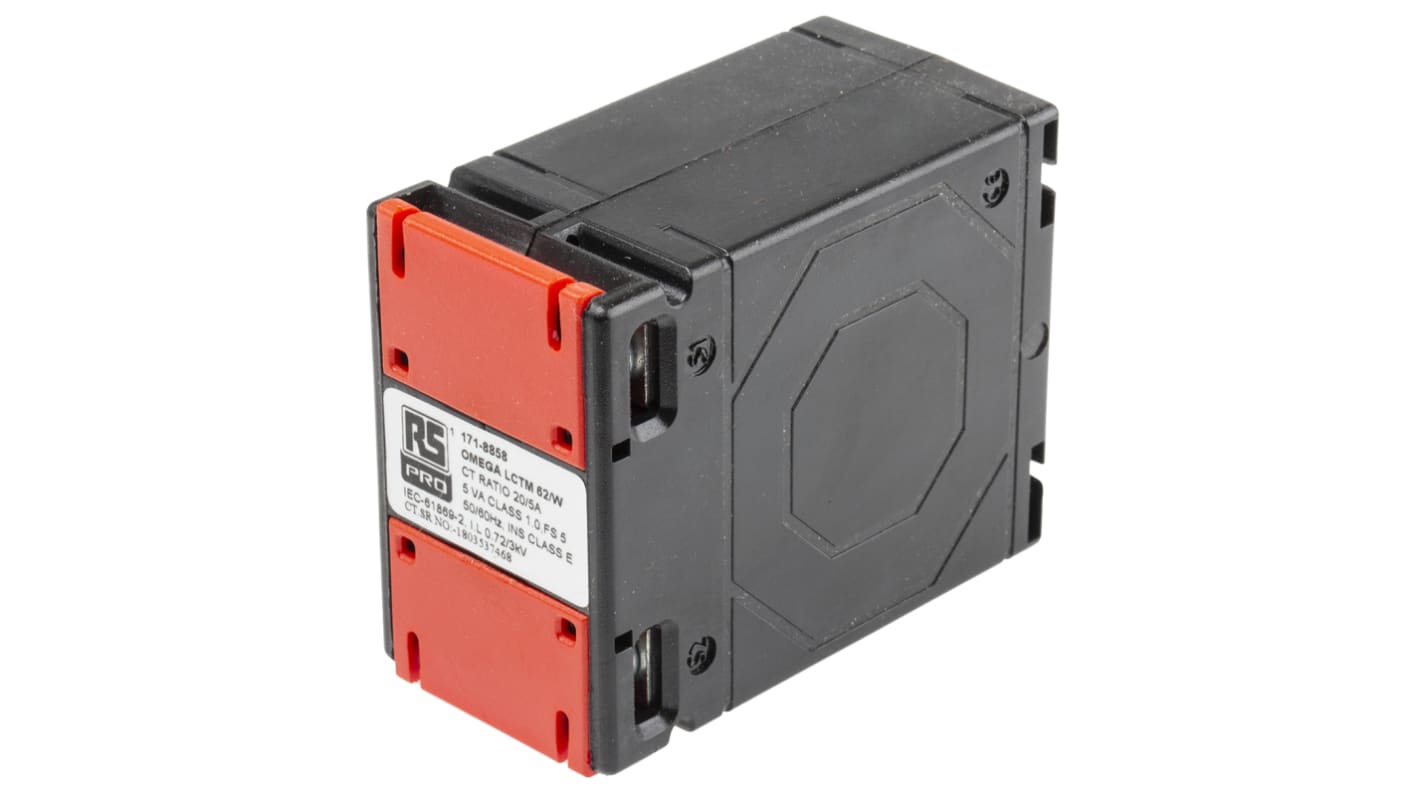

RS PRO Base Mounted Current Transformer, 20A Input, 20:5, 5 A Output, 62 x 40mm Bore
- RS Stock No.:
- 171-8858
- ผู้ผลิต / Manufacturer:
- RS PRO
112 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB838.98
(exc. VAT)
THB897.71
(inc. VAT)
| Units | Per unit |
| 1 + | THB838.98 |
- RS Stock No.:
- 171-8858
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details
RS PRO Current Transformers
The RS PRO current transformer is square type and encapsulated with polycarbonate. These metering CT's feature sealable terminal covers and the current ratio is 20:5. It is a surface mount device.
Features and Benefits
• Accuracy class 1
• Comprehensive class accuracy
• Cost-effective moulded case
• Operating temperature ranges between -5°C and 55°C
• Wire sealable terminal covers
• Comprehensive class accuracy
• Cost-effective moulded case
• Operating temperature ranges between -5°C and 55°C
• Wire sealable terminal covers
Applications
• Commercial electric power distribution
• Electrical substations
• Electrical substations
Certifications
• IEC - 61010 - 2
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Current Ratio | 20:5 |
| Bore Size | 62 x 40mm |
| Transformer Type | Base Mounted |
| Input Current | 20A |
| Output Current | 5 A |
| Overall Height | 78mm |
| Overall Width | 62mm |
| Overall Depth | 40mm |
| Minimum Temperature | -5°C |
| Maximum Temperature | +55°C |
| Mounting Type | Surface Mount |
| Dimensions | 62 x 40 x 78 mm |
