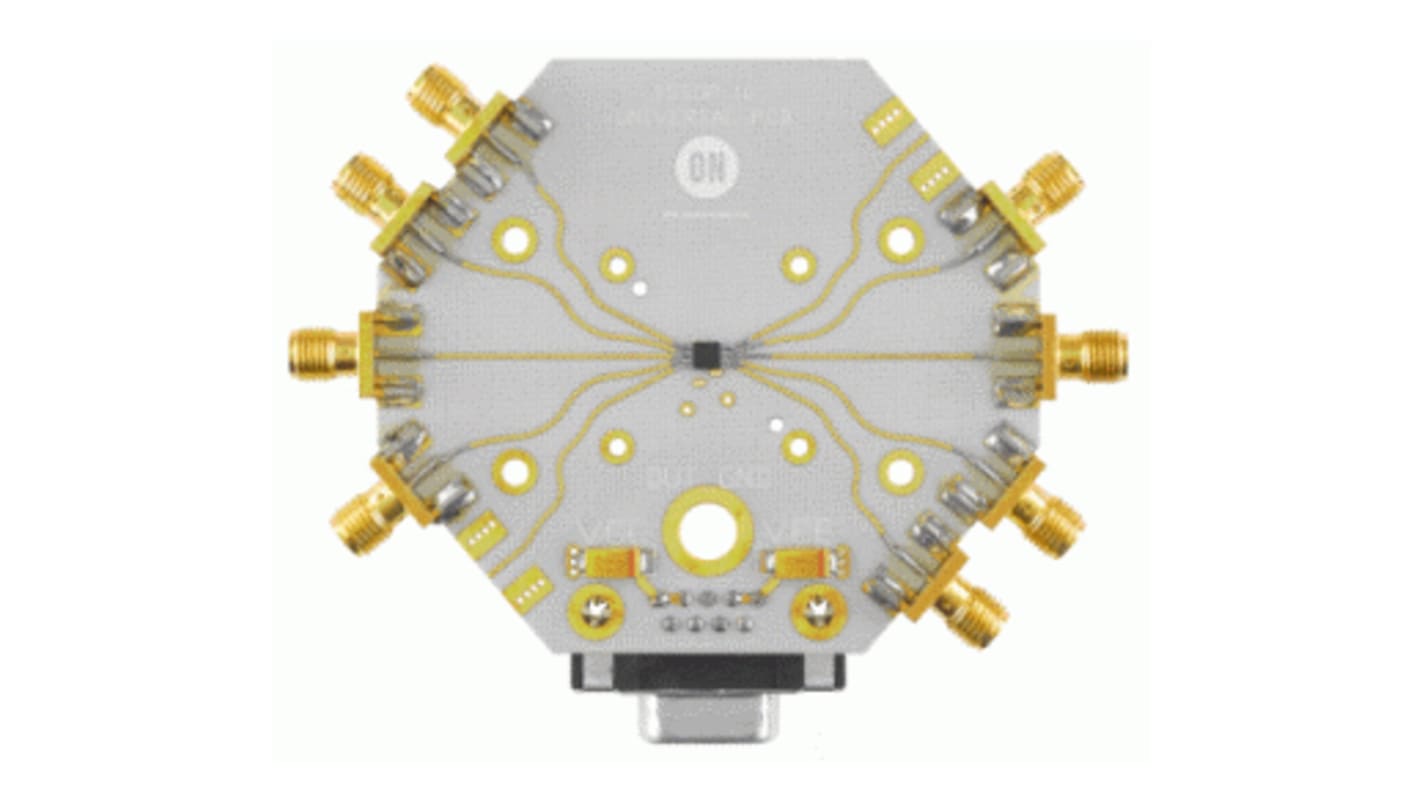

ON Semiconductor NB4N855SMEVB, Clock or Data Translator Evaluation Board for NB4N855SMR4G

  • RS Stock No. 161-0865
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. NB4N855SMEVB
  • ผู้ผลิต / Manufacturer ON Semiconductor
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

The NB4N855SMEVB has been developed as a convenience for the customers interested in performing their own device engineering assessment. This evaluation board provides a high bandwidth 50 ohm controlled impedance environment. The NB4N855SMEVB Manual contains appropriate lab setup, assembly instructions and bill of materials.

Guaranteed Input Clock Frequency up to 1.0 GHz
Guaranteed Input Data Rate up to 1.5 Gb/s
490 ps Maximum Propagation Delay
1.0 ps Maximum RMS Jitter
180 ps Maximum Rise/Fall Times
Single Power Supply, VCC = 3.3 V 10%
Temperature Compensated TIA/EIA-644 Compliant LVDS Outputs
GND + 50 mV to VCC - 50 mV VCMR Range

คุณสมบัติ / Specifications
คุณสมบัติ Value
Clock/Timer Function Clock or Data Translator
Kit Classification Evaluation Board
Featured Device NB4N855SMR4G
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
