Microchip LOAD-n-GO TPG1LG01, In Circuit Service Programmer

  • RS Stock No. 111-5739
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. TPG1LG01
  • ผู้ผลิต / Manufacturer Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

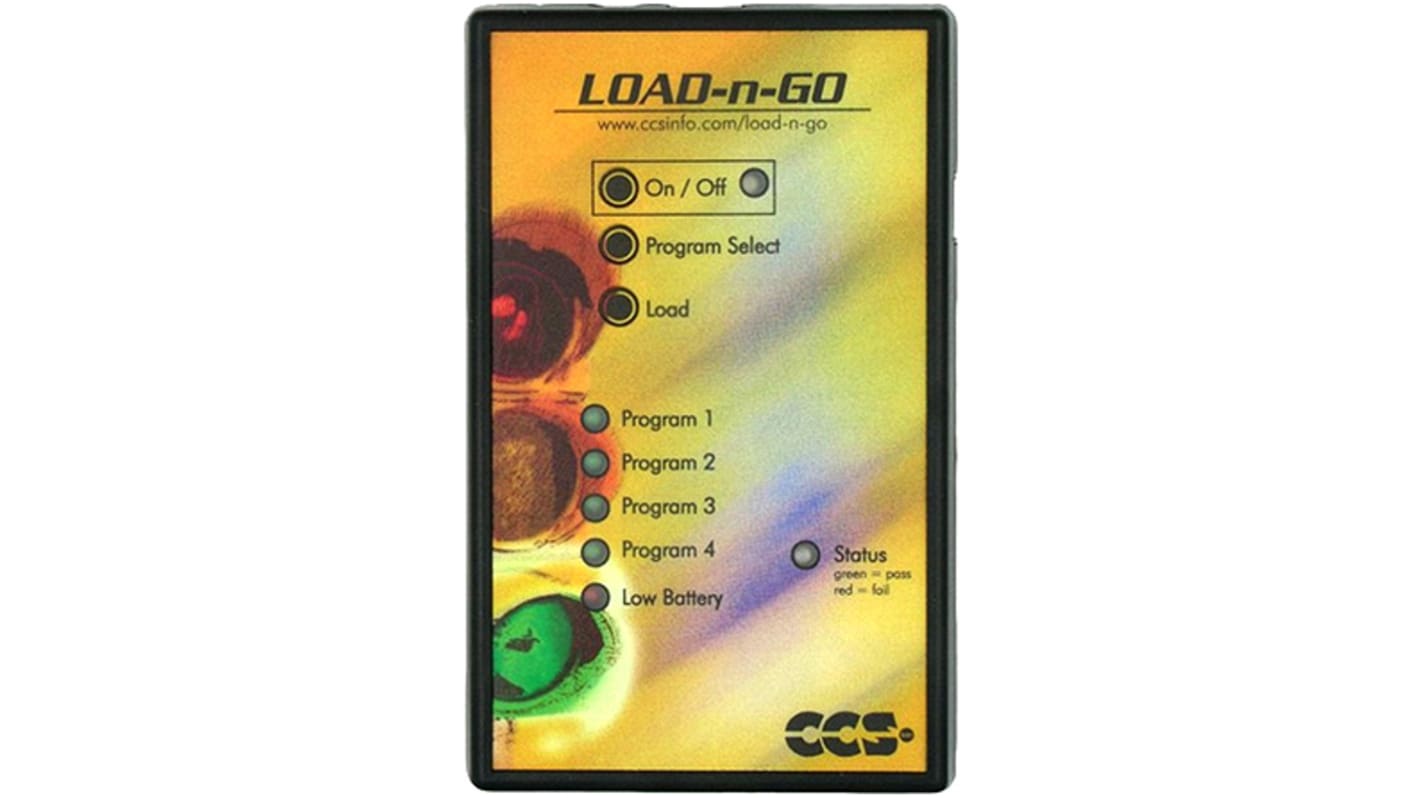

LOAD-n-GO Handheld In-Circuit Programmer

The CCS LOAD-n-GO is a hand-held mobile In-Circuit Serial Programmer (ICSP) that offers a quick and easy 2-step solution for the in-the-field programming of PIC Microcontrollers. The device can store up to four separate firmware images or programs utilising 2 MB of internal flash memory.

Loading firmware and programs to the device is managed via the complimentary CCSLOAD software that features a simple to use GUI. For more detail visit ccsinfo.com/content.php?page=ccsloadsw.

The LOAD-n-GO can also function as an In-Circuit Debugger. To access this functionality the LOAD-n-GO is used in conjunction with the CCS C-Aware IDE Compiler.

Features

Flexible, Handheld, Self-Contained Programmer
Supports all Microchip PIC Microcontrollers and Flash Devices
2 MB Internal Flash
Stores up to Four Separate Firmware Images or Programs
Intuitive CCSLOAD Software for Program Load Management
Flexible Power Options: 4 x AA Batteries, Power Supply or USB
Can Power Target Board with 2.5V, 3.3V, or 5.0V
Includes ICSP Cable with RJ-12 Connector

CCS Programmers

คุณสมบัติ / Specifications
คุณสมบัติ Value
Accessory Type In Circuit Service Programmer
For Use With Flash Devices, 8-Bit PIC Microcontroller, 16-Bit PIC Microcontroller, 32-Bit Microchip PIC MCU
Interface USB
Programmer Name LOAD-n-GO
Memory Type Programmed FLASH
MCU Type Programmed PIC
14 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
คือ THB7,942.56
THB 7,500.22
(exc. VAT)
THB 8,025.24
(inc. VAT)
Units
Per unit
1 +
THB7,500.22
