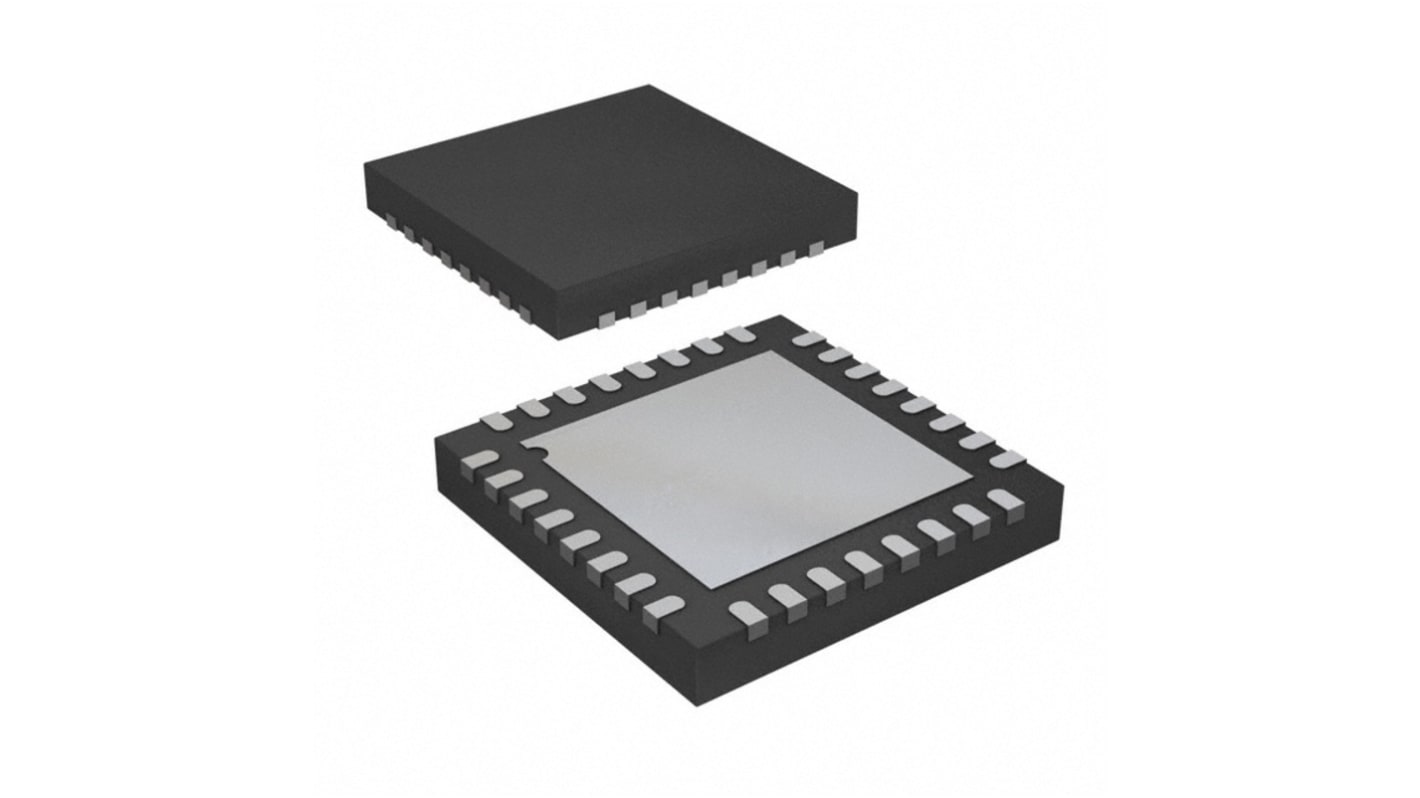

    ADV7391BCPZ, Video Encoder & Decoder IC, 32-Pin LFCSP

    RS Stock No.:
    183-2586P
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    ADV7391BCPZ
    ผู้ผลิต / Manufacturer:
    Analog Devices
    Analog Devices
    ดูหมวดหมู่นี้
    280 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each (Supplied in a Tray)

    THB568.89

    (exc. VAT)

    THB608.71

    (inc. VAT)

    UnitsPer unit
    1 +THB568.89
    ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
    RS Stock No.:
    183-2586P
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    ADV7391BCPZ
    ผู้ผลิต / Manufacturer:
    Analog Devices
    COO (Country of Origin):
    TW

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    รายละเอียดสินค้า / Product Details

    The ADV7390/ADV7391/ADV7392/ADV7393 are a family of high speed, digital-to-analog video encoders on single monolithic chips. Three 2.7 V/3.3 V 10-bit video digital-to-analog converters (DACs) provide support for composite (CVBS), S-Video (Y-C), or component (YPrPb/RGB) analog outputs in either standard definition (SD) or high definition (HD) video formats. Optimized for low power operation, occupying a minimal footprint and requiring few external components, these encoders are ideally suited to portable and power sensitive applications requiring TV-out functionality. Cable detection and DAC automatic power-down features ensure that power consumption is kept to a minimum. The ADV7390/ADV7391 have an 8-bit video input port that supports SD video formats over a software defined radio (SDR) interface and HD video formats over a double data rate (DDR) interface. The ADV7392/ADV7393 have a 16-bit video input port that can be configured in a variety of ways. SD RGB input is supported. All members of the family support embedded EAV/SAV timing codes, external video synchronization signals, and the I2C communication protocol



    คุณสมบัติ / Specifications

    คุณสมบัติValue
    IC TypeVideo Encoder & Decoder IC
    Power Supply TypeSingle
    Mounting TypeSurface Mount
    Package TypeLFCSP
    Pin Count32
    Number of DACs3
    Typical Operating Supply Voltage3.3 V
    Dimensions5.1 x 5.1 x 0.75mm
    ADC/DAC Resolution10bit
    Standard Input TypeRGB, YCbCr2
    Maximum Operating Temperature+85 °C
    Minimum Operating Temperature-40 °C
