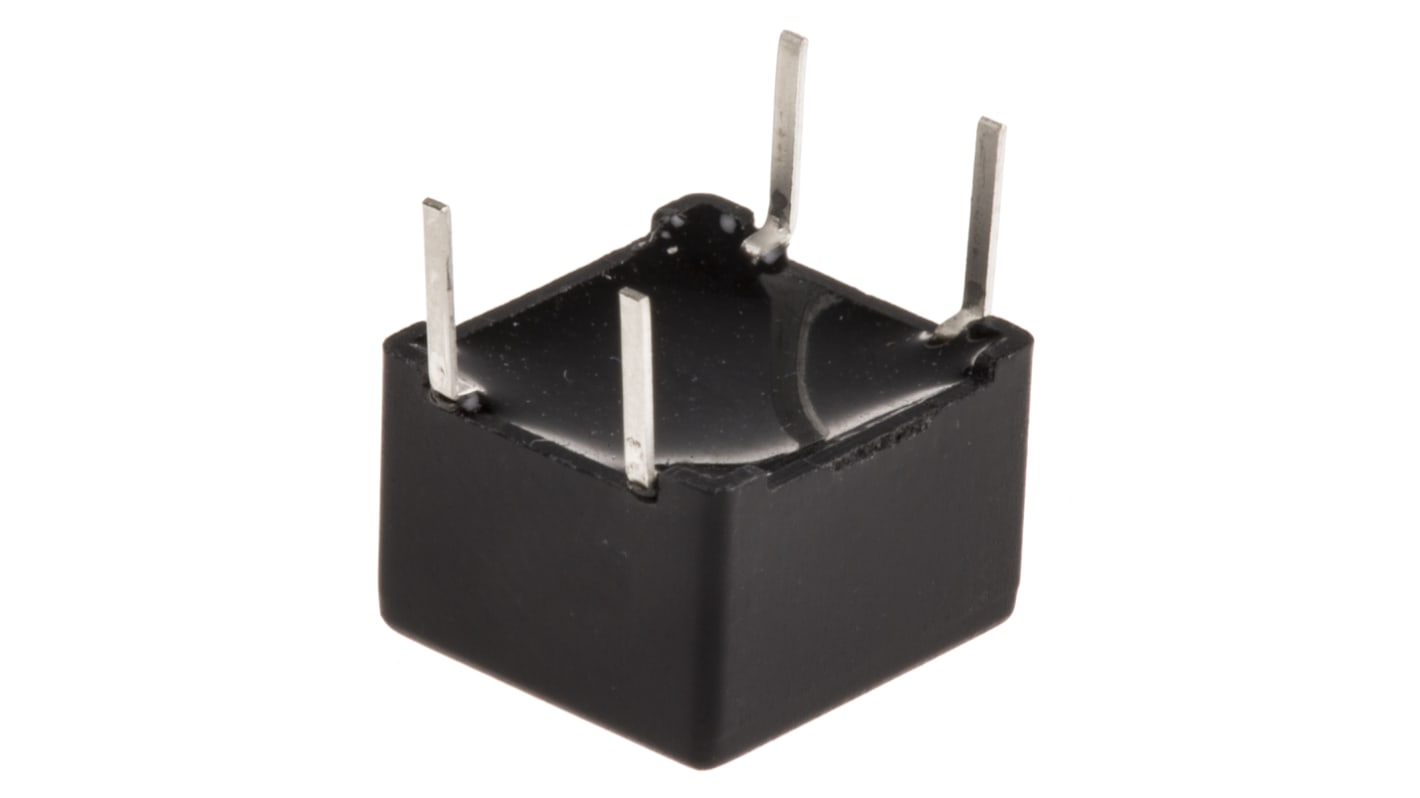

Through Hole Audio Transformer

  • RS Stock No. 106-8577
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. DA103C
  • ผู้ผลิต / Manufacturer Murata Power Solutions
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

Low Profile Digital Audio Transformers

From Murato Power Solutions, a range of low profile digital audio transformers designed to improve the balance between transmitter and receiver circuitry. Ideal for use wherever high-performance audio transmission is required, these digital audio transformers are fully encapsulated and have industry standard pinout. They are well suited to hi-fi or video game applications.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Dimensions 9 x 6.35 x 10.16mm
Mounting Type Through Hole
Depth 10.16mm
Length 9mm
Width 6.35mm
Minimum Operating Frequency 100kHz
Minimum Temperature 0°C
Turns Ratio 1:1
Maximum Operating Frequency 3MHz
Maximum Temperature +70°C
Isolation Voltage 2kV
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 20/07/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tube of 50)
THB 45.96
(exc. VAT)
THB 49.18
(inc. VAT)
Units
Per unit
Per Tube*
50 - 50
THB45.96
THB2,298.00
100 - 150
THB45.271
THB2,263.55
200 - 450
THB44.337
THB2,216.85
500 - 950
THB43.384
THB2,169.20
1000 +
THB42.896
THB2,144.80
*ตัวบ่งบอกราคา / price indicative
