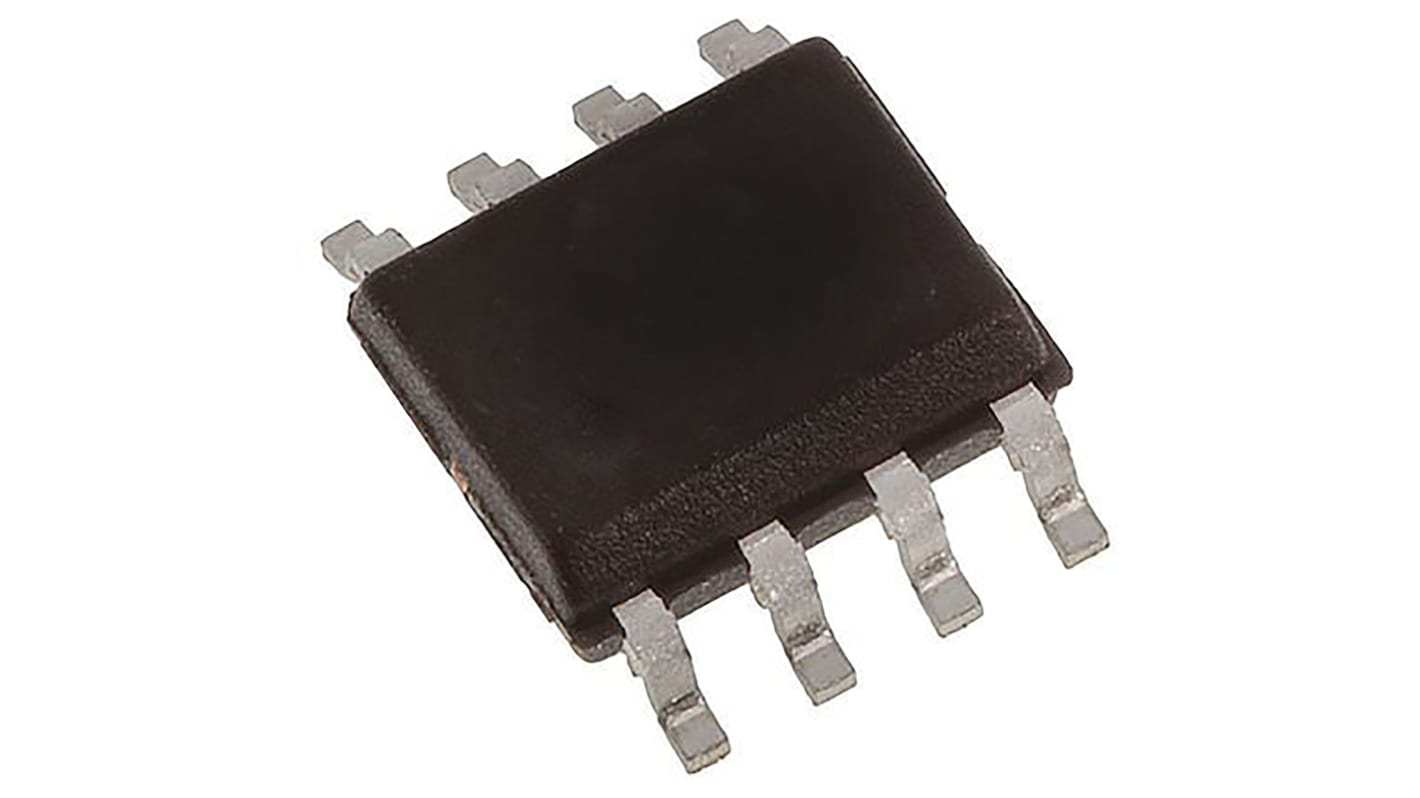

Linear Technology LTC1569CS8-7#PBF, Active Filter, Low Pass Filter, 10th Order 300kHz, 8-Pin SOIC

  • RS Stock No. 761-9092
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. LTC1569CS8-7#PBF
  • ผู้ผลิต / Manufacturer Analog Devices
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

Filter ICs, Linear Technology

Linear Technology filter ICs present continuous time and switched capacitor filters that offer flexibility as well as being easy to use. The active filters can support low pass and a wide range of frequencies. They are suitable for use in Phased locked loop, smoothing filters, discrete RC active filter replacement and many more applications.

Supports Cutoff Frequencies up to 360 kHz
Operating from voltages up to 15V
Architectures: Proprietary, Switched Capacitor and Continuous Time
Forms to 2nd,4th,5th, 8th and 10th Order Low-pass Filters and Universal Filters
Available in a variety of Surface Mount (SMT) or through-hole packages

คุณสมบัติ / Specifications
คุณสมบัติ Value
Filter Type Low Pass Filter
Maximum Order 10th
Cut-off Frequency 300kHz
Power Supply Type Dual, Single
Typical Single Supply Voltage 3.7 to 4.6 V
Typical Dual Supply Voltage ±5V
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Dimensions 5.004 x 3.988 x 1.5mm
Height 1.5mm
Operating Temperature Range 0 to +70 °C
Length 5mm
Maximum Operating Temperature +70 °C
Width 3.988mm
Minimum Operating Temperature 0 °C
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 21/08/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 435.76
(exc. VAT)
THB 466.26
(inc. VAT)
Units
Per unit
1 - 9
THB435.76
10 - 49
THB336.04
50 - 99
THB329.22
100 - 249
THB322.38
250 +
THB315.99
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
