- RS Stock No.:
- 167-4999
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BNX028-01L
- ผู้ผลิต / Manufacturer:
- Murata
217 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (On a Reel of 400)
THB127.915
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB136.869
(รวมภาษีมูลค่าเพิ่ม)
Units | ต่อหน่วย | ต่อม้วน* |
---|---|---|
400 - 400 | THB127.915 | THB51,166.00 |
800 - 1200 | THB125.101 | THB50,040.40 |
1600 + | THB122.415 | THB48,966.00 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 167-4999
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BNX028-01L
- ผู้ผลิต / Manufacturer:
- Murata
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
รายละเอียดสินค้า / Product Details

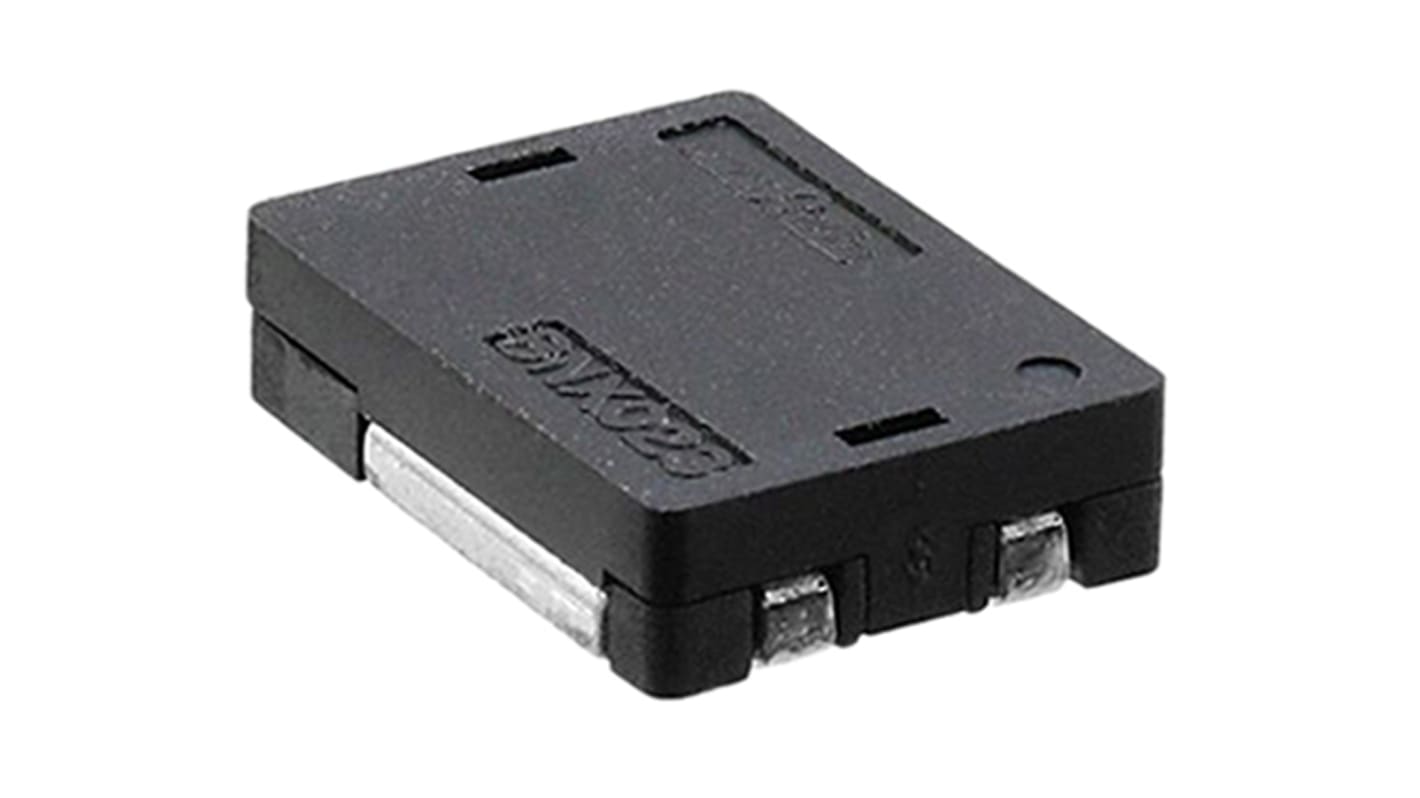

BNX02 Series
High performance SMD EMI suppression filter, providing excellent noise suppression on DC power lines.
Large rated current (10A - 15A) and Low DC Resistance. (0.43m ohm - Typ.)
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz
Mounting area and volume is reduced
Effective for impulse noise such as electro-static discharge or spike noise
Applications include:
Displays (PDP/LCD-TV)
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
Digital AV equipment
Amusement equipment
PC peripheral equipment
Industry equipment, measurement equipment, power supplies
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Series | BNX02 |
Maximum Current Rating | 15A |
Maximum Voltage Rating | 16 V dc |
Mounting Type | Surface Mount |
Operating Frequency | 1GHz |
Termination Style | Solder |
Dimensions | 12.1 x 9.1 x 3.5mm |
Depth | 9.1mm |
Height | 3.5mm |
Length | 12.1mm |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -40°C |
Capacitance | 47µF |
