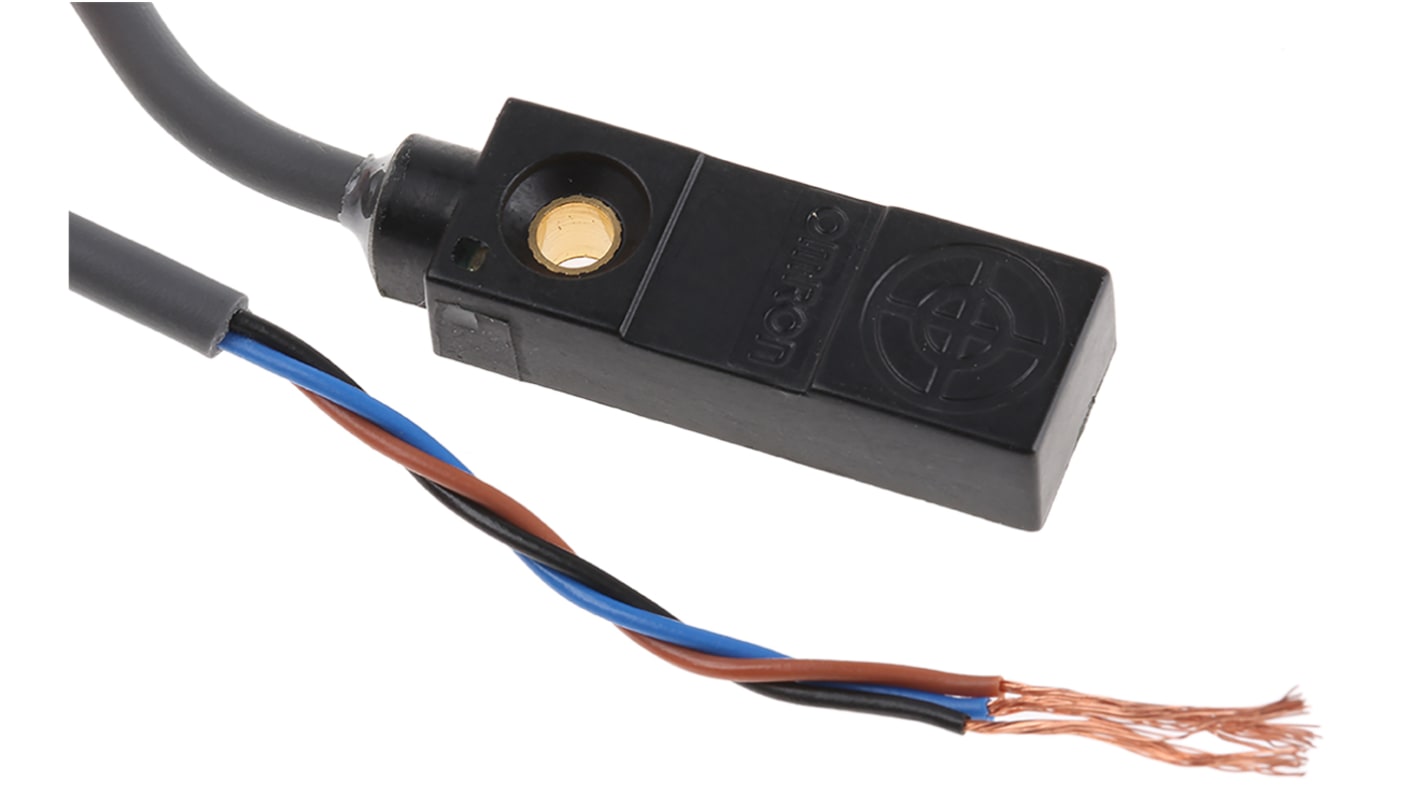

Omron Rectangular Proximity Sensor, 3 mm Detection, 12 → 24 V dc
- RS Stock No.:
- 808-6251
- Mfr. Part No.:
- TL-W3MB1
- Brand:
- Omron
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
THB3,061.18
(exc. VAT)
THB3,275.46
(inc. VAT)
- RS Stock No.:
- 808-6251
- Mfr. Part No.:
- TL-W3MB1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Body Style | Rectangular | |
| Detection Range | 3 mm | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 27mm | |
| IP Rating | IP67 | |
| Mounting Type | Flange Mount | |
| Housing Material | ABS | |
| Width | 10mm | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Depth | 6mm | |
| Switching Current | 100 mA | |
| Maximum Switching Frequency | 600Hz | |
| Shielding | Unshielded | |
| Maximum Operating Temperature | +70°C | |
| Reverse Polarity Protection | Yes | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Body Style Rectangular | ||
Detection Range 3 mm | ||
Supply Voltage 12 → 24 V dc | ||
Length 27mm | ||
IP Rating IP67 | ||
Mounting Type Flange Mount | ||
Housing Material ABS | ||
Width 10mm | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature -25°C | ||
Depth 6mm | ||
Switching Current 100 mA | ||
Maximum Switching Frequency 600Hz | ||
Shielding Unshielded | ||
Maximum Operating Temperature +70°C | ||
Reverse Polarity Protection Yes | ||
TL-W3 Inductive Sensors
Features and benefits
Space saving, low profile rigid aluminium die cast housing
All provided with an operation indicator
Mounting front or rear of the housing
Protected from water or oil splashes
Standards
IEC IP67
