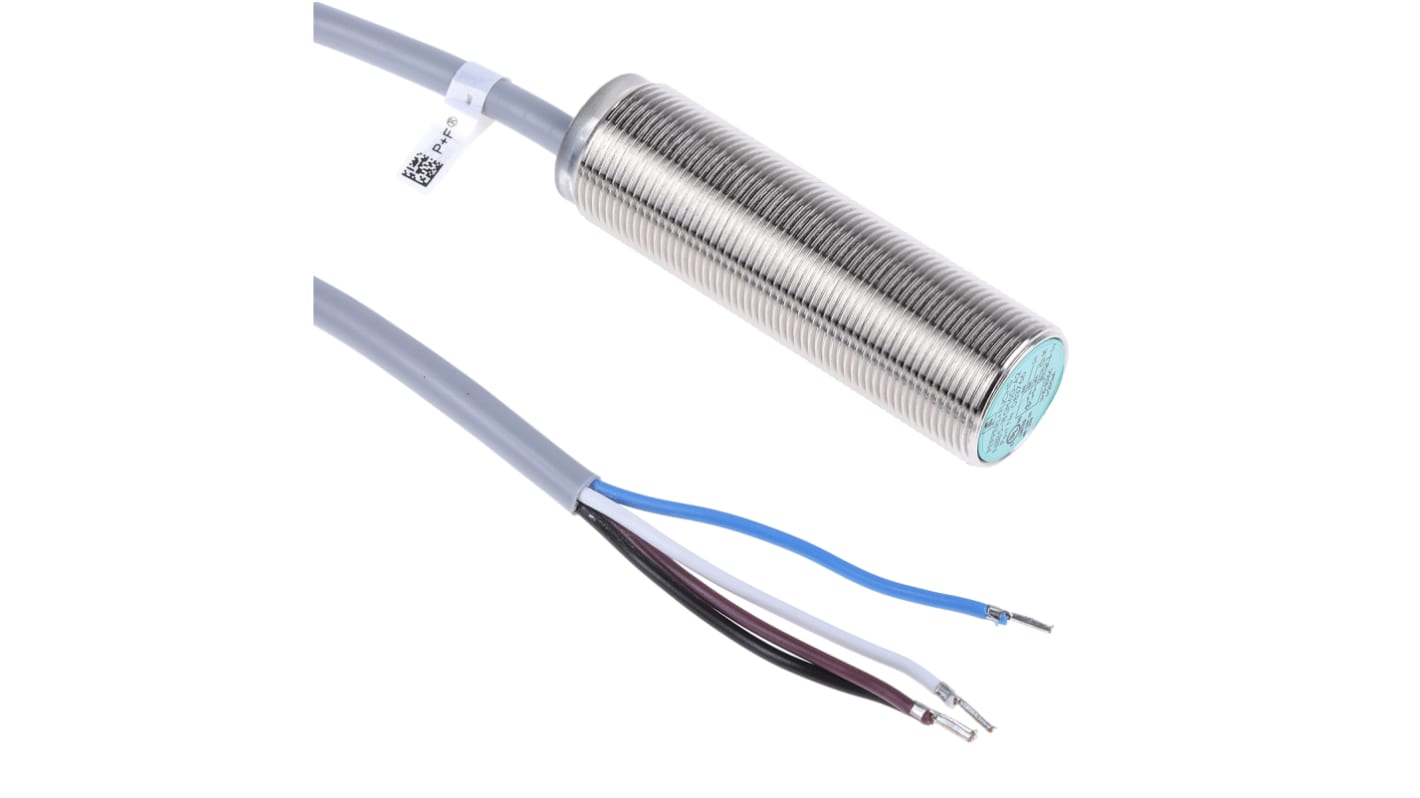

Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M18 x 1, 5 mm Detection, PNP Output, 10 → 30 V dc, IP67
- RS Stock No.:
- 312-9536
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NBB5-18GM60-A2
- ผู้ผลิต:
- Pepperl + Fuchs
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
- RS Stock No.:
- 312-9536
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NBB5-18GM60-A2
- ผู้ผลิต:
- Pepperl + Fuchs
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Technology | Inductive | |
| Thread Size | M18 x 1 | |
| Body Style | Barrel | |
| Output Type | PNP-NO/NC | |
| Detection Range | 5 mm | |
| Terminal Type | Cable | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 60mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Flush Mount | |
| Switching Current | 200 mA | |
| Maximum Switching Frequency | 800Hz | |
| Maximum Operating Temperature | +70°C | |
| Housing Material | Nickel Plated Brass | |
| Reverse Polarity Protection | Yes | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Technology Inductive | ||
Thread Size M18 x 1 | ||
Body Style Barrel | ||
Output Type PNP-NO/NC | ||
Detection Range 5 mm | ||
Terminal Type Cable | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP67 | ||
Length 60mm | ||
Maximum DC Voltage 30V | ||
Mounting Type Flush Mount | ||
Switching Current 200 mA | ||
Maximum Switching Frequency 800Hz | ||
Maximum Operating Temperature +70°C | ||
Housing Material Nickel Plated Brass | ||
Reverse Polarity Protection Yes | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- ID
Four-wire Threaded Barrel Sensors
Features and benefits
Nickel plated brass housing with PBT sensing face
LED indication
Embeddable
IP67
Operating temperature range -25 → +70°C
No load current 20mA
EN60947-5-2
Short circuit and reverse polarity protection
Configurable N/O or N/C contacts
LED indication
Embeddable
IP67
Operating temperature range -25 → +70°C
No load current 20mA
EN60947-5-2
Short circuit and reverse polarity protection
Configurable N/O or N/C contacts
Pepperl + Fuchs
