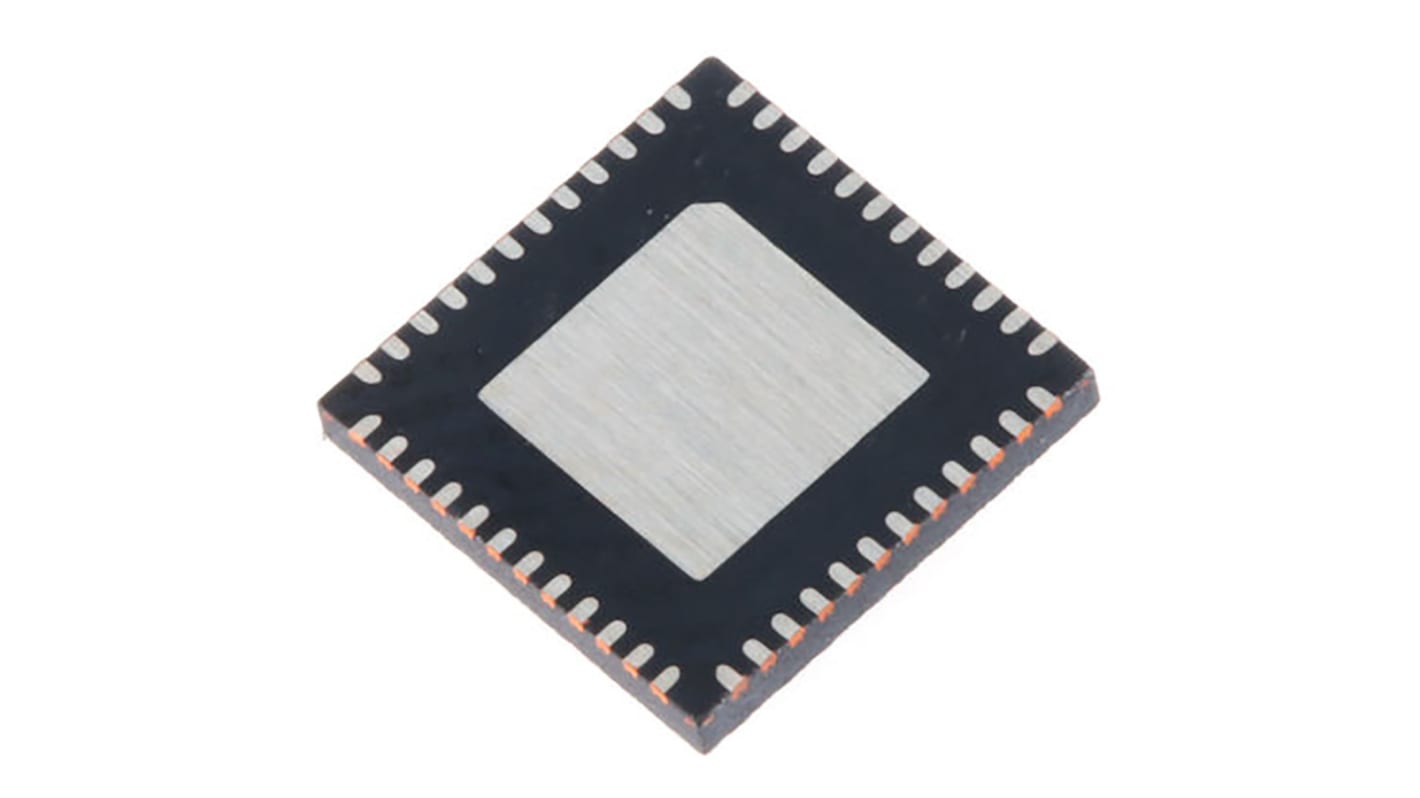

Silicon Labs C8051F585-IM, 8bit 8051 Microcontroller, 50MHz, 96 kB Flash, 48-Pin QFN

  • RS Stock No. 168-9998
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. C8051F585-IM
  • ผู้ผลิต / Manufacturer Silicon Labs
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
รายละเอียดสินค้า / Product Details

C8051F58x/59x Microcontrollers, Silicon Labs

The Silicon Labs C8051F58x/59x automotive and industrial microcontroller (MCU) devices are ideal for applications needing significant performance (50 MIPS) and integration (12-bit ADC) into a constrained space. Available in small form factor packages; 32-pin QFN/QFP (5 x 5 mm), 40-pin QFN (6 x 6 mm) and 48-pin QFN/QFP (7 x 7 mm).

Pin-for-pin compatibility exists between the C8051F58x/59x and C8051F55x/56x/57x series and between the C8051F50x/1x and C8051F54x series.

On-chip Voltage Regulator, Power-On Reset, VDD monitor, Watchdog Timer and clock oscillator combine to make these microcontrollers standalone System-on-a-Chip solutions.

Flash memory can be reprogrammed even when in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. Using the software you have full control over all peripherals which you can shut down to save power.

They are specified for 2.7 V to 3.6 V operation over the automotive and industrial temperature range (-40°C to +125°C).

คุณสมบัติ / Specifications
คุณสมบัติ Value
Family Name C8051F
Package Type QFN
Mounting Type Surface Mount
Pin Count 48
Device Core 8051
Data Bus Width 8bit
Program Memory Size 96 kB
Maximum Frequency 50MHz
RAM Size 8 kB
Number of PWM Units 1
ADC Channels 32
Number of SPI Channels 1
Typical Operating Supply Voltage 1.8 → 5.25 V
Timers 6 x 16 bit
Dimensions 7 x 7 x 0.95mm
Number of Timers 6
Pulse Width Modulation 1 (12 x 16 bit)
Program Memory Type Flash
Number of ADC Units 1
Number of I2C Channels 1
Maximum Operating Temperature +125 °C
Length 7mm
ADCs 1 (32 x 12 bit)
Timer Resolution 16bit
Width 7mm
PWM Channels 12
Height 0.95mm
Number of UART Channels 2
Instruction Set Architecture MCU
PWM Resolution 16bit
Minimum Operating Temperature -40 °C
ADC Resolution 12bit
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 12/05/2020, จัดส่งภายใน (delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each (In a Tube of 43)
THB 228.64
(exc. VAT)
THB 244.64
(inc. VAT)
Units
Per unit
Per Tube*
43 +
THB228.64
THB9,831.52
*ตัวบ่งบอกราคา / price indicative
