Seeit PIC-01 PIC-01, PIC Microcontroller Programmer RS-232 for EEPROM 24Cxx, PIC12Fxxx, PIC16Cxxx, PIC16Fxxx, PIC18Fxxxx

  • RS Stock No. 454-6752
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. PIC-01
  • ผู้ผลิต / Manufacturer Seeit
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
รายละเอียดสินค้า / Product Details

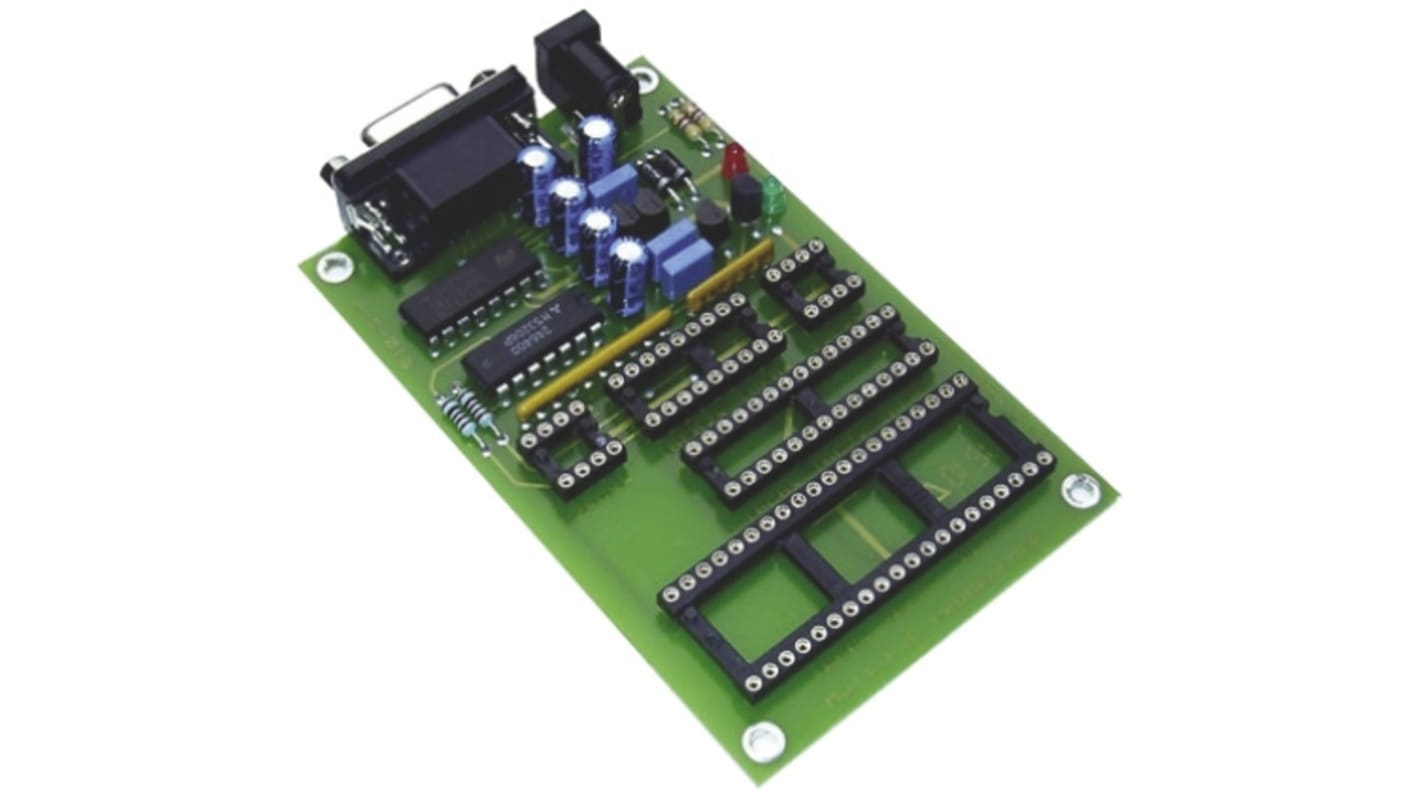

Seeit PIC Microcontrollers Programmer

The PIC-01 allows you to program Microchip serial PIC microcontrollers, (PIC12Cxxx, PIC12CExxx, PIC12Fxxx, PIC16Cxxx, PIC16CExxx, PIC16Fxxx, and PIC18Fxxxx families), as well as serial EEPROMs Series, (24Cxx family).
Equipped with 5 tulip sockets, supports components in DIP packages of 8, 18, 28 and 40 pins.
It is equipped with a true RS-232 interface for connection to the serial port (cable supplied) compatible with any PC.
Accepts files in BIN, HEX, H8, H16 and EEP formats
Program editing in the buffer
Functions include read, program, blank test and erase.
Configuration registers of the processor can be edited.
The programmer works with Windows 95/98/ME/NT/2000/XP operating system

Note

Requires a 12V DC unregulated or 16V regulated power supply

Supplied with

- A programmer (ISO9002 compliant)
- A computer serial extension cable
- Software
- Instruction manual

PC Based Programmers

คุณสมบัติ / Specifications
คุณสมบัติ Value
Accessory Type PIC Microcontroller Programmer
For Use With EEPROM 24Cxx, PIC12Fxxx, PIC16Cxxx, PIC16Fxxx, PIC18Fxxxx
Interface Serial RS-232
Programmer Name PIC-01
Memory Type Programmed EEPROM
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
