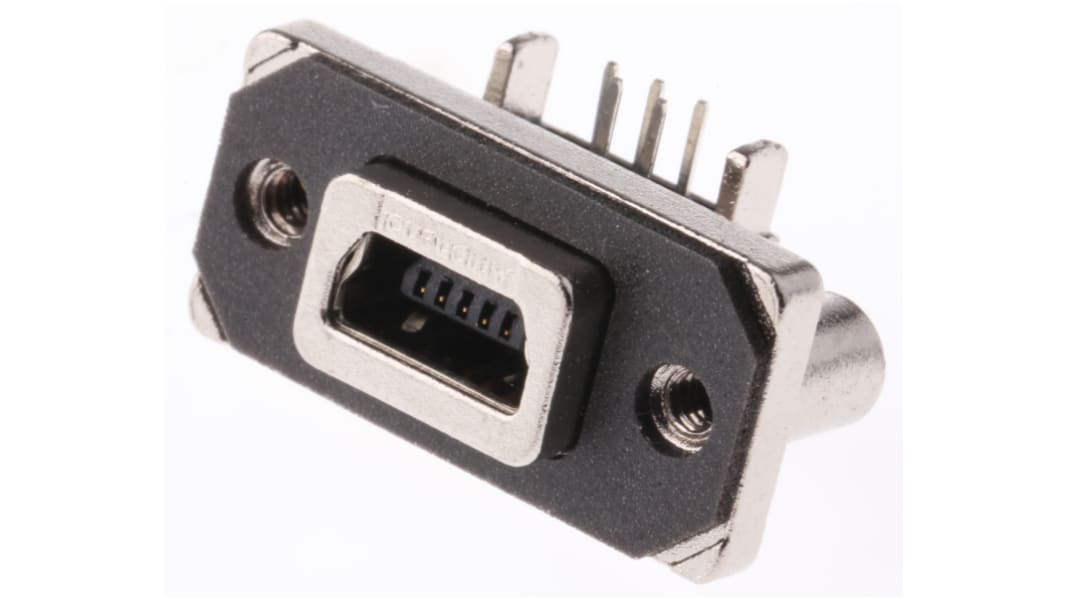

Amphenol, MUSB USB Connector, Through Hole, Socket 2.0 B, Solder, Right Angle

  • RS Stock No. 725-5985
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. MUSBB15134
  • ผู้ผลิต / Manufacturer Amphenol
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

USB Connectors, Harsh Environment - MUSB Series

Amphenol MUSB series USB connectors provide the ideal solution for data transfer in harsh environments that demand a robust and reliable connector . These USB connectors are underwater submersible rather than just water resistant in both mated and unmated conditions. Suitable for industrial, military communications, mobile and other demanding connector situations.

Features and Benefits:
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C

Amphenol USB & RJ45 Connectors, Harsh Environment

คุณสมบัติ / Specifications
คุณสมบัติ Value
Gender Female
Mounting Type Through Hole
USB Type B
Termination Method Solder
USB Version 2.0
Body Orientation Right Angle
Series MUSB
Contact Material Phosphor Bronze
Minimum Operating Temperature -40.0°C
Maximum Operating Temperature +85°C
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
คือ THB377.23
THB 308.13
(exc. VAT)
THB 329.70
(inc. VAT)
Units
Per unit
1 - 24
THB308.13
25 - 74
THB297.44
75 - 199
THB281.40
200 - 399
THB264.40
400 +
THB254.11
