- RS Stock No.:
- 163-7349
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- T2050H-6G-TR
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 28/03/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (On a Reel of 1000)
THB33.403
(exc. VAT)
THB35.741
(inc. VAT)
Units | Per unit | Per Reel* |
1000 - 1000 | THB33.403 | THB33,403.00 |
2000 - 3000 | THB32.401 | THB32,401.00 |
4000 + | THB31.429 | THB31,429.00 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 163-7349
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- T2050H-6G-TR
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
H-Series Triacs are 3-quadrant, AC switches with simple and low-current gate drive. They have the sparkless and non-ageing features of semiconductors ideally suited to various mains voltage appliances. The simple phase angle firing of the gate allows simple dimming for lighting and variable speeds for universal motors. Specified with a maximum junction temperature of 150C, they are particularly suited to hot environments and to PCB designs requiring high power density. The devices feature a 600 V blocking voltage and a maximum current of 30 A with standard or logic-level gate sensitivity. They are available in DPAK, IPAK, D²PAK, I²PAK or TO-220(I) packages
Medium current Triac
150 °C max. Tj turn-off commutation
Low thermal resistance with clip bonding
Very high 3 quadrant commutation capability
150 °C max. Tj turn-off commutation
Low thermal resistance with clip bonding
Very high 3 quadrant commutation capability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Rated Average On-State Current | 20A |
Mounting Type | Surface Mount |

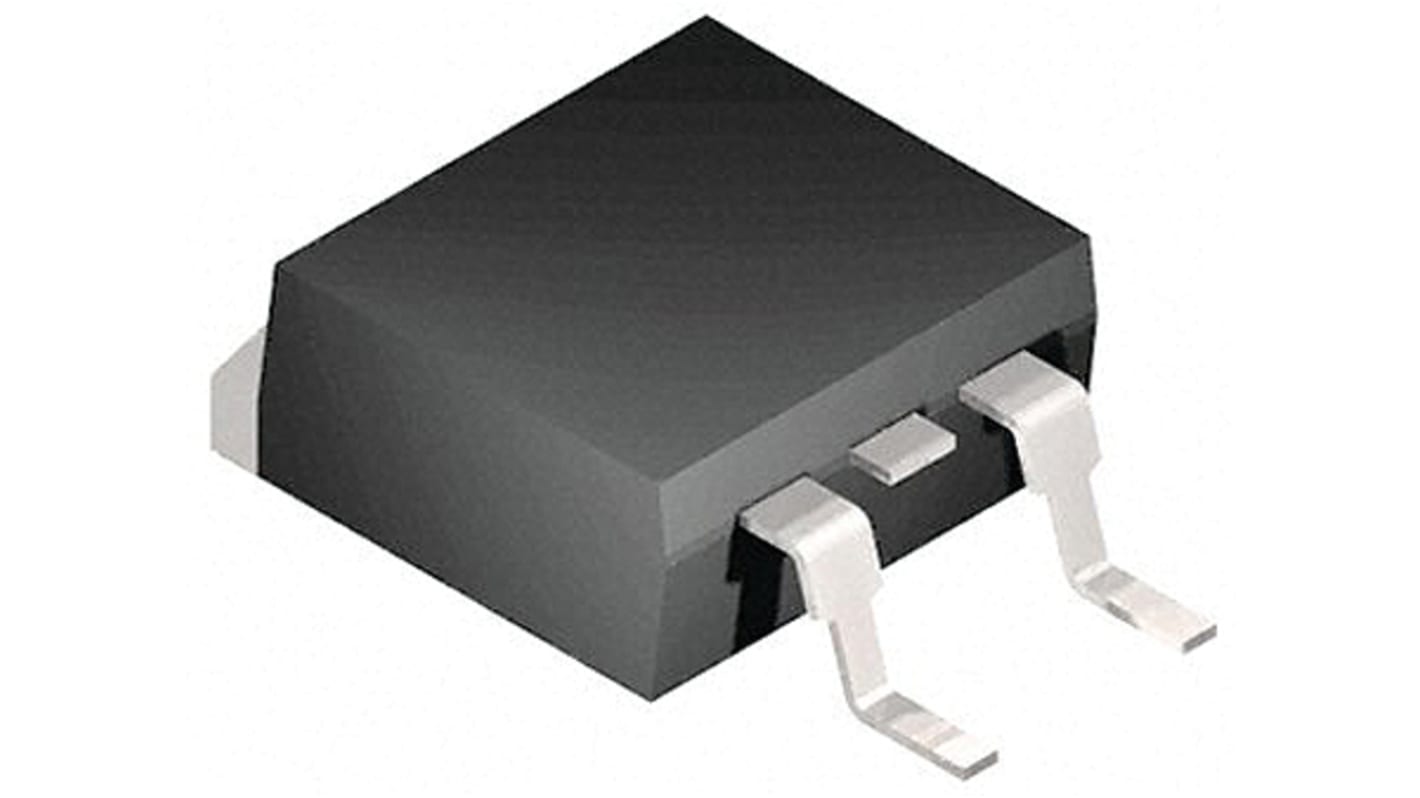

Package Type | D2PAK |
Maximum Gate Trigger Current | 50mA |
Repetitive Peak Reverse Voltage | 600V |
Surge Current Rating | 210A |
Pin Count | 2 + Tab |
Maximum Gate Trigger Voltage | 1V |
Maximum Holding Current | 75mA |
Dimensions | 10.28 x 9.35 x 4.6mm |
Length | 10.28mm |
Width | 9.35mm |
Height | 4.6mm |
Peak On-State Voltage | 1.5V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +150 °C |
Repetitive Peak Off-State Current | 6.2mA |
