- RS Stock No.:
- 401-670
- ผู้ผลิต / Manufacturer:
- RS PRO
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 26/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB135.50
(exc. VAT)
THB144.98
(inc. VAT)
Units | Per unit |
1 - 49 | THB135.50 |
50 - 99 | THB132.67 |
100 - 249 | THB128.61 |
250 - 1249 | THB125.49 |
1250 + | THB103.28 |
- RS Stock No.:
- 401-670
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details

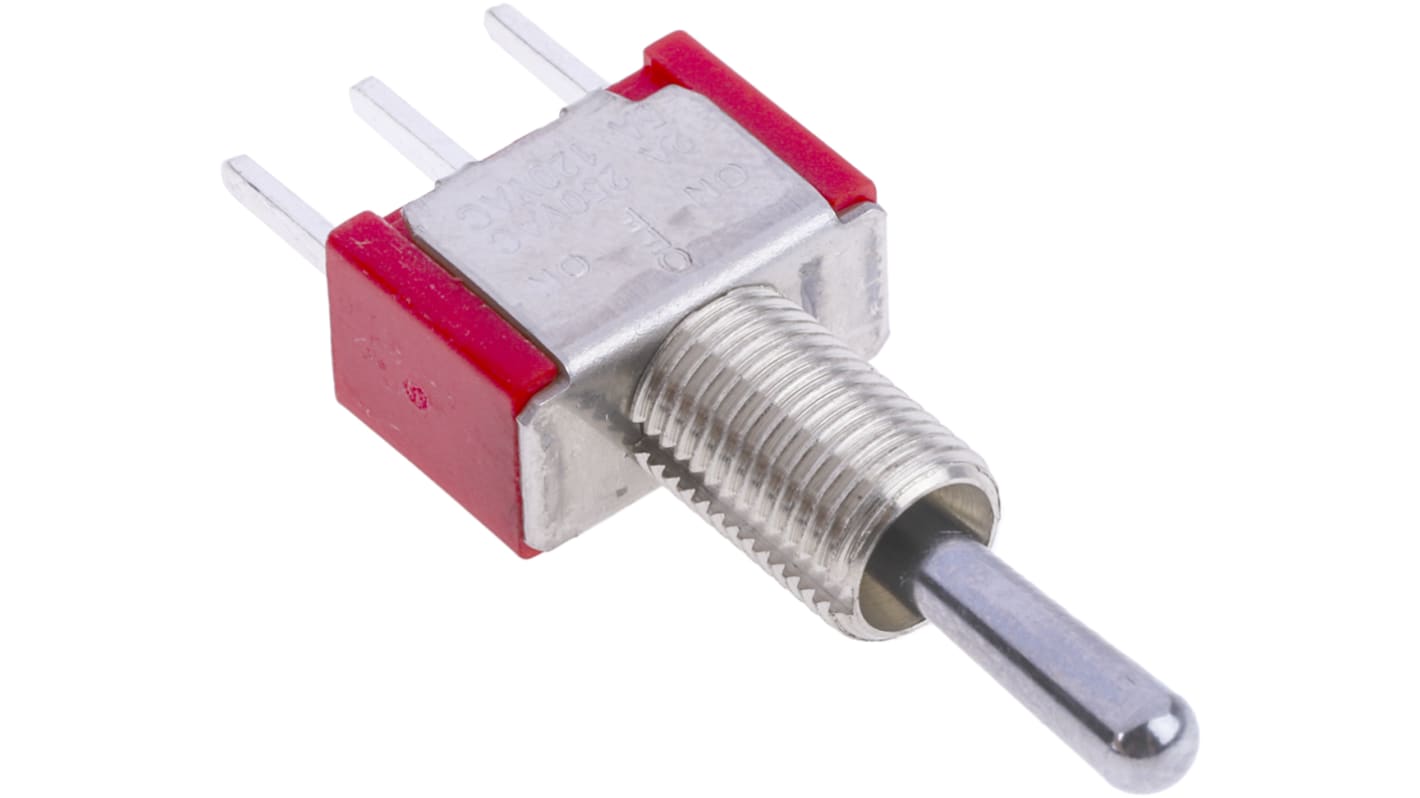

RS PRO SPDT Toggle Switch, On-Off-On, PCB
Choose this miniature SPDT (Single Pole Double Throw) toggle switch from RS PRO to control two circuits using one actuator. It's typically used in industrial machinery and assembly lines to power operations and lighting indicators.
This switch features a chrome-plated brass actuator that's sturdy and resistant to corrosion. It's easy to operate and locks into position to prevent accidental switching. Silver contacts ensure quick and reliable connections, while through-hole terminals make it easy to secure the switch onto a PCB (Printed Circuit Board). Plus, epoxy seals ensure there's no breakage due to contamination while you're soldering.
The unit is rigorously tested for quality and durability. A mechanical life of 40,000 make-and-break cycles means you can be confident of long-lasting usage. A wide operating temperature range of -30°C to +85°C makes this switch suitable for use in harsh industrial settings.
This switch features a chrome-plated brass actuator that's sturdy and resistant to corrosion. It's easy to operate and locks into position to prevent accidental switching. Silver contacts ensure quick and reliable connections, while through-hole terminals make it easy to secure the switch onto a PCB (Printed Circuit Board). Plus, epoxy seals ensure there's no breakage due to contamination while you're soldering.
The unit is rigorously tested for quality and durability. A mechanical life of 40,000 make-and-break cycles means you can be confident of long-lasting usage. A wide operating temperature range of -30°C to +85°C makes this switch suitable for use in harsh industrial settings.
Features and Benefits
Actuator length of 10.41 mm
Brass actuator material
SPDT contact configuration
Contact current rating of 5 A at 250 V AC
Copper alloy contact material
Contact resistance of 10 mΩ
Operating temperature range of -30°C to +85°C
Mechanical life of 40000 cycles
PCB mounting type
Meets lead-free standards and is RoHS (Restriction of Hazardous Substances) compliant
On-off-on switch operation
Through-hole terminal type
Brass actuator material
SPDT contact configuration
Contact current rating of 5 A at 250 V AC
Copper alloy contact material
Contact resistance of 10 mΩ
Operating temperature range of -30°C to +85°C
Mechanical life of 40000 cycles
PCB mounting type
Meets lead-free standards and is RoHS (Restriction of Hazardous Substances) compliant
On-off-on switch operation
Through-hole terminal type
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-Off-On |
Contact Current Rating | 5 A @ 250 V ac |
Mounting Type | PCB |
Terminal Type | Through Hole |
Actuator Length | 10.41mm |
Actuator Material | Brass |
Contact Material | Copper Alloy |
Contact Resistance | 0.01Ω |
Maximum Operating Temperature | +85°C |
Mechanical Life | 40000Cycles |
Operating Temperature Range | -30 → +85°C |
Minimum Operating Temperature | -30°C |
Standards Met | RoHS & Lead Free |
