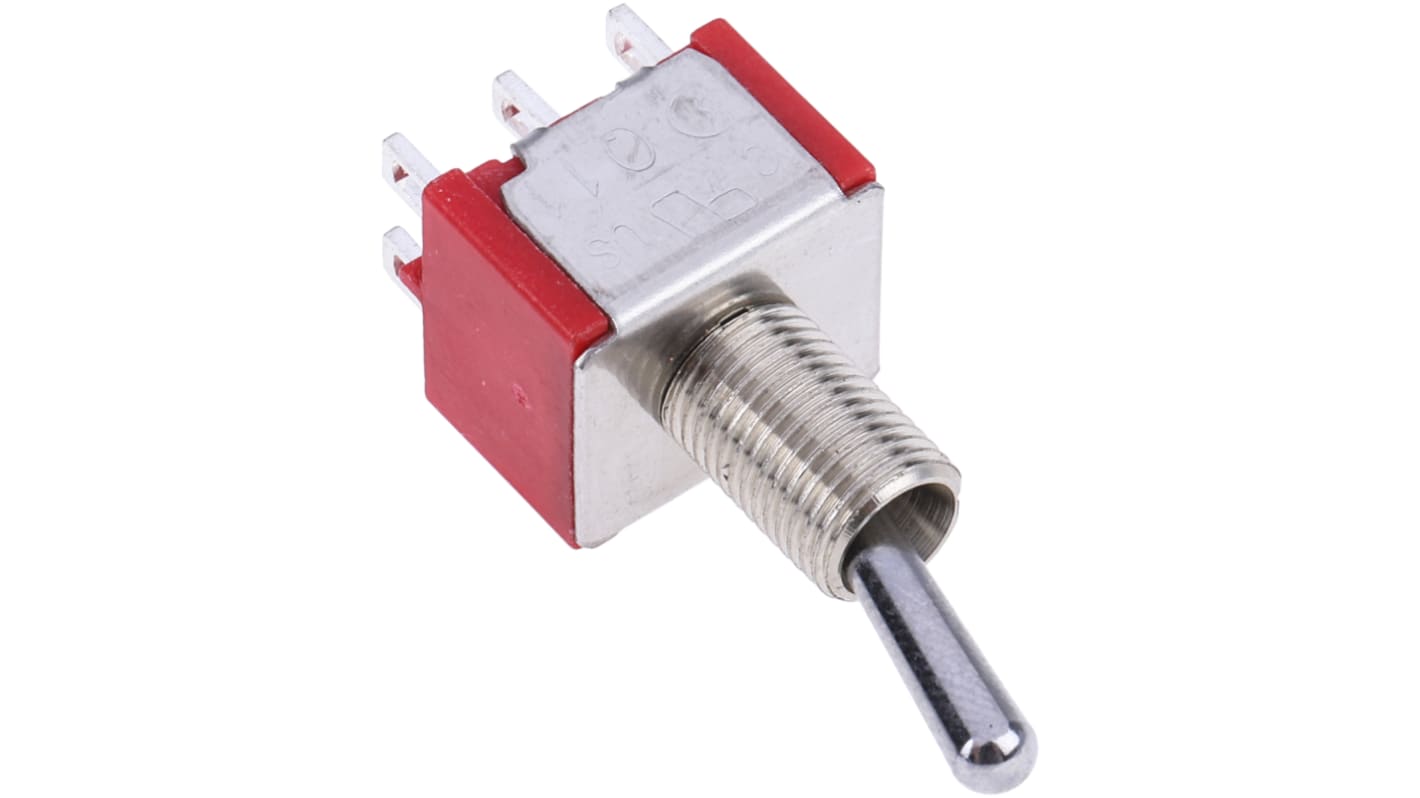

RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal
- RS Stock No.:
- 394-475
- ผู้ผลิต / Manufacturer:
- RS PRO
262 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB146.24
(exc. VAT)
THB156.48
(inc. VAT)
| Units | Per unit |
| 1 - 49 | THB146.24 |
| 50 - 99 | THB141.86 |
| 100 - 249 | THB137.48 |
| 250 - 499 | THB134.55 |
| 500 + | THB110.73 |
- RS Stock No.:
- 394-475
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
RS PRO DPDT Toggle Switch, Latching, Panel Mounting
This RS PRO Double Pole Double Throw (DPDT) switch has two poles that can serve two independent circuits. Its silver-plated copper alloy contacts ensure reliable conductivity and resistance to corrosion for high-quality performance.
You'll be able to use this product for a long time without replacing it, as it has a mechanical life of 40,000 cycles. The diallyl phthalate (DAP) shell is water and heat-resistant for added durability. It also has an Underwriters' Laboratories (UL) rating of UL94V-0. This means that flames will self-extinguish within 50 seconds in the event of a fire.
You'll be able to use this product for a long time without replacing it, as it has a mechanical life of 40,000 cycles. The diallyl phthalate (DAP) shell is water and heat-resistant for added durability. It also has an Underwriters' Laboratories (UL) rating of UL94V-0. This means that flames will self-extinguish within 50 seconds in the event of a fire.
Features and Benefits
- Actuator length of 10.41 mm
- Brass actuator material
- DPDT contact configuration
- Contact current rating of 5 A (amps) at 250 V (volts) AC
- Copper alloy contact material
- Contact resistance of 10 mΩ
- Operating temperature of -30ºC to +85ºC
- Mechanical life of 40000 cycles
- Panel mounting
- RoHS (Restriction of Hazardous Substances) and lead-free standards met
- Latching switch operation
- Solder terminal type
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On |
| Contact Current Rating | 5 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Length | 10.41mm |
| Actuator Material | Brass |
| Contact Material | Copper Alloy |
| Contact Resistance | 0.01Ω |
| Standards Met | RoHS & Lead Free |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 40000Cycles |
| Operating Temperature Range | -30 → +85°C |
