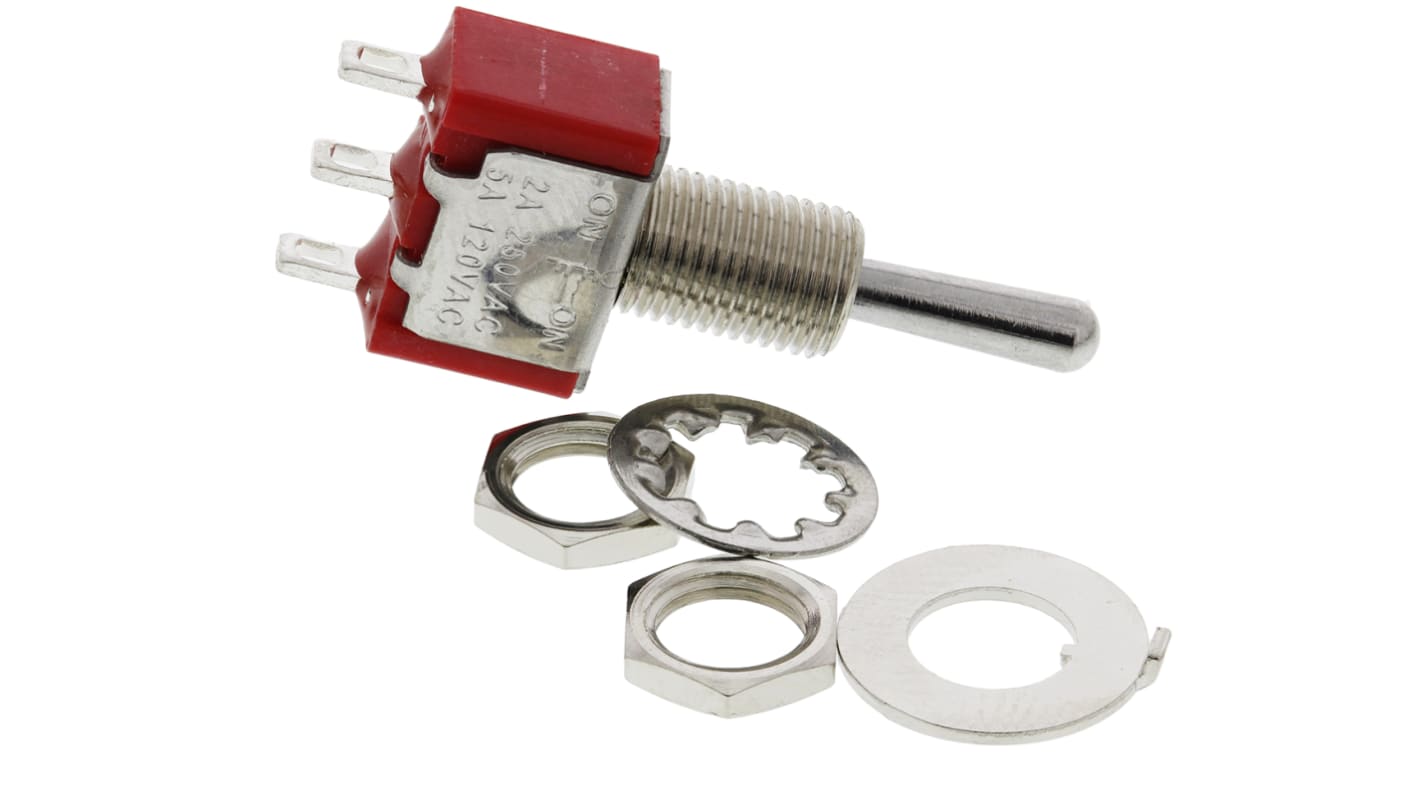

RS PRO Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal
- RS Stock No.:
- 394-465
- ผู้ผลิต / Manufacturer:
- RS PRO
7 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
416 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB111.31
(exc. VAT)
THB119.10
(inc. VAT)
| Units | Per unit |
| 1 - 49 | THB111.31 |
| 50 - 99 | THB108.97 |
| 100 - 249 | THB105.63 |
| 250 - 499 | THB103.07 |
| 500 + | THB84.83 |
- RS Stock No.:
- 394-465
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
RS PRO SPDT Toggle Switch, On-Off-On, Panel Mounting
Use this RS PRO Single Pole Double Throw (SPDT) switch to serve two different circuits with one pole. For enhanced conductivity and resistance to corrosion, it has contacts made of a silver-plated copper alloy material.
This product offers a long mechanical life of 40,000 cycles, so it won't need frequent replacement. The diallyl phthalate (DAP) casing is resistant to both water and heat. It also has a UL94V-0 rating from Underwriters' Laboratories (UL), which means the flame won't last for more than 50 seconds in the event of a fire.
This product offers a long mechanical life of 40,000 cycles, so it won't need frequent replacement. The diallyl phthalate (DAP) casing is resistant to both water and heat. It also has a UL94V-0 rating from Underwriters' Laboratories (UL), which means the flame won't last for more than 50 seconds in the event of a fire.
Features and Benefits
- Actuator length of 10.41 mm
- Brass actuator material
- SPDT contact configuration
- Contact current rating of 5 A (amps) at 250 V (volts) AC
- Copper alloy contact material
- Contact resistance of 10 mΩ
- Operating temperature of -30ºC to +85ºC
- Mechanical life of 40000 cycles
- Panel mounting
- RoHS (Restriction of Hazardous Substances) and lead-free standards met
- On-off-on switch operation
- Solder terminal type
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 5 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Length | 10.41mm |
| Actuator Material | Brass |
| Contact Resistance | 0.01Ω |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | RoHS & Lead Free |
| Mechanical Life | 40000Cycles |
