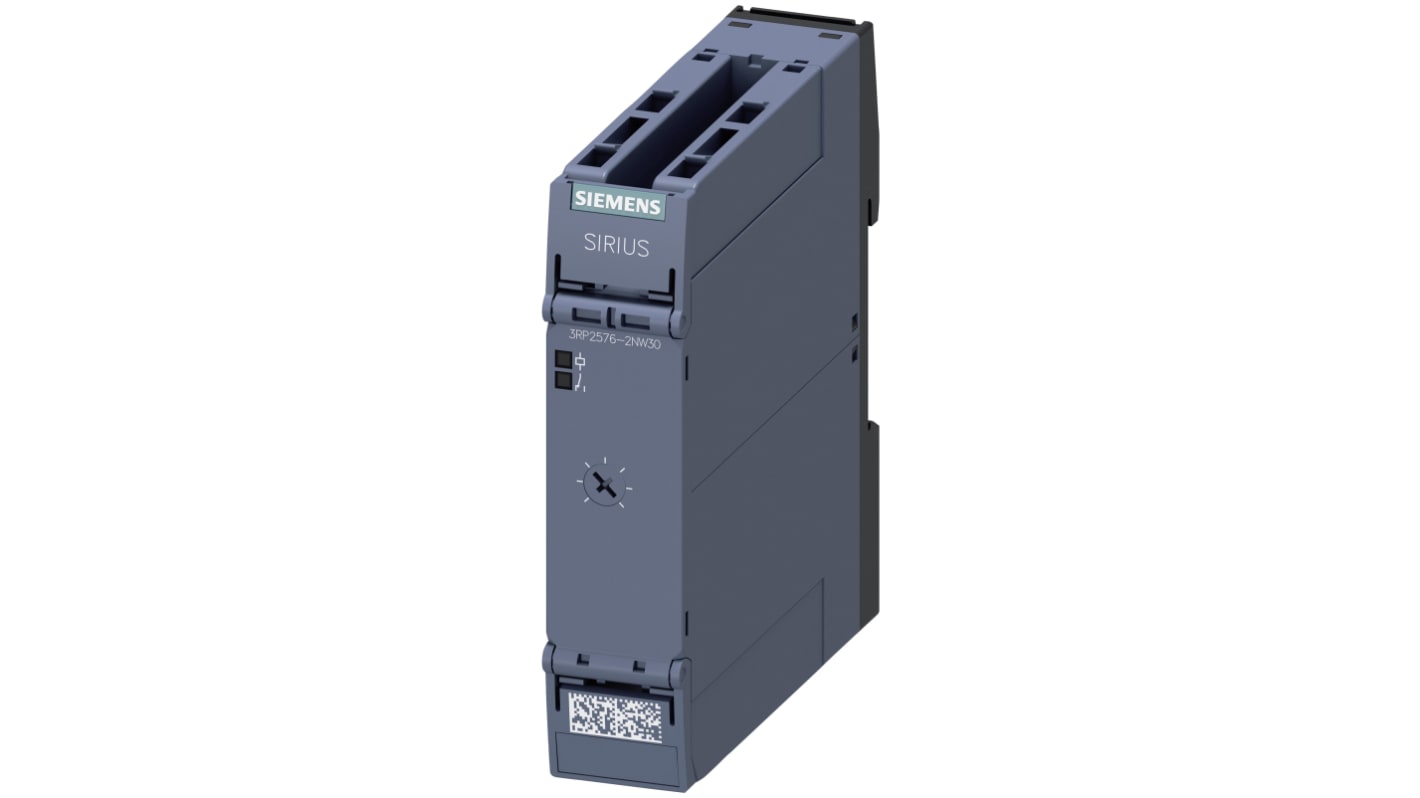

Siemens 3RP25 Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 3 → 60s, 1-Function, DPST
- RS Stock No.:
- 831-6079
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3RP2576-2NW30
- ผู้ผลิต / Manufacturer:
- Siemens
- RS Stock No.:
- 831-6079
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3RP2576-2NW30
- ผู้ผลิต / Manufacturer:
- Siemens
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details
Siemens SIRIUS 3RP25 – Star Delta Timer Relay
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Star delta time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Supply Voltage | 12 → 240V ac/dc |
Mounting Type | DIN Rail |
Mode of Operation | Star Delta |
Time Range | 3 → 60s |
Number of Contacts | 2 |
Number of Timer Functions | Single |
Contact Configuration | DPST |
Time Increment | Seconds |
Maximum Current | 3A |
Maximum Voltage | 240V ac/dc |
Switch Configuration | DPST |
Terminal Type | Cage Clamp |
Minimum Voltage | 12V ac/dc |
Width | 22.5mm |
Length | 90mm |
Series | 3RP25 |
Depth | 100mm |
Maximum Operating Temperature | +60°C |
Time Delay | 250ms |
Contact Material | AgSnO2 |
Minimum Operating Temperature | -25°C |
