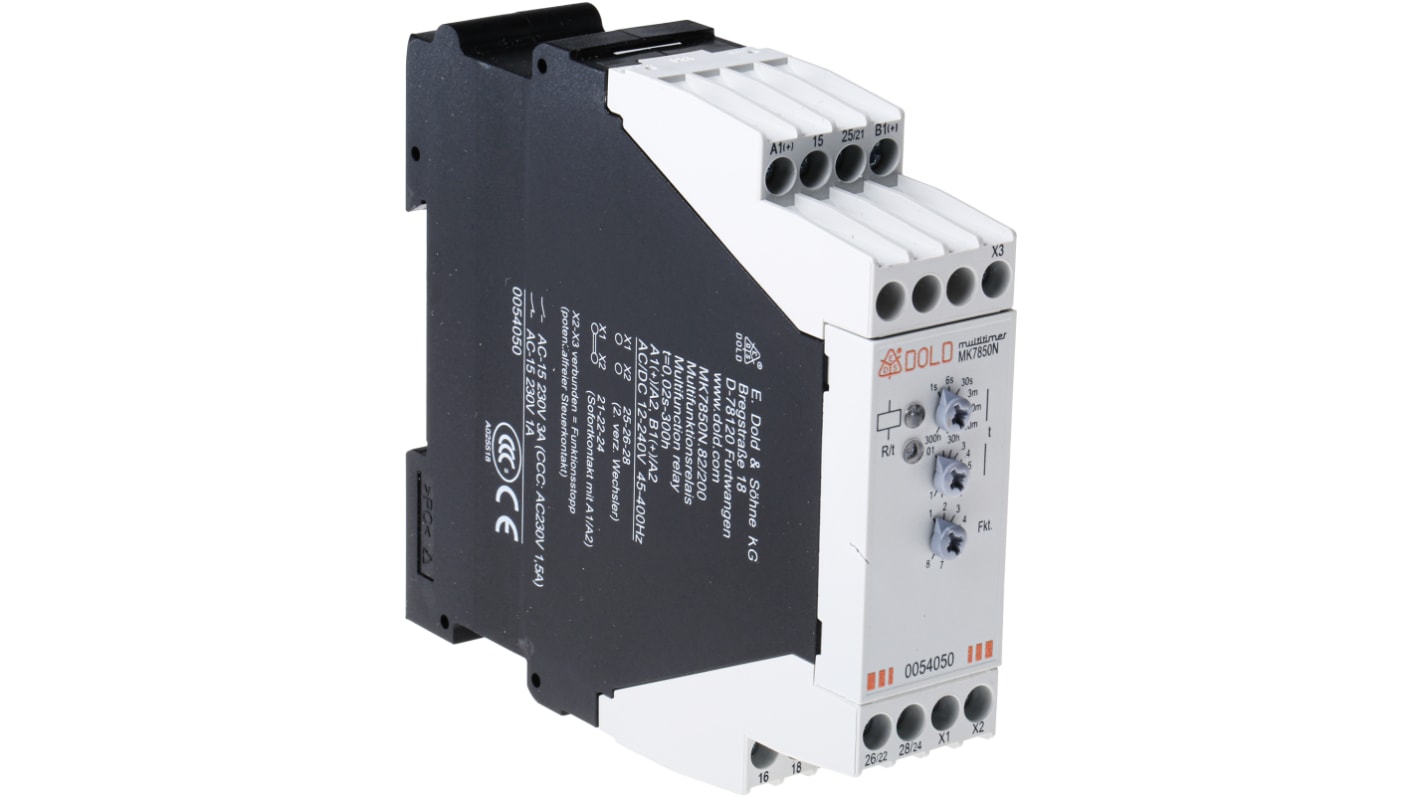

Dold MK7850N Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.03 → 300 min, 0.06 →

RS Stock No.:: 424-9906
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MK7850N.82/200 AC/DC12-240V 0.02S-300H
ผู้ผลิต / Manufacturer:: Dold

Dold MK7850N Series DIN Rail Mount Timer Relay, 12 → 240V ac/dc, 2-Contact, 0.03 → 300 min, 0.06 →

2 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)

28 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB7,575.38

(exc. VAT)

THB8,105.66

(inc. VAT)

Units	Per unit
1 - 24	THB7,575.38
25 - 49	THB7,386.29
50 +	THB7,269.36

RS Stock No.:: 424-9906
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MK7850N.82/200 AC/DC12-240V 0.02S-300H
ผู้ผลิต / Manufacturer:: Dold

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

COO (Country of Origin):: MT

รายละเอียดสินค้า / Product Details

MK 7850N — Multi-Function Timer Relay

A choice of Dold multi-Function Timer Relay's with optional external potentiometer accessory also available at 10 KΩ

Features:

LED as adjustment aid for time selection
8 time ranges from 0.02 s → 300 h selected via rotary switch
Expanded voltage range AC / DC 12 → 240 V
2 changeovers, 1 of which as immediate contact
Control contact, electrically isolated
Box terminals

8 functions selected via rotary switch

Response delay (AV)
Switch-on wipe function (EW)
Emitter delayed (IE)
Flashing function, starting with pulse (BI)
Fallback delay (RV)
Pulse transducer (IF)
Switch-off wipe function (AW)
Response and fallback delay (AV / RV)

Additional with MK 7850N / 500

Timer, starting with pause (TP)
Switch-on and switch-off wipe function (EW / AW)
2 separately adjustable times
Connection option for 2 remote port.

Note

Remote potentiometer with terminals Z1, Z2 sold separately, see RS code: 4249928

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Supply Voltage	12 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Delay Pulse, Flash Start with Impulse, Fleeting ON Break, Fleeting ON Make, Operate Delay, Pulse Former, Release Delay
Time Range	0.03 → 300 min, 0.06 → 30 s, 3 → 300h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	(dc) 1 A, (ac) 3A
Maximum Voltage	240V ac/dc
Switch Configuration	DPDT
Terminal Type	Screw
Power Supply	External
Width	22.5mm
Series	MK7850N
Maximum Operating Temperature	+60°C
Depth	97mm
Length	90mm
Time Delay	50ms
Contact Material	AgNi
Minimum Operating Temperature	-20°C
