Eaton Eaton Moeller Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 s → 60h,
- RS Stock No.:
- 225-8267
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 031882 ETR4-11-A
- ผู้ผลิต / Manufacturer:
- Eaton
1 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
9 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB8,411.49
(exc. VAT)
THB9,000.29
(inc. VAT)
| Units | Per unit |
| 1 + | THB8,411.49 |
- RS Stock No.:
- 225-8267
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 031882 ETR4-11-A
- ผู้ผลิต / Manufacturer:
- Eaton
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
Electronic Timing Relays 22.5mm Wide ETR4
Eaton ETR4 series of timing relays have been created and designed to time events through opening or closing contacts, before during or after a specified set time period. The ETR4 series of timer relays are ideal for industrial automation systems. These timer relays are a type of control relay with a time delay built in offering simple and fast set up and installation, high performance and reliability.
Users will find that timer relays can typically be found within industrial applications as they play a substantial role in industrial processes. Common applications include lighting circuits, motor start control, sensitive equipment, safety control, conveyor belt sequence delay, machine, single machine automation, buildings, door locks and roller shutters HVAC, fans and water systems.
22.5mm wide, DIN rail mounting
Wide range supply voltage
Star-delta timer with 50ms delay in changeover
Multifunction timers 10 time ranges, 9 functions
Star-delta timers are 2 interlink pole single throw
The multi-function timers are single pole changeover
Wide range supply voltage
Star-delta timer with 50ms delay in changeover
Multifunction timers 10 time ranges, 9 functions
Star-delta timers are 2 interlink pole single throw
The multi-function timers are single pole changeover

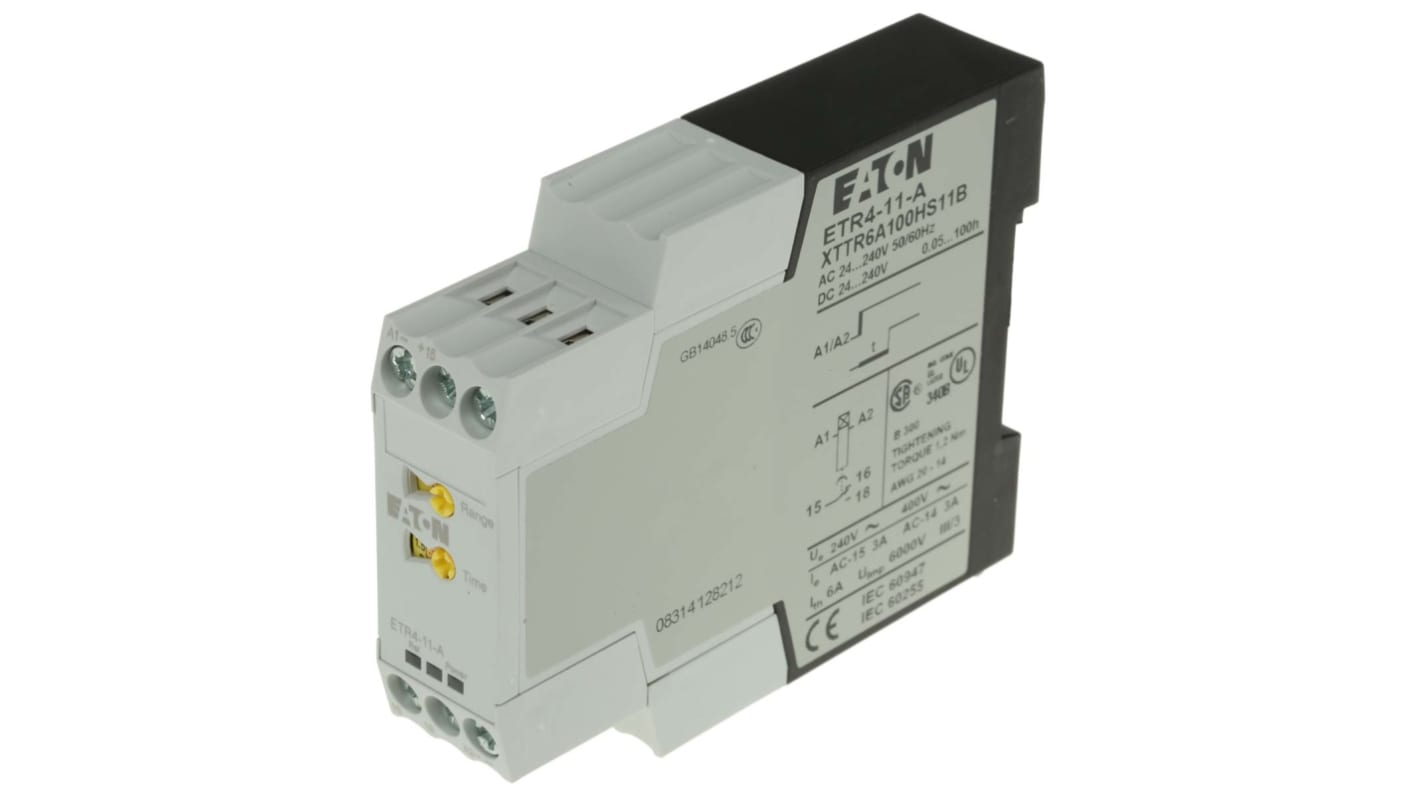

ETR4-11-A Timer Relay
• The ETR4-70-A features only one function - on-delayed
• 1 changeover contact
• Time range - 0.05 s to 100 h
• Has a voltage range of 24 - 240 V AC, 50/60 Hz 24 – 240 V DC
• 22.5 mm width
• Conventional thermal current - 6A
• The ambient temperature when open is - 25 to + 60
• The terminals have an ingress protection of IP20
• The type of electric connection is a screw connection
• Has a power consumption AC sealing and pickup up is 2 VA
• Power consumption for DC pick up and sealing is 1.8 W
• 1 changeover contact
• Time range - 0.05 s to 100 h
• Has a voltage range of 24 - 240 V AC, 50/60 Hz 24 – 240 V DC
• 22.5 mm width
• Conventional thermal current - 6A
• The ambient temperature when open is - 25 to + 60
• The terminals have an ingress protection of IP20
• The type of electric connection is a screw connection
• Has a power consumption AC sealing and pickup up is 2 VA
• Power consumption for DC pick up and sealing is 1.8 W
Note
Eaton formerly known as Moeller
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | ON Delay |
| Time Range | 0.05 s → 60h |
| Number of Contacts | 1 |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Hours, Seconds |
| Maximum Current | 3A |
| Maximum Voltage | 240 V dc, 400V ac |
| Switch Configuration | SPDT |
| Terminal Type | Screw |
| Width | 22.5mm |
| Minimum Voltage | 24V ac/dc |
| Power Supply | External |
| Maximum Operating Temperature | +60°C |
| Depth | 103mm |
| Length | 82.5mm |
| Series | Eaton Moeller |
| Minimum Operating Temperature | -20°C |
| Time Delay | (Recovery) 70ms |
