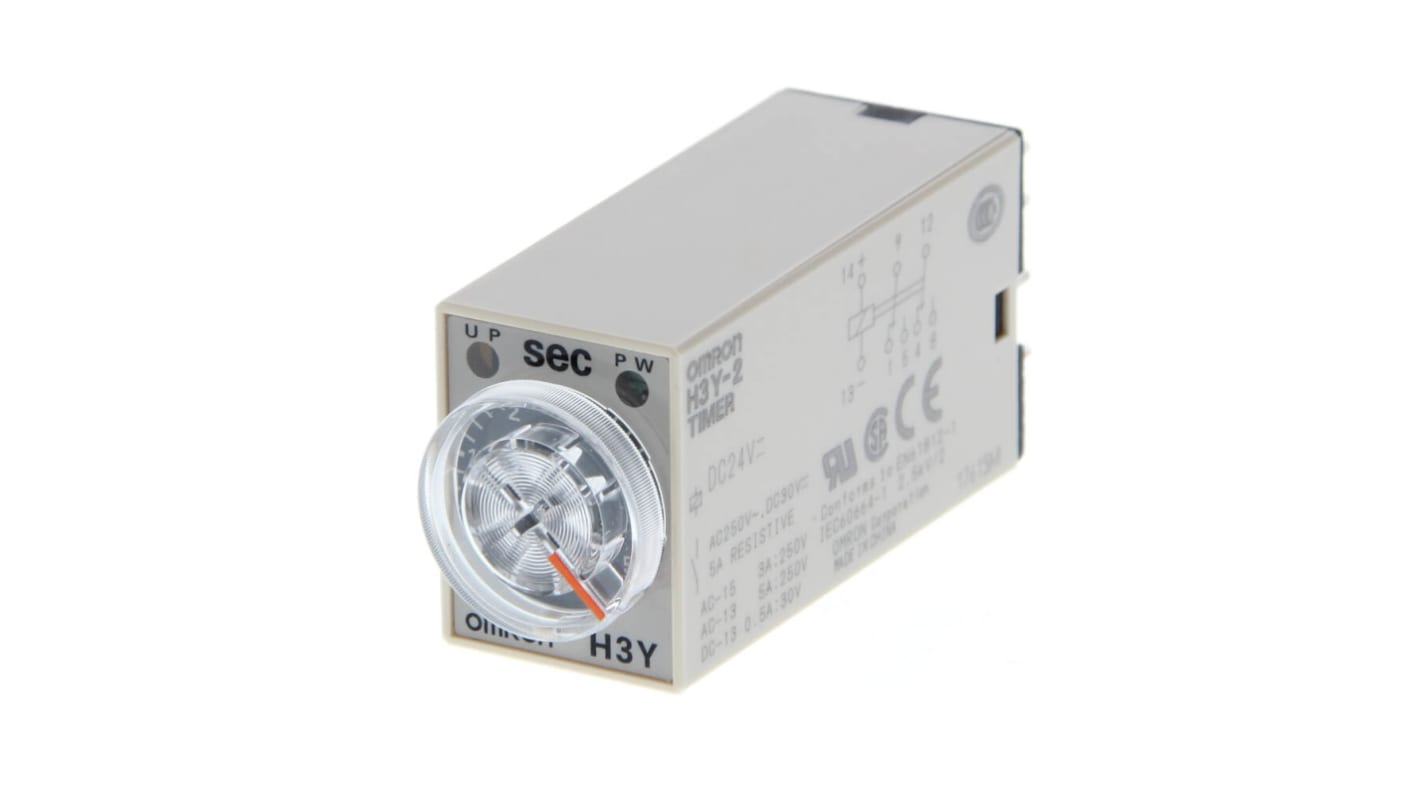

Omron H3Y-2 Series DIN Rail Mount Timer Relay, 200 → 230V ac, 2-Contact, 0.04 - 30s, 1-Function, DPDT
- RS Stock No.:
- 177-0107
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-2 AC200-230 30S
- ผู้ผลิต / Manufacturer:
- Omron
- RS Stock No.:
- 177-0107
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-2 AC200-230 30S
- ผู้ผลิต / Manufacturer:
- Omron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- ID
รายละเอียดสินค้า / Product Details
Omron Single-function Timer Relay
The Omron H3Y-2 series single-function timer relay is a compact, solid-state equipment with high precision and a wide range of programming features. It performs the function of providing ON delay in the range of 0.04 seconds to 3 hours. It has intuitive programming that makes it easy to use and quick to configure. There is a selectable rotary switch on the front of the unit for selecting time delay range. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
Semi-multi power supply voltage
Large transparent time setting knob facilitates time setting
The supply voltage ranges between 200VAC and 230VAC
2 changeover relay output contacts of 5A
A flat-blade and Phillips screwdriver can also be used for time setting
DPDT contact configuration
Pin configuration compatible with MY Power Relay
LED indication for power and output statuses
Large transparent time setting knob facilitates time setting
The supply voltage ranges between 200VAC and 230VAC
2 changeover relay output contacts of 5A
A flat-blade and Phillips screwdriver can also be used for time setting
DPDT contact configuration
Pin configuration compatible with MY Power Relay
LED indication for power and output statuses
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
UL508 approved
IP40 rated
CSA C22.2 certified
EN60947-5-1
EN61812-1
EN55011 Group 1 class A
EN61812-1
EN61000-4-3
EN61000-4-4
EN61000-4-5
IP40 rated
CSA C22.2 certified
EN60947-5-1
EN61812-1
EN55011 Group 1 class A
EN61812-1
EN61000-4-3
EN61000-4-4
EN61000-4-5
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Supply Voltage | 200 → 230V ac |
Mounting Type | DIN Rail |
Mode of Operation | ON Delay |
Time Range | 0.04 - 30s |
Number of Contacts | 2 |
Number of Timer Functions | Single |
Contact Configuration | DPDT |
Time Increment | Hours, Minutes, Seconds |
Maximum Current | 5A |
Maximum Voltage | 230V ac |
Switch Configuration | DPDT |
Terminal Type | Plug In |
Minimum Voltage | 200V ac |
Power Supply | External |
Width | 28mm |
Minimum Current | 3A |
Length | 21.5mm |
Series | H3Y-2 |
Maximum Operating Temperature | +50°C |
Depth | 56.6mm |
Minimum Operating Temperature | -10°C |
