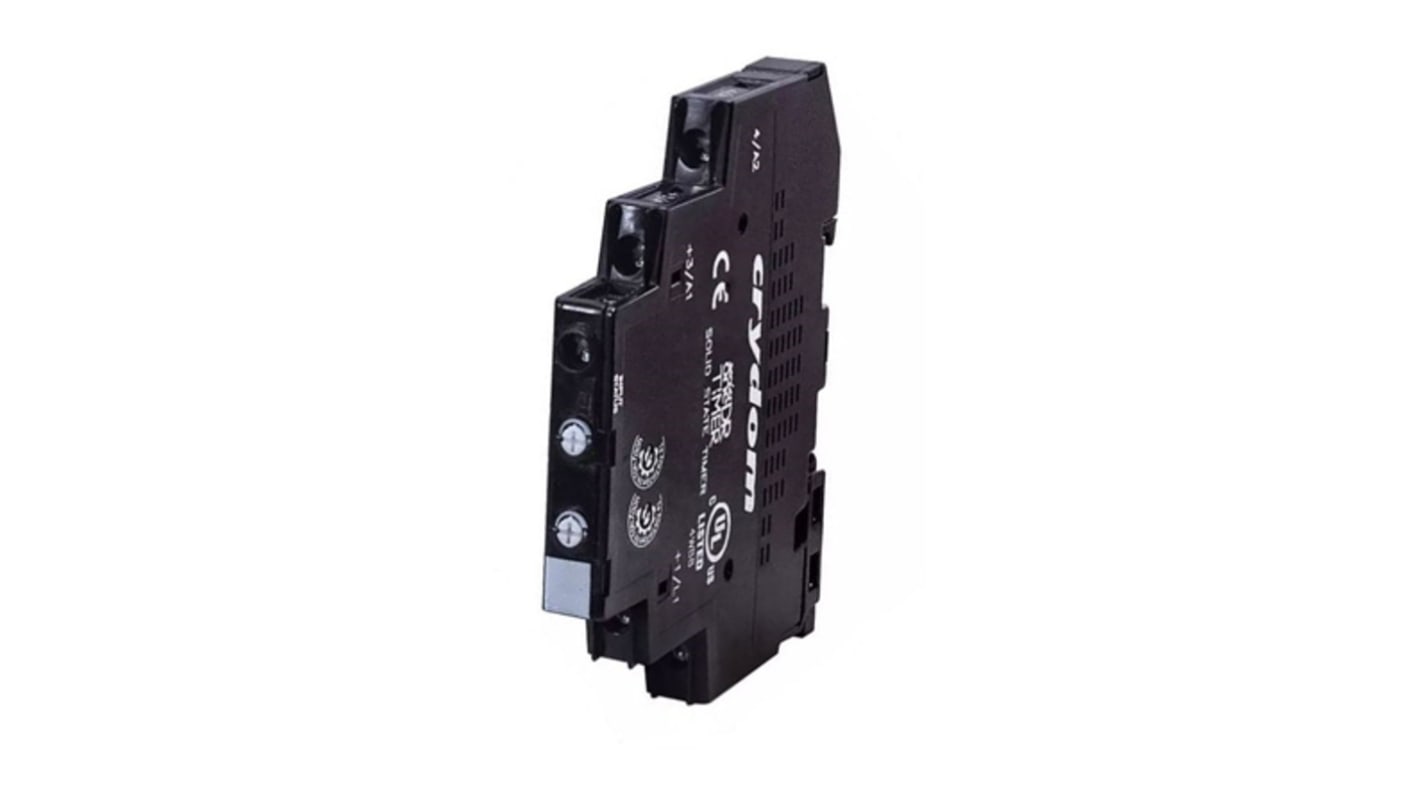

Sensata / Crydom SeriesOneDR Series DIN Rail Mount Timer Relay, 180 → 240V ac/dc, 2-Contact, 0.1 s →
- RS Stock No.:
- 144-5925
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DRTA24A06R
- ผู้ผลิต / Manufacturer:
- Sensata / Crydom
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB2,952.13
(exc. VAT)
THB3,158.78
(inc. VAT)
| Units | Per unit |
| 1 + | THB2,952.13 |
- RS Stock No.:
- 144-5925
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DRTA24A06R
- ผู้ผลิต / Manufacturer:
- Sensata / Crydom
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
รายละเอียดสินค้า / Product Details
Crydom SeriesOne DR Solid State Timers
Crydom SeriesOne DR DIN Rail-mounted solid state relay timers with AC or DC output voltage. The solid-state timers are available in a variety of industry standard timing functions and various input and output voltage options.
Features and Benefits
Single channel 6 A output power rating
Compact size (11 mm wide)
8 industry standard functions available
IP20 housing with unique integrated heat sink design
LED status indicator
Solid-State Time Delay Relays
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 180 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | Delay ON Make |
| Time Range | 0.1 s → 100h |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Contact Configuration | SPST |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | 6A |
| Maximum Voltage | 240V ac/dc |
| Terminal Type | Screw |
| Switch Configuration | Solid State |
| Width | 11mm |
| Power Supply | External |
| Minimum Voltage | 180V ac/dc |
| Depth | 83mm |
| Series | SeriesOneDR |
| Minimum Current | 150mA |
| Maximum Operating Temperature | +80°C |
| Length | 87.7mm |
| Minimum Operating Temperature | -30°C |
| Time Delay | 100ms |
