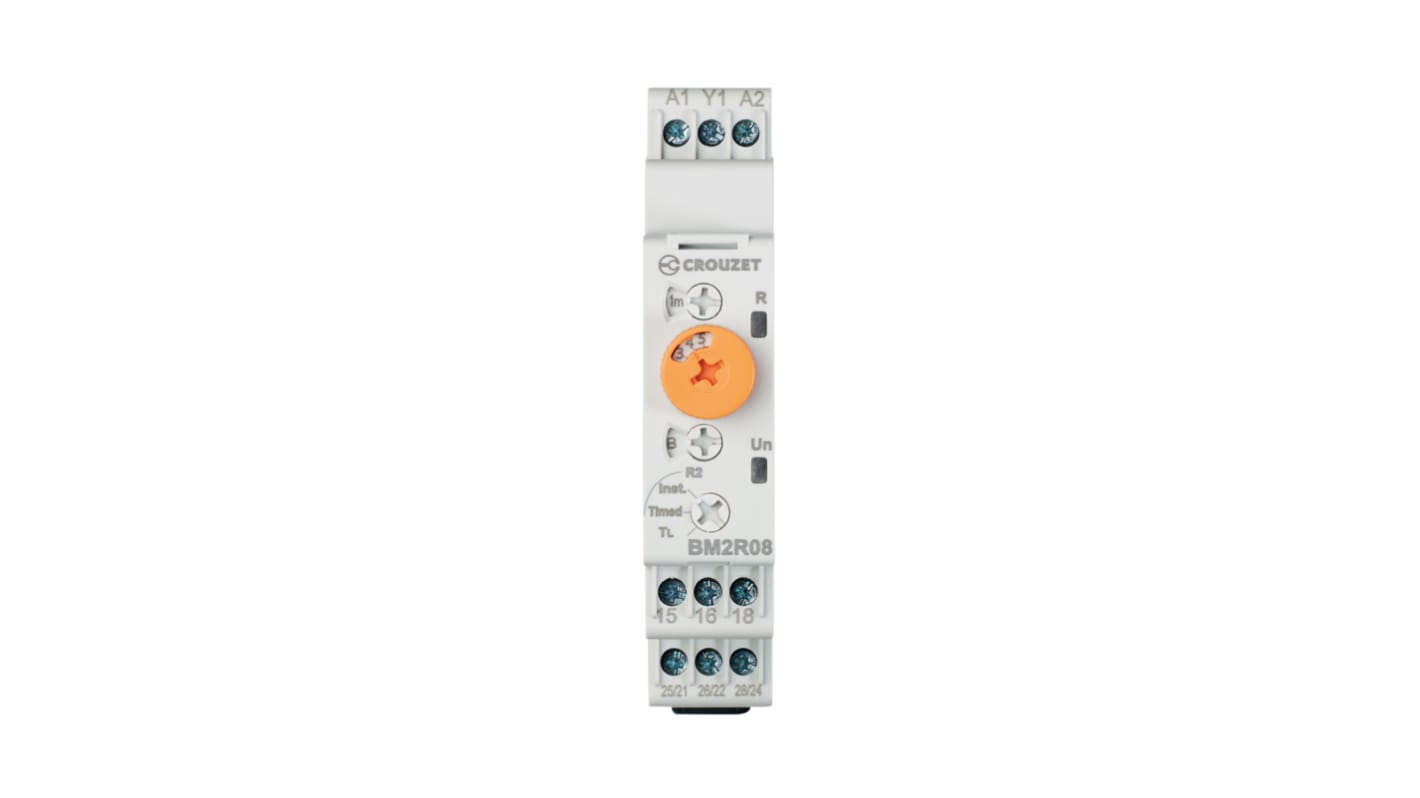

Crouzet Multi Function Multi Function Time Delay Relay, Screw, 0.5 s → 10 days s, DPDT, 2 Contacts, SPDT

  • RS Stock No. 136-3221
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. BM2R08MV1
  • ผู้ผลิต / Manufacturer Crouzet
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

Syrline Series Multi function Timers

The specialised Syrline range of high power timers are designed to satisfy unique requirements across various applications. The timers are compact in design to fit all modular panels.

Features and Benefits

Slim 17.5 mm modular design
Multi-voltage 12-240 V ac/dc
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Small screw knobs for right tuning
Large knobs allow setting of right configuration
2 LED indicators
Standard DIN Rail mounting

คุณสมบัติ / Specifications
คุณสมบัติ Value
Supply Voltage 12 → 240 V ac/dc
Time Range 0.5 s → 10 days s
Mode of Operation Multi function
Mounting Type DIN Rail
Number of Timer Functions Multi Function
Number of Contacts 2
Series Syr-Line
Time Increment Hours, Minutes, Seconds
Power Supply External
Contact Configuration DPDT
Current Maximum 5 A @ 60 °C, 8 A @ 25 °C
Terminal Type Screw
Minimum Voltage 12 V ac, 12 V dc
Maximum Voltage 240 V ac/V dc
Width 17.50mm
Length 90mm
Depth 60mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Time Delay 0.5 s
Switch Configuration SPDT
3 ภายใน (Within) 5 - 8 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
8 ภายใน (Within) 5 - 8 วันทำการ (สต๊อกทั่วโลก) (working days (Global stock))
ราคา / Price Each
THB 3,936.41
(exc. VAT)
THB 4,211.96
(inc. VAT)
Units
Per unit
1 +
THB3,936.41
