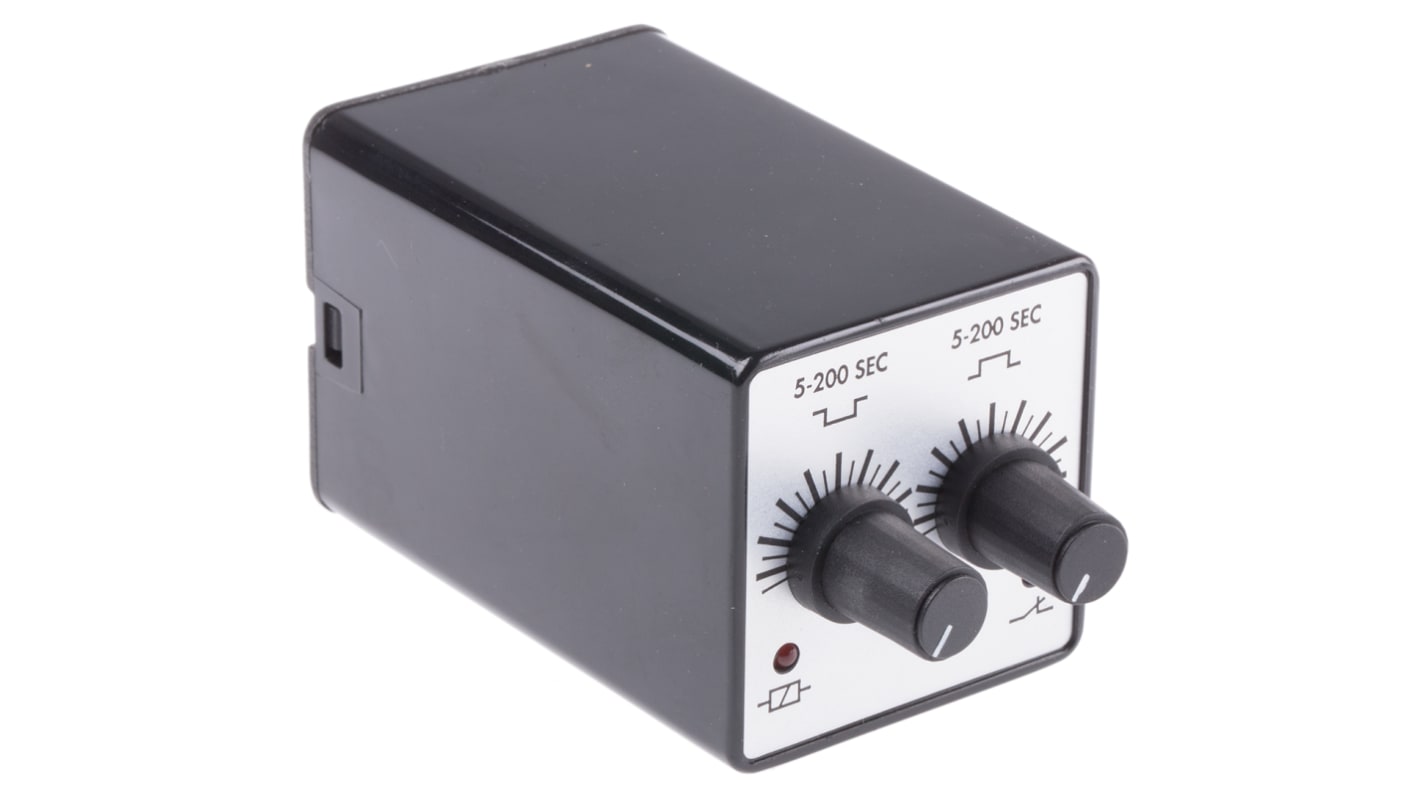

Tempatron Plug In Timer Relay, 240V ac, 2-Contact, 5 → 200s, 1-Function, DPDT
- RS Stock No.:
- 349-917
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2BDC200SLP200SLP240VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB4,461.16
(exc. VAT)
THB4,773.44
(inc. VAT)
| Units | Per unit |
| 1 - 24 | THB4,461.16 |
| 25 - 49 | THB4,305.00 |
| 50 + | THB4,209.92 |
- RS Stock No.:
- 349-917
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2BDC200SLP200SLP240VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details
8 Pin Asymmetrical– Octal Base
Functions - 651
LED indication of power on and relay energised
Supply frequency range 50-60Hz
AgCdO contact material
LED indication of power on and relay energised
Supply frequency range 50-60Hz
AgCdO contact material
Standards
EN 50081-1, EN 50082-1, EN 61010-1
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 240V ac |
| Mounting Type | Plug In |
| Mode of Operation | Delay Cycle |
| Time Range | 5 → 200s |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Seconds |
| Maximum Current | 10A |
| Maximum Voltage | 240 V ac, 30V dc |
| Switch Configuration | DPDT |
| Terminal Type | 8-Pin Connector |
| Power Supply | External |
| Width | 48mm |
| Maximum Operating Temperature | +60°C |
| Length | 48mm |
| Depth | 108mm |
| Contact Material | Silver Cadmium Oxide |
| Time Delay | (Reset) 200ms |
| Minimum Operating Temperature | -10°C |
