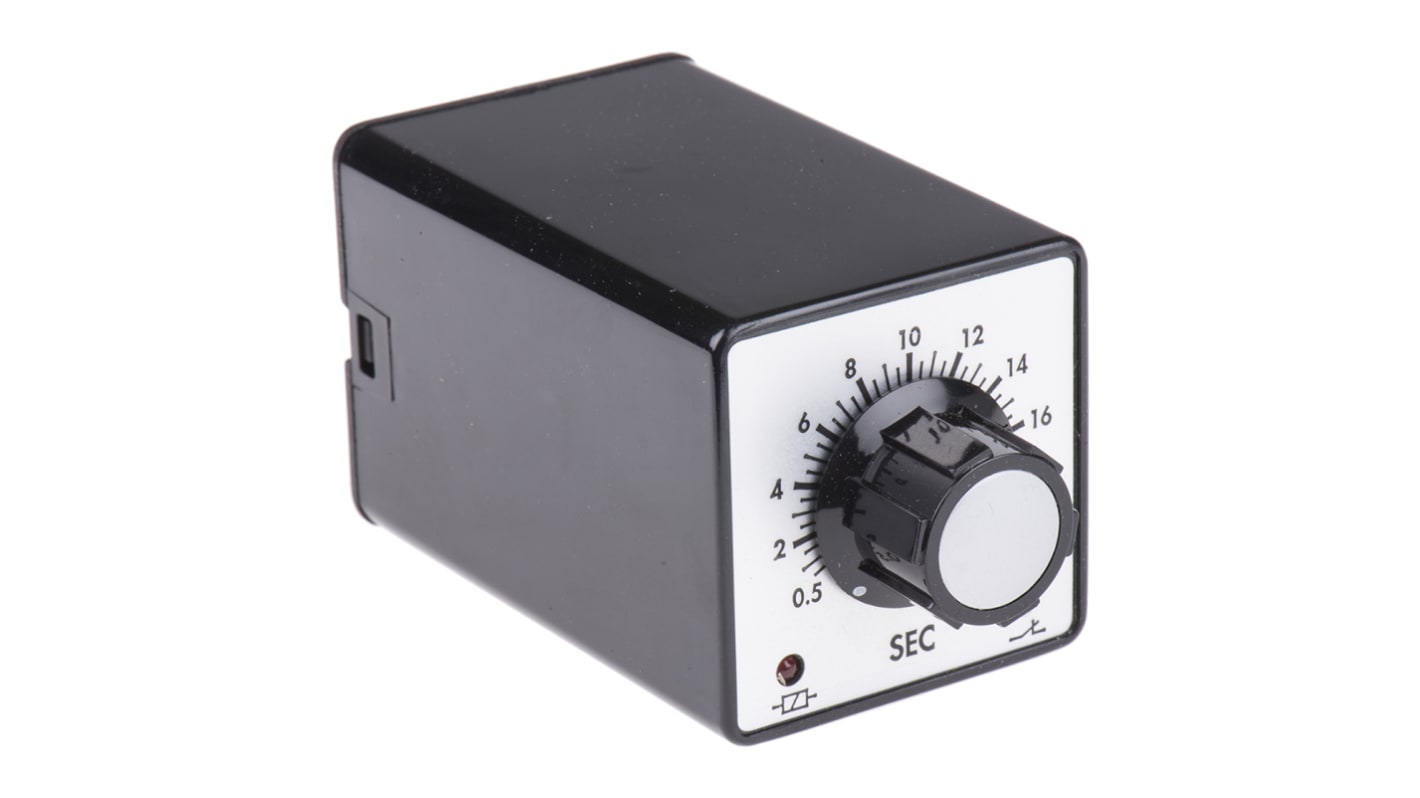

Tempatron Plug In Timer Relay, 240V ac, 2-Contact, 0.5 → 20s, 1-Function, DPDT
- RS Stock No.:
- 349-872
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2BDE20SLP240VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
22 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB3,658.99
(exc. VAT)
THB3,915.12
(inc. VAT)
| Units | Per unit |
| 1 - 24 | THB3,658.99 |
| 25 - 49 | THB3,530.97 |
| 50 + | THB3,452.68 |
- RS Stock No.:
- 349-872
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2BDE20SLP240VAC
- ผู้ผลิต / Manufacturer:
- Tempatron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details
Octal Base
Function 111
LED indication of power on and relay energised
DPDT contact configuration
AgCdO contact material
LED indication of power on and relay energised
DPDT contact configuration
AgCdO contact material
Standards
EN 50081-1, EN 50082-1, EN 61010-1.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 240V ac |
| Mounting Type | Plug In |
| Mode of Operation | ON Delay Energise |
| Time Range | 0.5 → 20s |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Seconds |
| Maximum Current | 10A |
| Terminal Type | 8-Pin Connector |
| Switch Configuration | DPDT |
| Power Supply | External |
| Width | 48mm |
| Maximum Operating Temperature | +60°C |
| Length | 48mm |
| Depth | 108mm |
| Time Delay | (Reset) 100ms |
| Contact Material | Silver Cadmium Oxide |
| Minimum Operating Temperature | -10°C |
