- RS Stock No.:
- 866-0199
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NE555P
- ผู้ผลิต / Manufacturer:
- Texas Instruments
3300 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tube of 50)
THB13.936
(exc. VAT)
THB14.912
(inc. VAT)
Units | Per unit | Per Tube* |
50 - 50 | THB13.936 | THB696.80 |
100 - 300 | THB13.587 | THB679.35 |
350 - 600 | THB13.247 | THB662.35 |
650 - 750 | THB12.916 | THB645.80 |
800 + | THB12.593 | THB629.65 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 866-0199
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NE555P
- ผู้ผลิต / Manufacturer:
- Texas Instruments
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

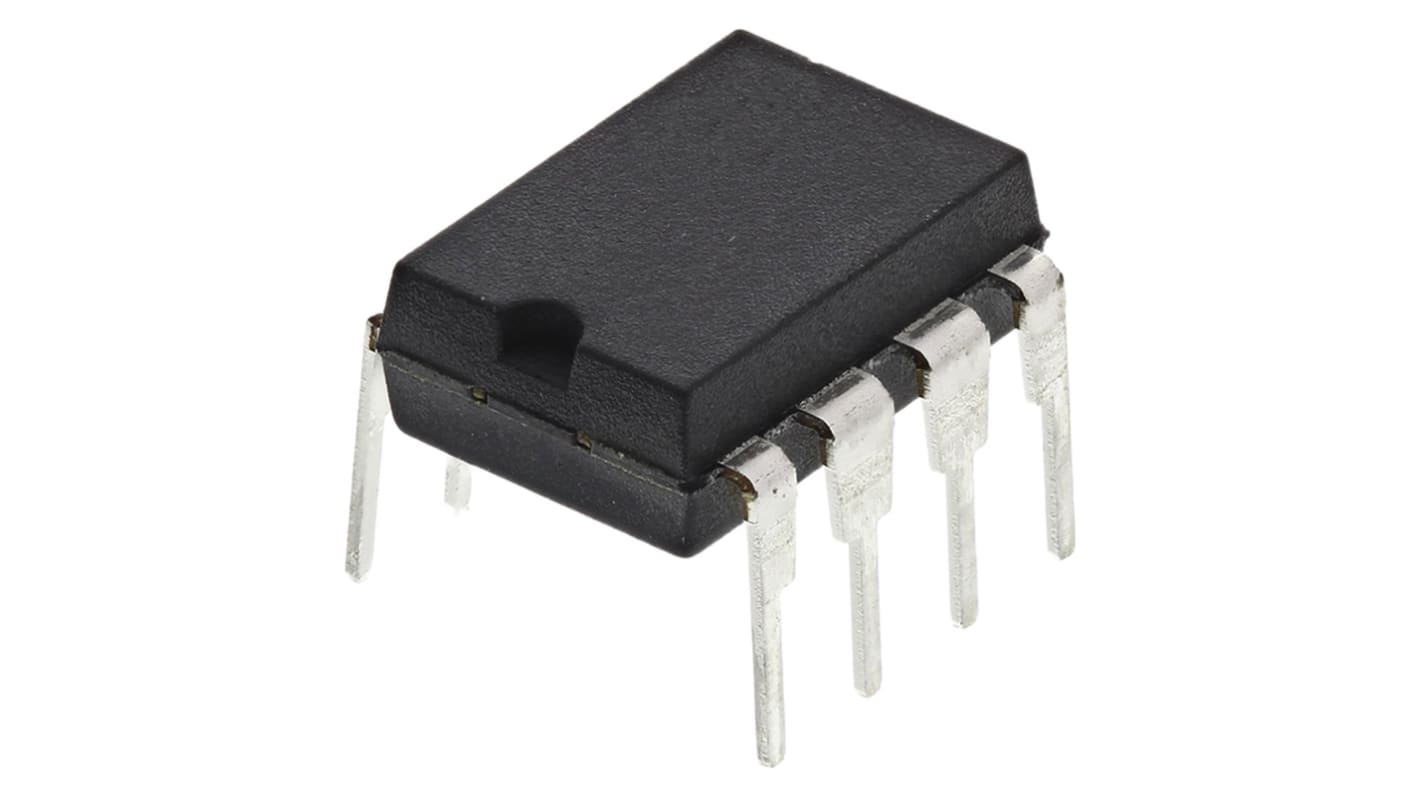

555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
Timers/Timing Generators
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Mounting Type | Through Hole |
Timer Type | Adjustable and Monostable |
Package Type | PDIP |
Number of Internal Timers | 1 |
Pin Count | 8 |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 16 V |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | +70 °C |
Maximum Low Level Output Current | 200mA |
Maximum High Level Output Current | -200mA |
Maximum Propagation Delay Time @ Maximum CL | 300 ns @ 15 pF |
Width | 6.6mm |
Dimensions | 10.16 x 6.6 x 4.57mm |
Propagation Delay Test Condition | 15pF |
Length | 10.16mm |
Height | 4.57mm |
