- RS Stock No.:
- 620-0357
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TLC555ID
- ผู้ผลิต / Manufacturer:
- Texas Instruments
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each: (In a Pack of 10)
THB34.836
(exc. VAT)
THB37.275
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 10 | THB34.836 | THB348.36 |
20 - 30 | THB33.963 | THB339.63 |
40 + | THB33.442 | THB334.42 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 620-0357
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TLC555ID
- ผู้ผลิต / Manufacturer:
- Texas Instruments
Legislation and Compliance
รายละเอียดสินค้า / Product Details

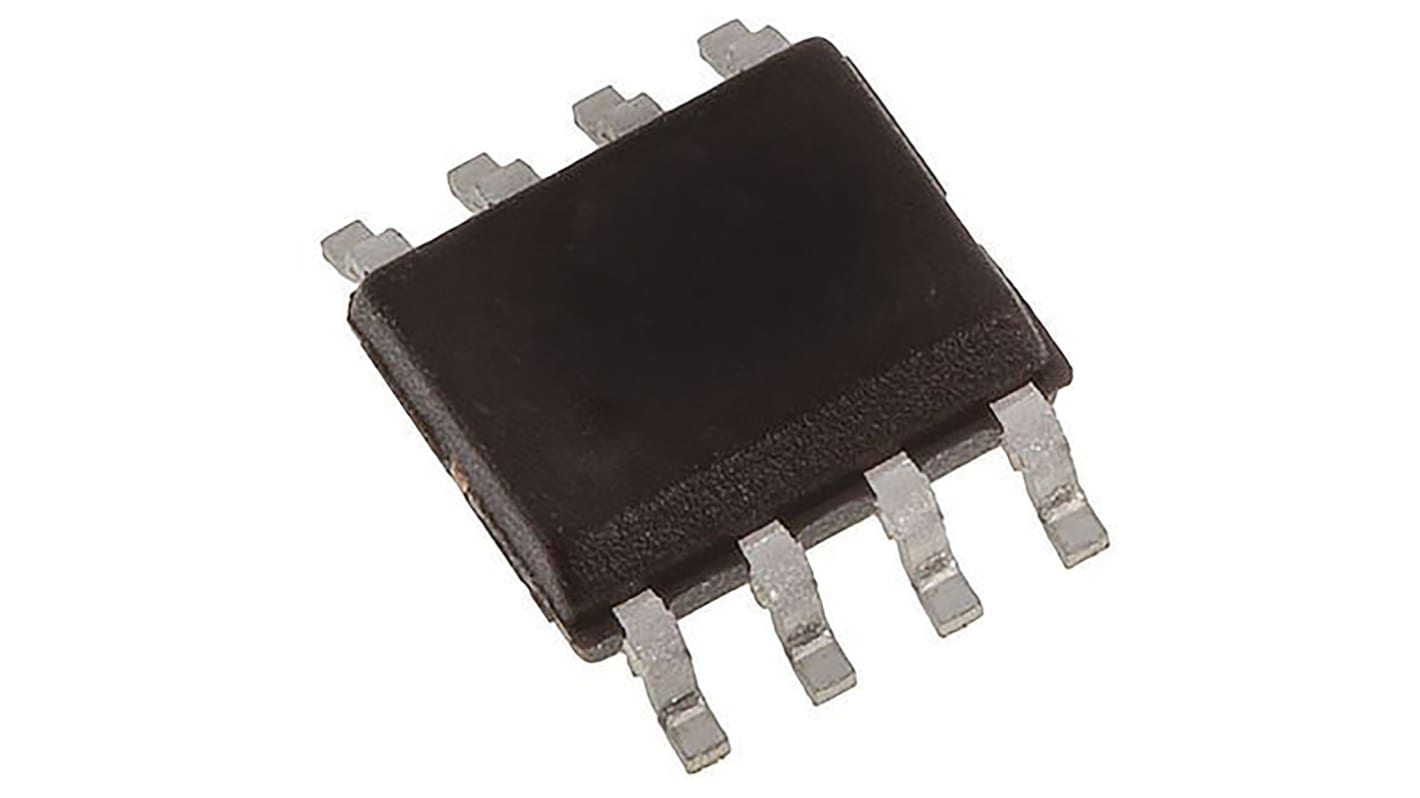

555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
Timers/Timing Generators
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Mounting Type | Surface Mount |
Timer Type | Standard |
Package Type | SOIC |
Number of Internal Timers | 1 |
Pin Count | 8 |
Maximum Input Frequency | 2MHz |
Minimum Operating Supply Voltage | 3 V |
Maximum Operating Supply Voltage | 15 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Maximum Low Level Output Current | 100mA |
Maximum High Level Output Current | -10mA |
Dimensions | 4.9 x 3.91 x 1.58mm |
Height | 1.58mm |
Length | 4.9mm |
Width | 3.91mm |
