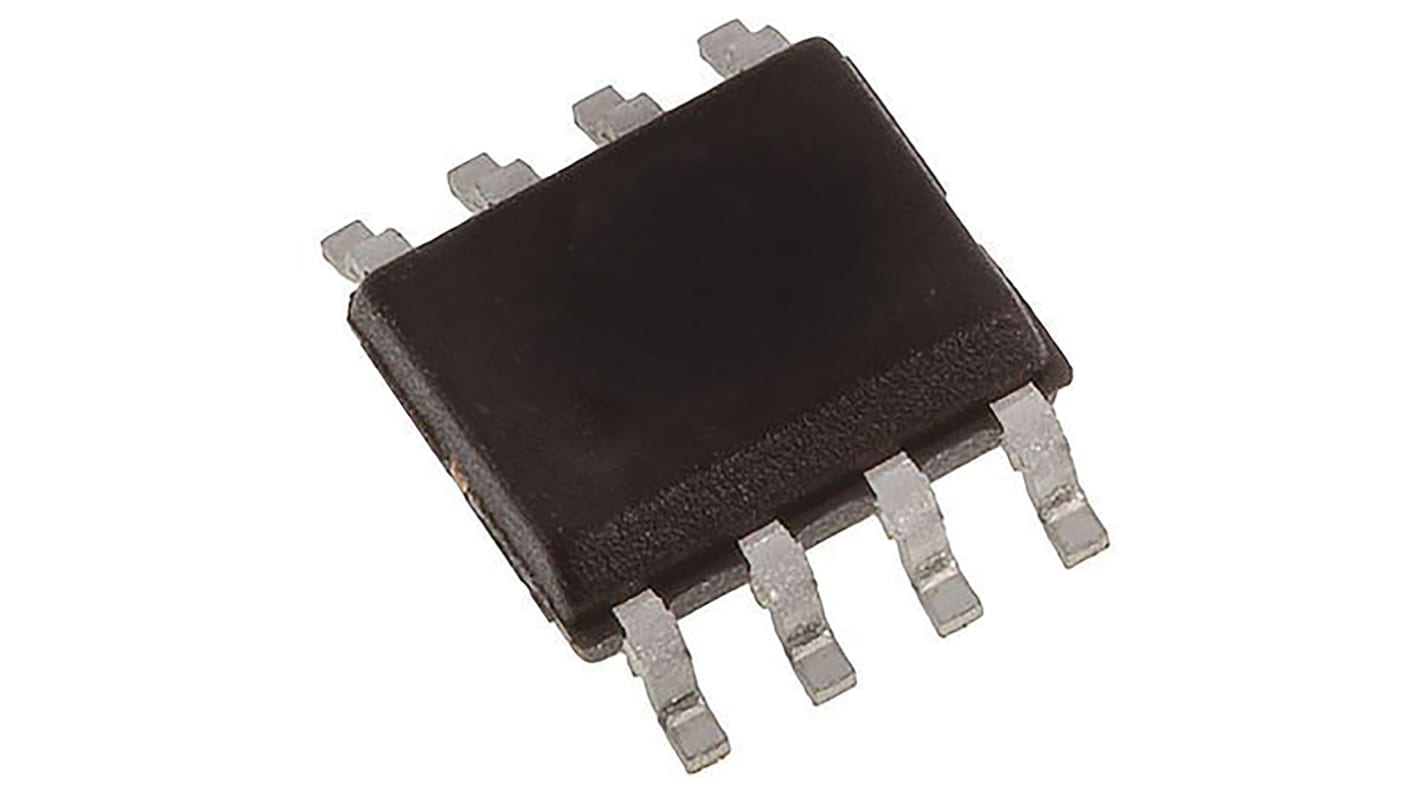

DiodesZetex NE555S-13, Programmable Timer Circuit, 8-Pin SOIC
- RS Stock No.:
- 122-3283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NE555S-13
- ผู้ผลิต / Manufacturer:
- DiodesZetex
5000 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (On a Reel of 2500)
THB4.356
(exc. VAT)
THB4.661
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | THB4.356 | THB10,890.00 |
| 5000 - 7500 | THB4.225 | THB10,562.50 |
| 10000 + | THB4.098 | THB10,245.00 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 122-3283
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NE555S-13
- ผู้ผลิต / Manufacturer:
- DiodesZetex
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
555 Timer, Diodes Inc
Diodes Incorporated offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Timers/Timing Generators
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Programmable |
| Package Type | SOIC |
| Number of Internal Timers | 1 |
| Pin Count | 8 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Low Level Output Current | 200mA |
| Maximum High Level Output Current | -200mA |
| Width | 3.95mm |
| Height | 1.5mm |
| Length | 4.95mm |
| Dimensions | 4.95 x 3.95 x 1.5mm |
