TRACOPOWER Switching Regulator, Surface Mount, ±3.3V dc Output Voltage, 4.6 → 32 V dc, 4.6 → 42 V dc
- RS Stock No.:
- 755-3447
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSRN 1-2433SM
- ผู้ผลิต / Manufacturer:
- TRACOPOWER
13 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB435.53
(exc. VAT)
THB466.02
(inc. VAT)
| Units | Per unit |
| 1 - 2 | THB435.53 |
| 3 - 4 | THB424.64 |
| 5 + | THB418.11 |
- RS Stock No.:
- 755-3447
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSRN 1-2433SM
- ผู้ผลิต / Manufacturer:
- TRACOPOWER
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
รายละเอียดสินค้า / Product Details

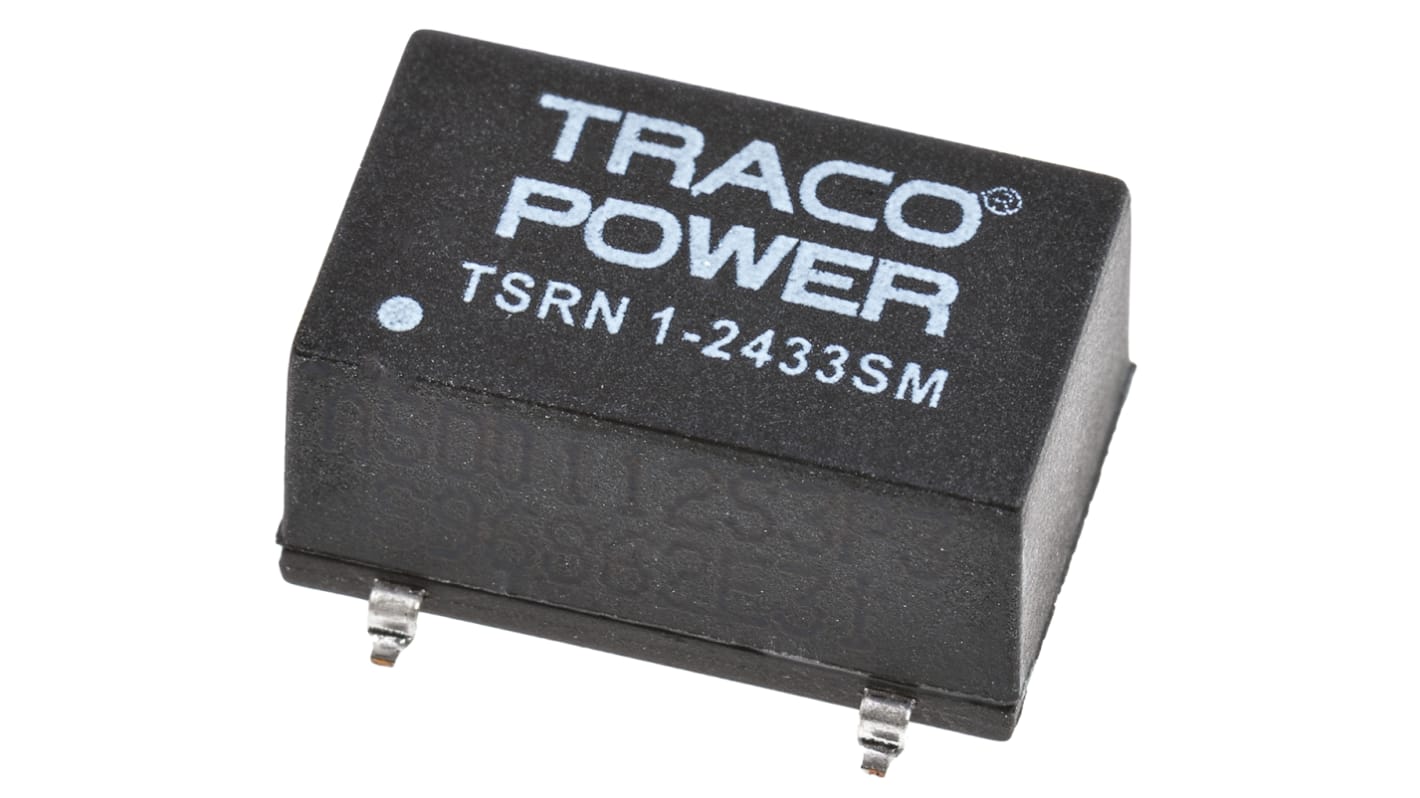

Traco Power Switching Regulator, SMD-10 Format, Level 1 Moisture Sensitivity - TSRN-1SM Series - TSRN 1-2433SM
Efficiently step down direct current with this switching regulator from Traco Power. It's a handy option for turning inputs between 4.6 and 42V DC into ±3.3V DC outputs needed to energise your low-powered machinery. Thanks to an efficiency rating of 88%, you can trust it converts power with minimal waste. A light weight of just 1.7g minimises strain on your setup, while neat dimensions of 15.2 (L) x 9.3 (W) x 7.6mm (D) ensure you can fit this little gadget into busy systems.
Features & Benefits
• Mean time between failures of 14 million hours for dependable long-term performance
• ±0.2% line regulation and ±0.6% load regulation mean you get a consistent power supply
• UL 94-V0-rated housing self-extinguishes within 10 seconds in the event of a fire
• Remote on/off function for convenient long-distance control
• ±0.2% line regulation and ±0.6% load regulation mean you get a consistent power supply
• UL 94-V0-rated housing self-extinguishes within 10 seconds in the event of a fire
• Remote on/off function for convenient long-distance control
Applications
• Industrial automation
• Textile manufacture
• Process control
• Textile manufacture
• Process control
Does this device perform reliably in harsh industrial conditions?
Yes. This switching regulator gets on with its job in a temperature range between -40°C and +85°C, so it's ideal for use in challenging settings.
Do I need to fit a heatsink with this switching regulator?
As it produces minimal waste heat, it's able to stay cool through natural convection, so there's no need for a heatsink.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Output Voltage | ±3.3V dc |
| Output Current | 1 A, 600 mA |
| Input Voltage | 4.6 → 32 V dc, 4.6 → 42 V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package | SMD |
| Efficiency | 77%, 80% |
| Ripple And Noise | 50mV Pk-Pk |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Series | TSRN 1SM |
| Line Regulation | ±0.2% |
| Depth | 7.2mm |
| Switching Frequency Range | 580kHz |
| MTBF | 6000000h |
| Load Regulation | ±0.6% |
| Special Features | 3-Years Warranty |
| Maximum Input Current | 3mA |
| Protection Features | Continuous Short Circuit Protection |
| Length | 15.2mm |
| Output Voltage Adjustment Range | 1.5 → 5.5V dc |
| Weight | 1.7kg |
| Width | 9.3mm |
